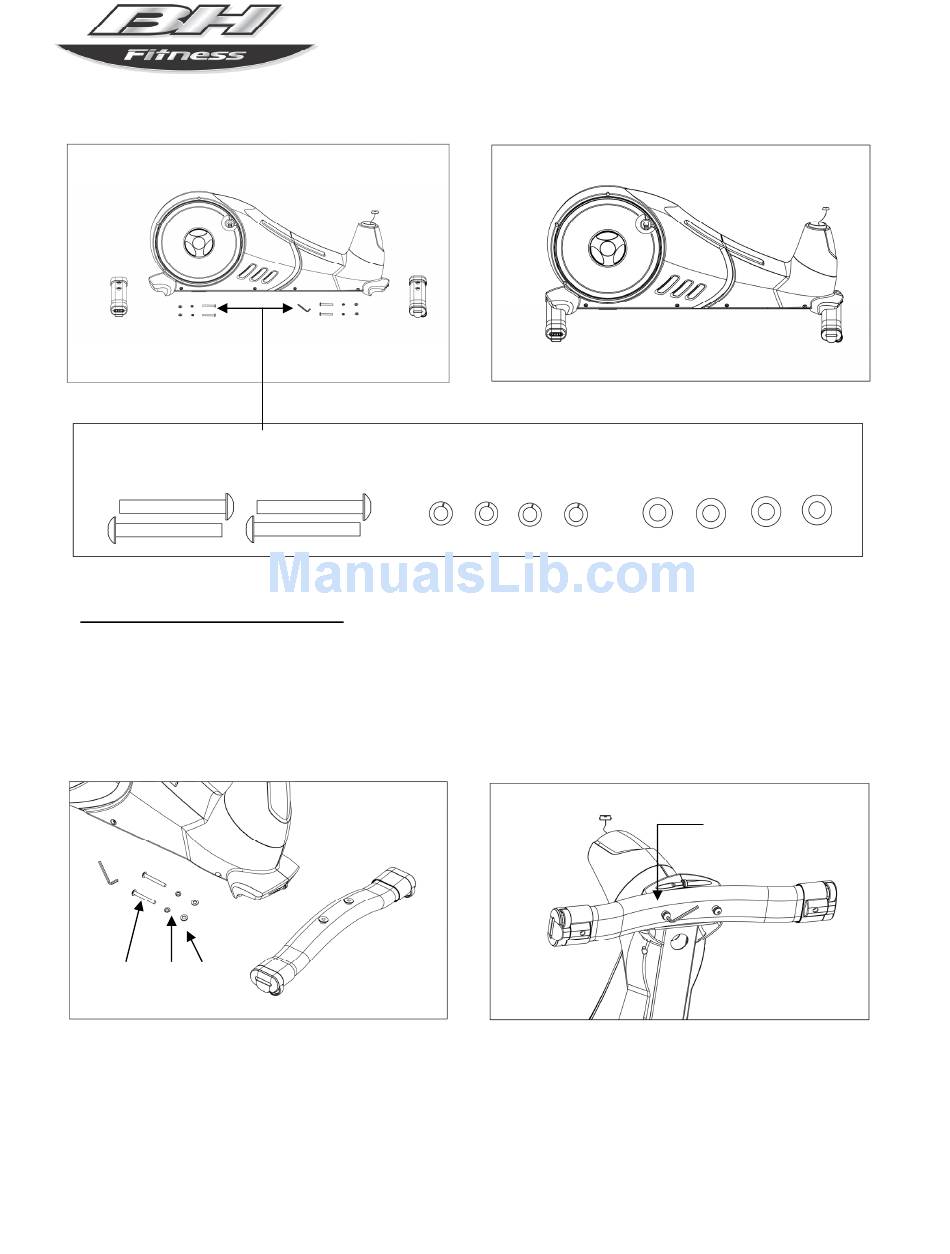

2. Assemble the Stabilizer
Assembly Parts
(146) Allen Bolt M8x60 -4PCS
Assemble the Front Stabilizer
Lift the Frame (1) up onto packaging foam or an equivalent support.
Step A-B: Assemble the front stabilizer (106) to the frame (1) with washer (147), spring washer
(139) and screw (146) according to the drawing. Use hex wrench (155) to tighten the screw.
(155)
(146,139,147)
ASSEMBLY
(139) Spring Washer M8x2.0t
Nickel –plated - 4PCS
Step A
(1)
(106)
Finished
(147) Washer∮18x∮9x2.0t
- 4PCS
Step B
(106)
5
X1 Elliptical
(146,139,147)
