BH FITNESS X1 ELLIPTICAL Owner's Manual page 11

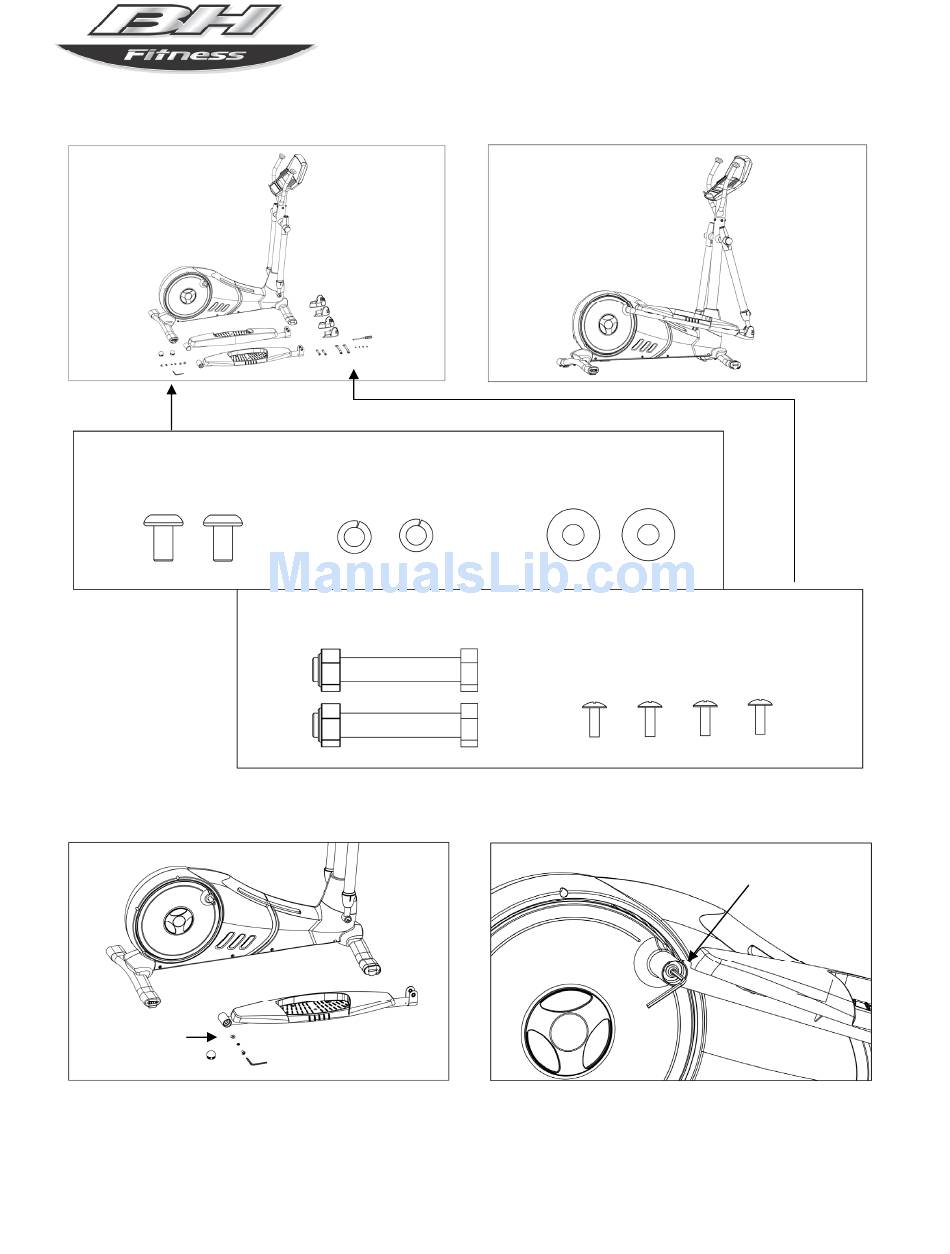

6. Assemble the Pedals
Assembly
(143)Truss Hex Screw
M8x15-2PCS
Step A-B: Secure the right pedal (57) and frame (1) with washer (144), spring washer (67)
and screw (143). Tighten the screws (143) with hex wrench (151).
Step A
(143,67,144)
(131)
ASSEMBLY
(67)Spring Washer M8x2.0t
Black-2PCS
(141)Allen Bolt M10x60-2PCS
(142)Nylon Nut M10 -2PCS
(1)
(57)
(151)
Finished
(144)Washer ∮22x∮9x2.0t
-2PCS
(55)Truss Philips Screw M4x12 -4PCS
Step B (1)
(151)
10
X1 Elliptical
(143, 67, 144)
