BH FITNESS X1 ELLIPTICAL Owner's Manual page 12

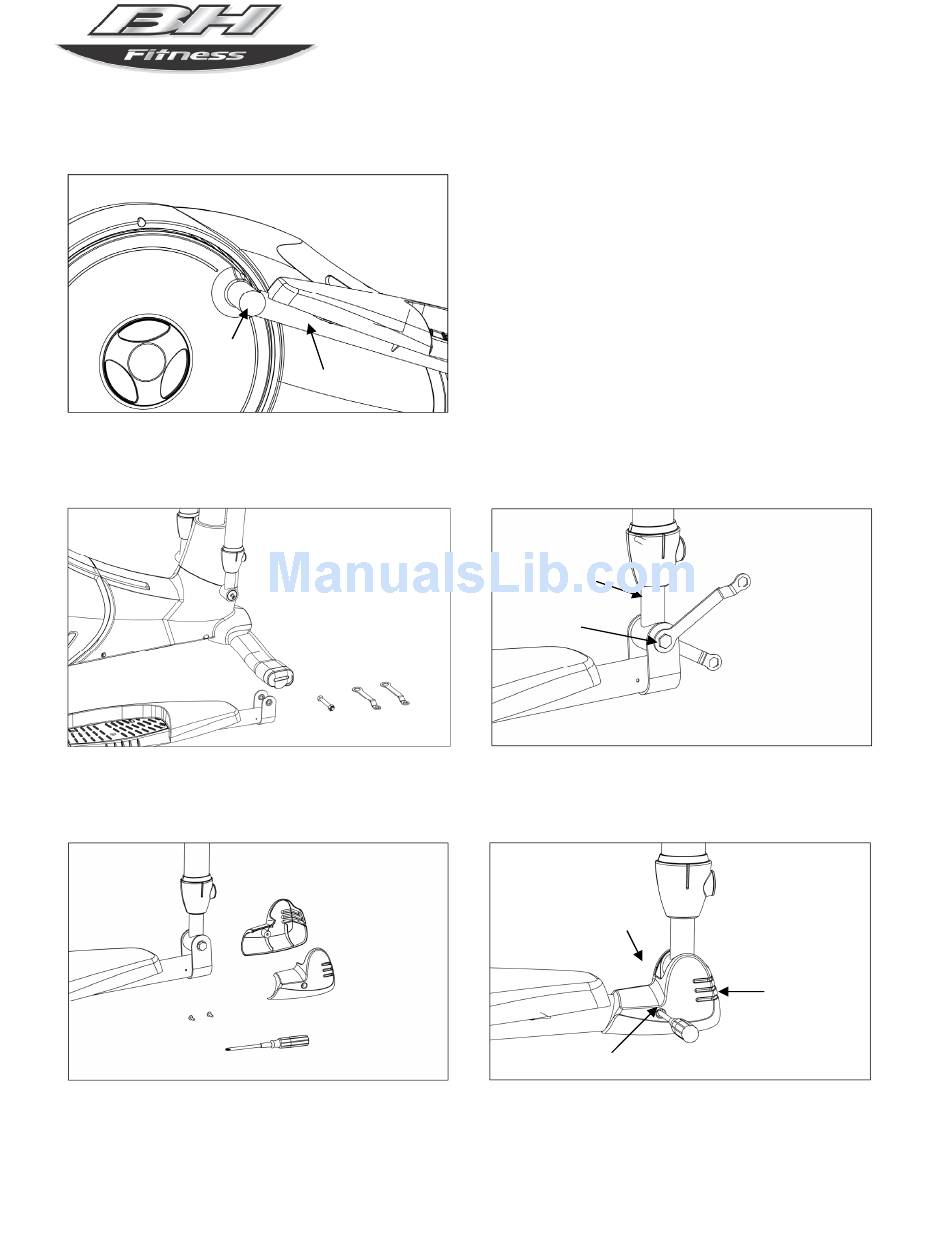

Step C: Insert the tube end (131) into the right pedal (57).
(131)
Step D-E: Bolt (141) is positioned on the outboard side. Nut (142) is positioned on the inboard
side. Secure the right pedal (57) and rocker flex part (83) with bolt (141) and nylon nut (142).
Use 2 lug open spanners (150) to tighten bolt (141) and nylon nut (142) at the same time.
Step D
(57)
Step F-G: Secure the pedal cover (A) (123), pedal cover (B) (124) and right pedal (57) with
screw (55) and tighten screw (55) with screwdriver (149).
Step F
(57)
(55)
Step H: Repeat Step A –G to assemble left pedal (56).
ASSEMBLY
Step C
(57)
(150)
(141,142)
(124)
(123)
(149)
Step E
(83)
(141,142)
(57)
Step G
(124)
(57)
(55)
11
X1 Elliptical
(150)
(150)
(123)
(149)
