Connector and Header Locations

A. Intrusion Header
B. PCI (32bit/33MHz) Slot 1
C. PCI (32bit/33MHz) Slot 2
D. PCI Express* x4 (x1 Lane)
Slot 3
E. PCI Express* x8 (x4 Lane)
Slot 4
F. PCI-X (64bit/100MHz) Slot 5 -
LX version only
G. PCI Express* x8 (x8 Lane)
Slot 6 - LC version only; Riser
Card Slot - LX version only
H. Battery
I. Processor Socket
J. NIC1 and USB1-2
K. NIC2
L. Serial A and Video Port
M. PS2 Stacked Mouse/Keyboard Z. SysFan4
4 Intel
A B C D E
MM
LL
KK
JJ
II
HH
GG FF EE

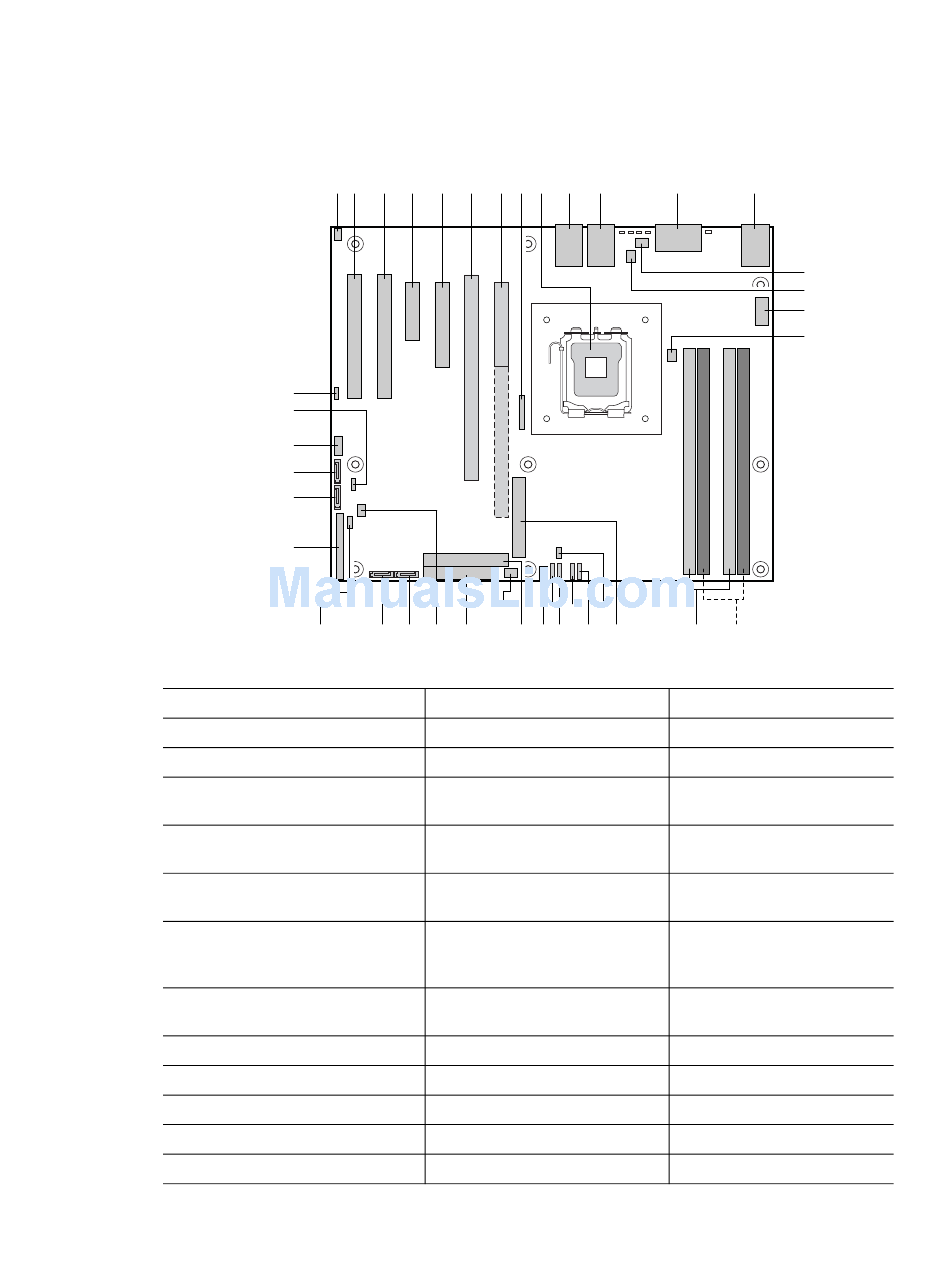

Figure 2. Server Board Connector and Component Locations

®
Server Board SE7230NH1-E and Intel
F G H I J K
BB Y W U
DD CC AA Z X V
N. SysFan1
O. SysFan2
P. 2x4 Processor Power
Q. Processor Fan
R. Memory Bank 2
S. Memory Bank 1
T. Main Power
U. Hardware Management
Controller
V. SysFan8 - LX version only
W. SysFan7 - LX version only
X. SysFan6 - LX version only
Y. SysFan5 - LX version only
®
Server Platform SR1475NH1-E User's Guide
L M
T S R
TP01781
AA.PATA IDE Connector
BB.SysFan3
CC.Floppy Connector
DD.SCSI LED Connector
EE.SATA Port 3
FF.SATA Port 2
GG.Clear CMOS Jumper
HH.Front Panel Connector
II. SATA Port 1
JJ.SATA Port 0
KK.External USB Connector
LL.CMOS Config Jumper
MM.HSBP Connector
N
O
P
Q
