Figure 13. Removing The Battery - Intel SR1475NH1 - Server Platform - 0 MB RAM User Manual

1. Observe the safety and ESD precautions in
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord from the server.
4. Remove the server's cover and locate the battery. See the documentation that came
with your server chassis for instructions on removing the server's cover.
5. Lift the battery retention mechanism (see
6. Remove the battery from its socket.
7. Dispose of the battery according to local ordinance.
8. Remove the new lithium battery from its package, and, being careful to observe the
correct polarity, insert it in the battery socket.
9. Close the chassis.
10. Run Setup to restore the configuration settings to the RTC.
22 Intel

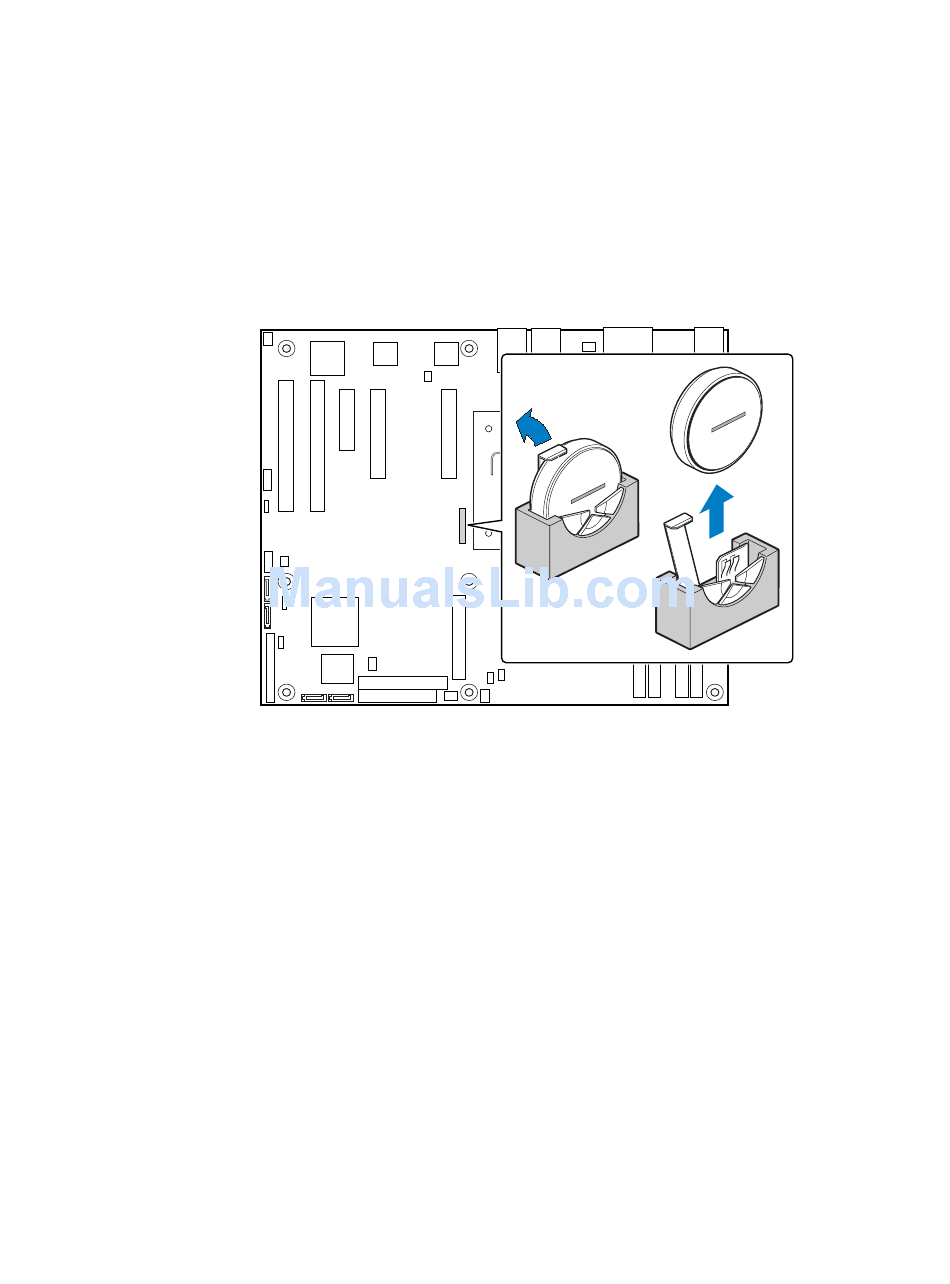

Figure 13. Removing the Battery

®
Server Board SE7230NH1-E and Intel
"Safety Information".
Figure 13).
®
Server Platform SR1475NH1-E User's Guide
TP01782
