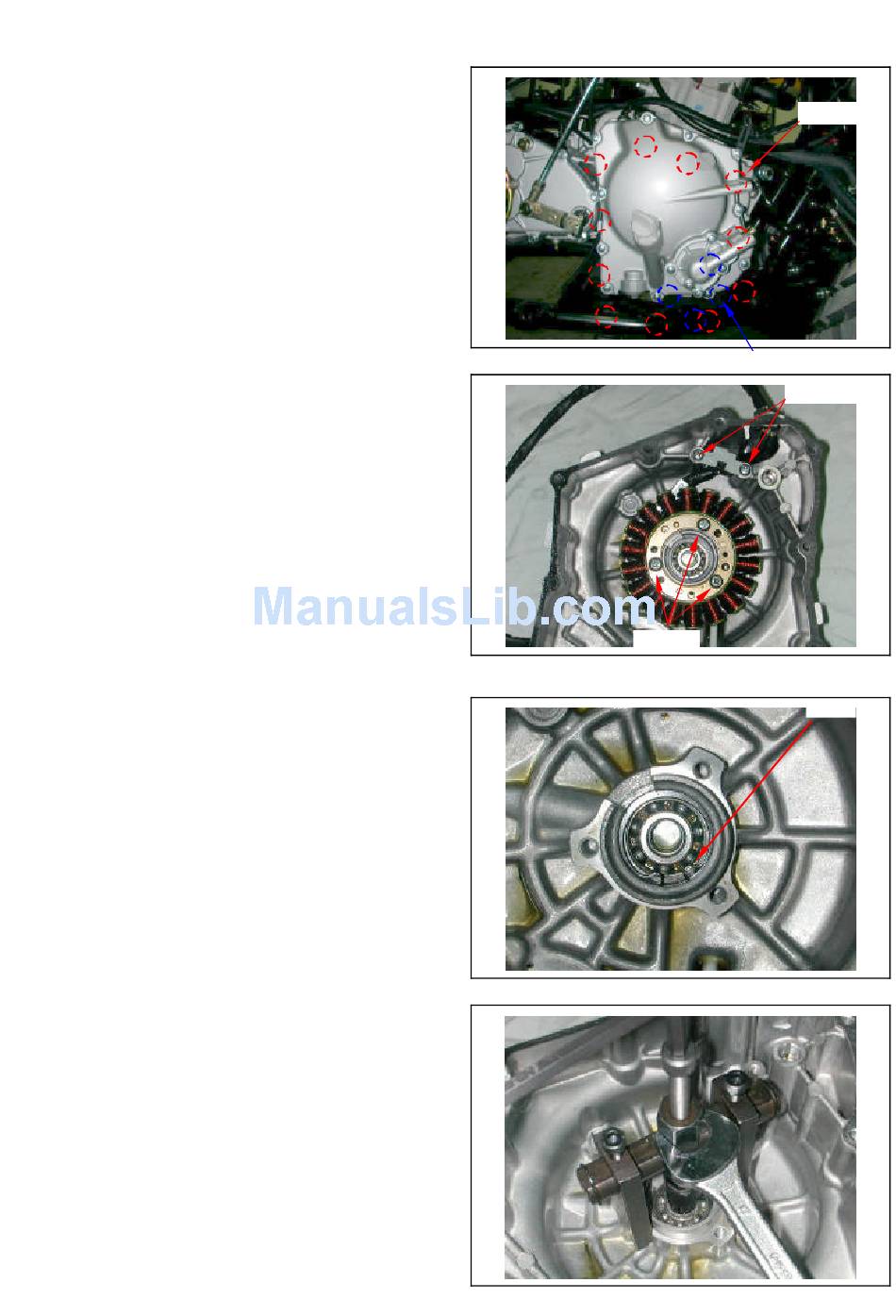

10-3 Right Crankcase Cover Removal
Remove left
footrest.
11 bolts
Drain out the engine oil and coolant, and then
remove coolant hoses.
Remove water pump cover (4 bolts).
Remove 11 bolts from the right crankcase cover.
Remove the right crankcase cover.
Remove dowel pin and gasket.
Water pump cover bolts
10-4 A.C.G. Set Removal
2 screws
Remove 2 mounted screw s from pulse generator
and then remove it.
Remove 3 screws from right crankcase cover and
then remove generator coil set.
3 screws
10-5 Right Cover Bearing
Inspection
Cir clip
Rotate the bearing with finger to check if the
bearing rotation is in smooth and silent.
Check if the bearing outer parts are closed and
fixed. Replace it if necessary.
Remove the cir clip, and then remove bearing.
Special tool:
Inner bearing puller
