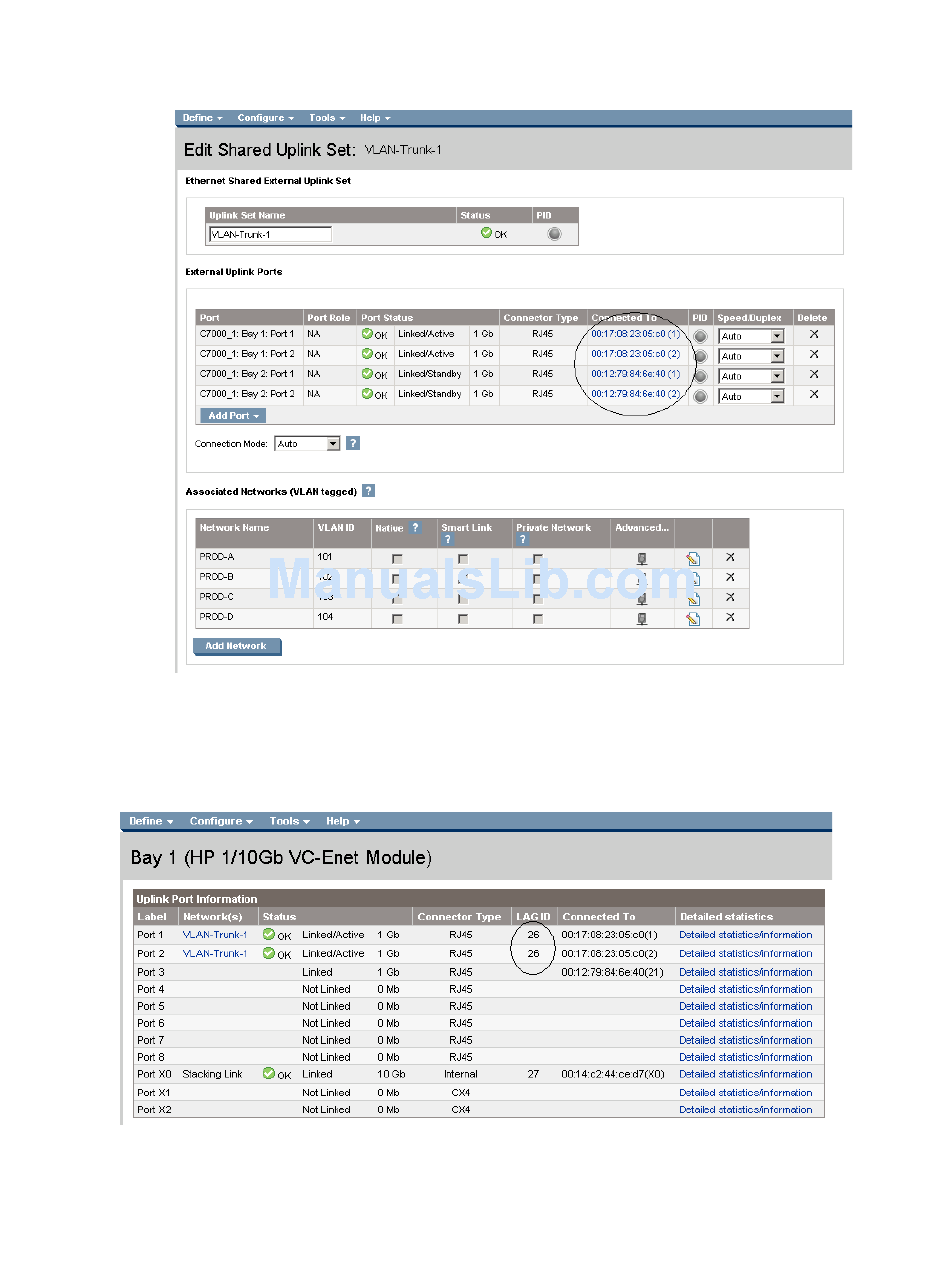

Figure 1-58 Define Shared Uplink Set (VLAN-Trunk-1).
Note: The Port Status and Connected to information. If the connected switch supports LLDP, the connected to
information should be displayed as below
Figure 1-59 Link aggregation confirmed – Bay 1.
Note: All connections within an active/active LACP group will have the same LAG ID. To view this, go to the
Interconnect bay and view Uplink Port Information. If you are having troubles establishing an active/active
connection, confirm the LAG ID
Scenario 1:5 – VLAN Tagging (802.1Q) with a Shared Uplink Set (SUS) with Link Aggregation using LACP (802.3ad) –
VMware ESX 67
