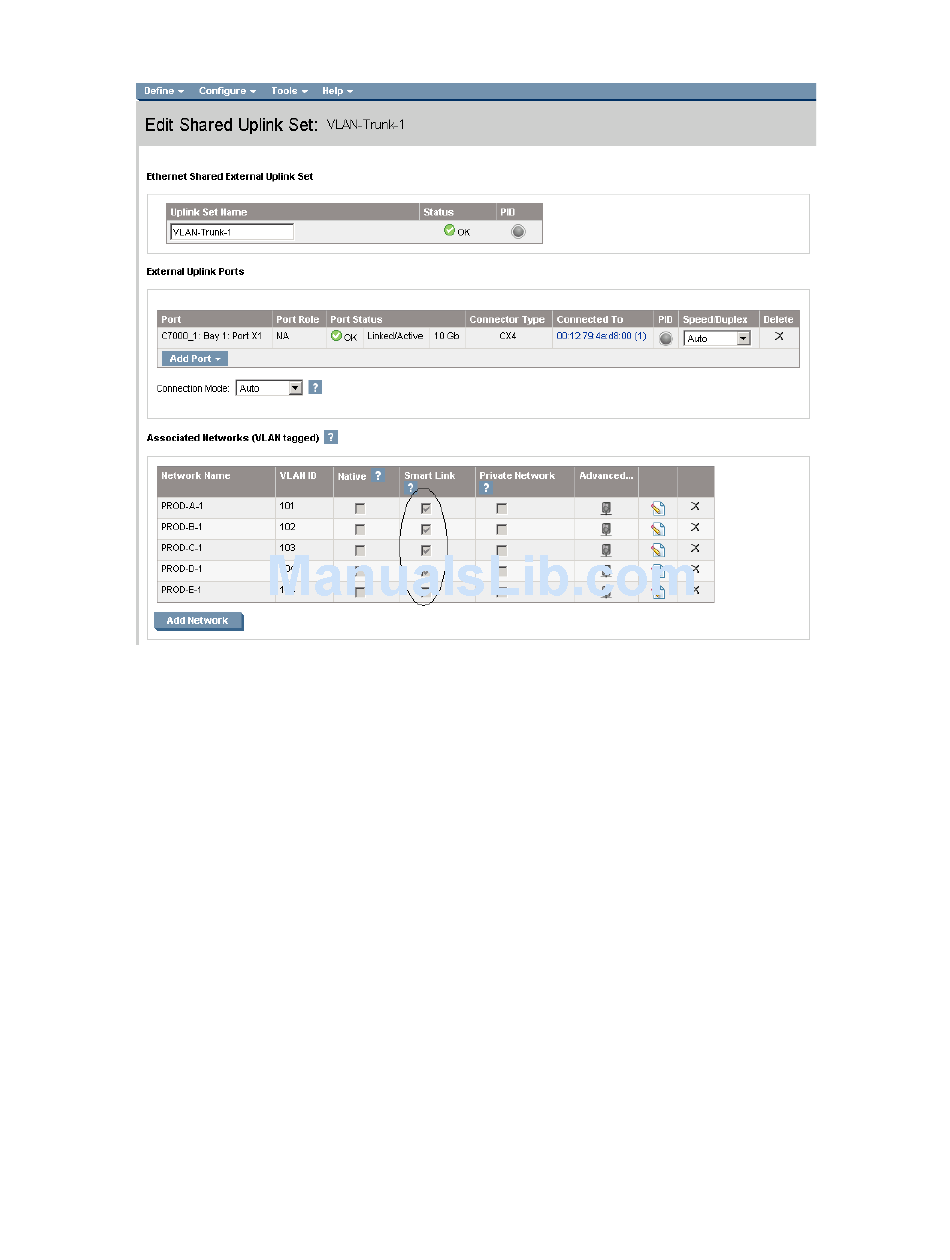

Figure 3-23 Define a Shared Uplink Set (VLAN-Trunk-1) and add VLANs.
Note: The "Connected to" field in the graphic above displays the MAC address and port number of the
switch this uplink is connected to. This information is provided through LLDP discover and is not available
in all switch products. This information can be very helpful when determining which switches and ports
VC is connected to.
Scenario 3:2 - Flex-10 with Multi-Enclosure stacking - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) - VMware
ESX - (4 Enclosures) 193
