ESX 4 Networking Configuration Example
The following graphics show an ESX 4 server with two Flex-10 NICs configured as six NICs.

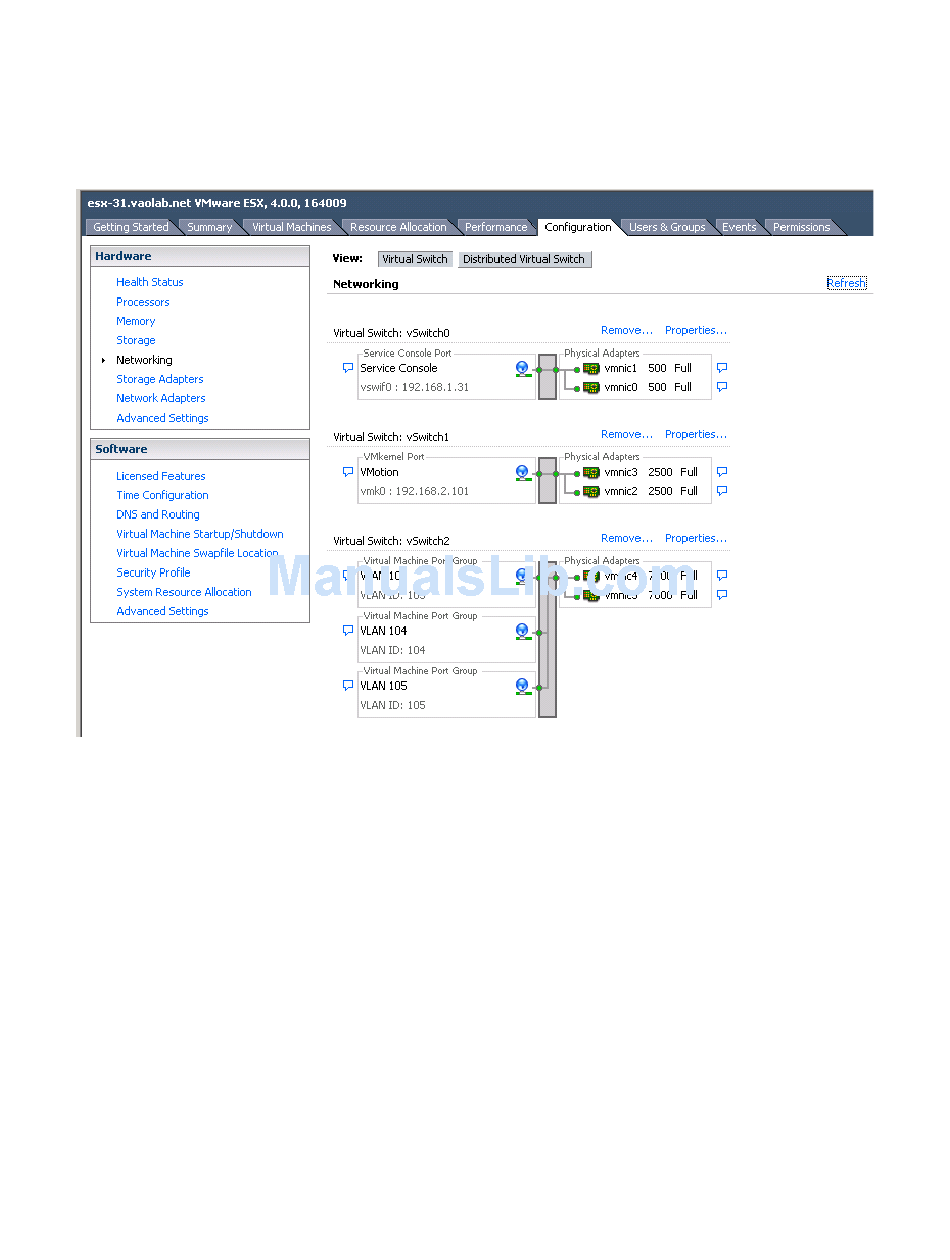

Figure 2-57 vSwitch Configuration the ESX Host with 6 NICs.
Scenario 2:3 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - ESX 4 152
