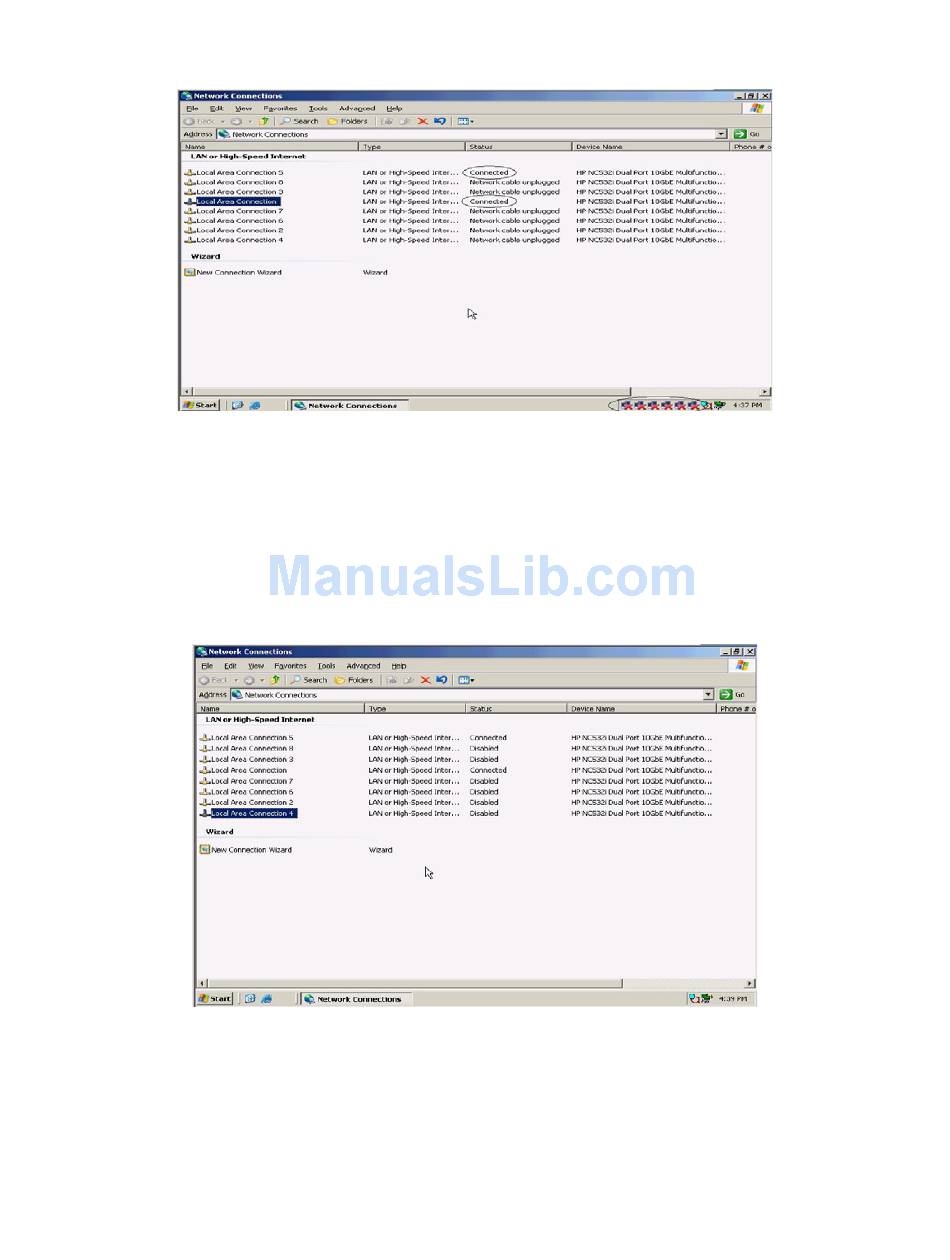

Figure 2-11 Windows 2003 Network Connections (2 Connections Active).
The NICs that are not configured within VC will appear with a red x as not connected. You can go into
Network Connections for the Windows 2003 server and Disable any NICs that are not currently in use.
Windows assigns the NICs as NIC 1-8, whereas four of the NICs will reside on LOM:1 and four on
LOM:2. You may need to refer to the VC server profile for the NIC MAC addresses to verify which NIC is
which.
Figure 2-12 Windows 2003 Extra Network Connections – Disabled.
Scenario 2:1 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - Windows
