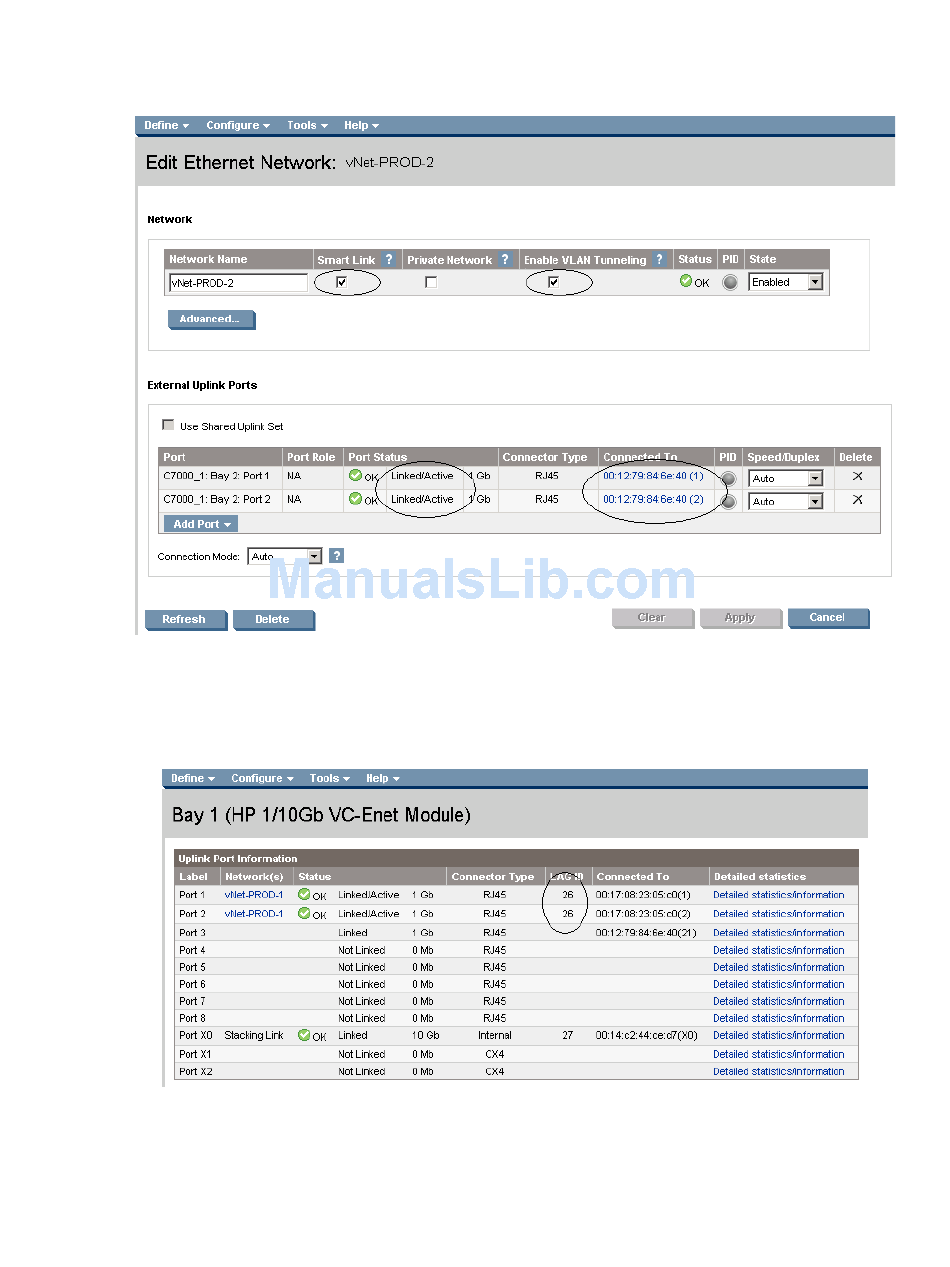

Figure 1-36 Adding uplinks to an existing vNet (vNet-PROD-2).
Note: The Port Status and Connected to information. If the connected switch supports LLDP, the connected to
information should be displayed as below
Figure 1-37 Link aggregation confirmed – Bay 1.
Note: All connections within an active/active LACP group will have the same LAG ID. To view this, go to the
Interconnect bay and view Uplink Port Information. If you are having troubles establishing an active/active
connection, confirm the LAG ID
Scenario 1:3 – Multiple Simple Networks Providing Redundancy and Link Aggregation 802.3ad (LACP) with VLAN Tunneling –
VMware ESX 46
