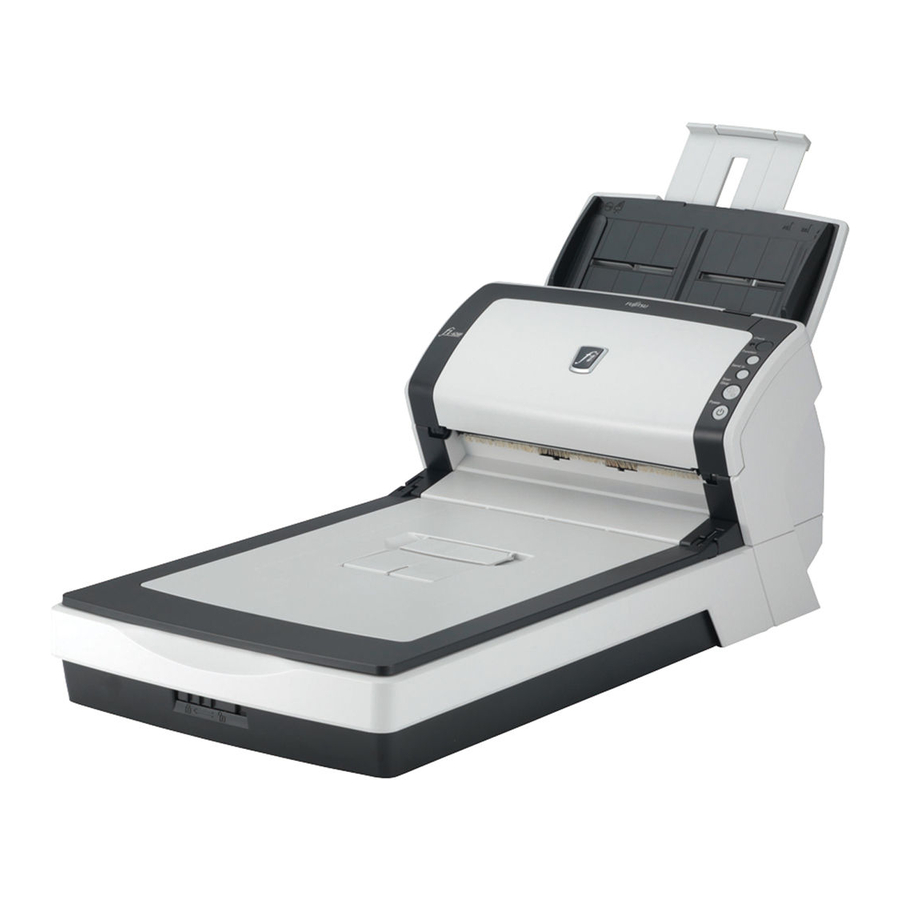

Fujitsu 6240 - fi - Document Scanner Operator's Manual

Image scanner
Hide thumbs Also See for 6240 - fi - Document Scanner:

Advertisement

Quick Links

fi-6140 / fi-6240 Image Scanner Operator's Guide
fi-6140 / fi-6240 Image Scanner Operator's Guide
fi-6140 / fi-6240 Image Scanner Operator's Guide P3PC-1922-01EN
file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/index.htm9/28/2007 2:37:34 PM
All Rights Reserved. Copyright 2007 © PFU LIMITED
TROUBLESHOOTING
CONTENTS MAP

Advertisement

Table of Contents
loading

Summary of Contents for Fujitsu 6240 - fi - Document Scanner

  • Page 1 fi-6140 / fi-6240 Image Scanner Operator's Guide fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP fi-6140 / fi-6240 Image Scanner Operator's Guide P3PC-1922-01EN All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/index.htm9/28/2007 2:37:34 PM...
  • Page 2 INTRODUCTION fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP INTRODUCTION Thank you for purchasing the fi-6140 / fi-6240 Duplex Color Image Scanner. This document describes how to handle the fi-6140 / fi-6240 Duplex Color Image Scanner and basic operation methods. Before you start using the fi-6140 / fi-6240 Duplex Color Image Scanner be sure to thoroughly read this manual to ensure correct use.
  • Page 3: Fcc Warning

    Regulatory Information (1) fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Regulatory Information (1) FCC Declaration This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 Regulatory Information (2) fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Regulatory Information (2) International ENERGY STAR® Program As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. The International ENERGY STAR®...
  • Page 5 Trademarks fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Trademarks Trademarks Microsoft, and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. ISIS and QuickScan are trademarks or registered trademarks of EMC Corporation in the United States. Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.
  • Page 6 Liability fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Liability BEFORE USING THIS PRODUCT, PLEASE READ THIS MANUAL CAREFULLY. IF THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY CAN OCCUR TO USERS OR BYSTANDERS. Keep this manual in a safe place so that it can be easily referred to during use of this product. While all efforts have been made to ensure the accuracy of all information in this manual, PFU assumes no liability to any party for any damage caused by errors or omissions or by statements of any kind in this manual, its updates or supplements, whether such errors are omissions or statements resulting from negligence, accidents, or any other cause.
  • Page 7 Conventions (1) fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Conventions (1) Safety Precautions This manual describes important details for ensuring the safe and correct use of this product. Thoroughly read this manual before you start to use this product. In particular, be sure to read and fully understand the Safety Precautions described in this manual before you use this product.
  • Page 8 Conventions (1) ATTENTION NOTE for using Windows XP Service Pack 2 The Internet's security function may restrict displaying movies. In order to display the movies, allow to run the blocked active content. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/cReg/cReg03_02.htm (2 of 2)9/28/2007 2:37:59 PM...
  • Page 9: Screen Examples In This Manual

    About Maintenance The user must not perform repairs on this scanner. Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service provider to have repairs done on this product. All Rights Reserved. Copyright 2007 © PFU LIMITED...
  • Page 10 Safety Precautions (1) fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Safety Precautions (1) WARNING Do not damage the AC cable. A damaged AC cable may cause fire or electric shock. Do not place heavy objects on AC cables, or pull, bend, twist, heat, damage or modify AC cables.
  • Page 11 Safety Precautions (1) Do not install the device in locations that has oil smoke, steam, humidity, and dust. Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust. Doing so might cause a fire or electric shock. All Rights Reserved.
  • Page 12 Then, contact the store where you bought the scanner or an authorized FUJITSU scanner service provider. Pay particular attention to this warning in households where there are small children.
  • Page 13 Safety Precautions (3) fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Safety Precautions (3) CAUTION Do not install the scanner on unstable surfaces. Make sure that the scanner is installed on a flat, level surface and that none of its parts extend beyond the surface top, such as a desk or table.
  • Page 14 Safety Precautions (4) fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Safety Precautions (4) CAUTION Protect the scanner from static electricity. Install the scanner away from strong magnetic fields and other sources of electronic noise. Also, protect the scanner against any static electricity, which can cause the scanner to malfunction. Do not use aerosol sprays near the scanner.
  • Page 15 Chapter 1 NAMES AND FUNCTIONS OF PARTS fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Chapter 1 NAMES AND FUNCTIONS OF PARTS This chapter describes the scanner parts and their functions. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/01/c01.htm9/28/2007 2:38:01 PM...
  • Page 16 Make sure it contains all the parts listed in the package contents list that is included in the package box. If any parts are missing or defective, contact the dealer where you purchased the scanner or an authorized FUJITSU scanner service provider.
  • Page 17 1.2 Names and Functions of Parts fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 1.2 Names and Functions of Parts This section describes the scanner parts and their functions. Front Name Function Transports the document to the reading position (Automatic Document Feeder) automatically.
  • Page 18 1.2 Names and Functions of Parts Inside Name Function Document bed Place documents on the glass when scanning through the flatbed. Document holding Holds documents down on the document bed. Document cover Holds the documents loaded at the reading position when closed. HINT The document cover with a black document holding pad is optionally available.
  • Page 19: Removable Parts

    1.2 Names and Functions of Parts Name 1 Security Slot 2 EXT connector (for imprinter connection) [fi-6140 only] 3 SCSI connector 4 SCSI ID switch 5 USB connector 6 DC inlet Removable Parts Parts that can be removed from the scanner are displayed below. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/01/c01_02_01.htm (3 of 4)9/28/2007 2:38:03 PM...
  • Page 20 1.2 Names and Functions of Parts Name ADF paper chute Pick roller Brake roller Document cover [fi-6240 only] All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/01/c01_02_01.htm (4 of 4)9/28/2007 2:38:03 PM...
  • Page 21 Turns the scanner ON and OFF. Lights when the scanner is turned ON. About the settings on the launcher, refer to FUJITSU TWAIN32 scanner driver help, which is included in the "Setup CD-ROM," and Appendix 1 "Before Using the [Scan] or [Send to] Button."...
  • Page 22 If this alarm occurs, turn the power off and on again. If the alarm continues after turning the power on again, contact the dealer where you bought the scanner or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED...
  • Page 23 Windows XP. Also, when the FUJITSU TWAIN32 or FUJITSU ISIS scanner driver is updated the screens and operations noted in this chapter will differ slightly. In such case, refer to the relevant manuals or materials, which are to be supplied when updating the driver.
  • Page 24 2.1 Turning the Scanner ON fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 2.1 Turning the Scanner ON This section describes how to turn the scanner ON. The following shows the procedure for turning the scanner ON. 1. Press the Power button on the Operator Panel. The scanner is turned ON, and the Power LED on the Operator Panel lights in green.
  • Page 25 2.1 Turning the Scanner ON 2. From the [start] menu, select [Control Panel]. The [Control Panel] window appears. 3. Double-click the [Printer and Other Hardware] icon. The [Printer and Other Hardware] window appears. Double-click the [Scanners and Cameras] icon. The [Scanners and Cameras] window appears. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/02/c02_01_01.htm (2 of 5)9/28/2007 2:38:06 PM...
  • Page 26 2.1 Turning the Scanner ON 5. Select [fi-6140dj] or [fi-6240dj], and then select [Properties] from the menu. For Windows XP or Windows Server 2003; right-click [fi-6140dj] or [fi-6240dj], and then select [Properties]. For Windows 2000 or Windows Vista; double-click the [fi-6140dj] or [fi-6240dj] icon. The properties dialogbox of fi-6140dj or fi-6240dj appears.
  • Page 27: Power Save Mode

    2.1 Turning the Scanner ON 7. Click the [Power Control] button. The [Power Control] window appears. 8. Enable [Power Control]. Select [Enable power switch] to power on/off the scanner by pressing the Power button. Select [Disable power switch] to power on/off the scanner by connecting/disconnecting the AC cable. 9.
  • Page 28 2.1 Turning the Scanner ON The Power Save mode keeps the scanner in a low-powered state after it has been turned ON. If no operation is performed on the scanner for 15 minutes, the scanner automatically switches to the Power Save mode. In the Power Save mode, the indication of the Function Number Display on the operator panel goes out, but the Power LED stays lit in green.
  • Page 29 2.2 Loading Documents on the ADF for Scanning fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 2.2 Loading Documents on the ADF for Scanning HINT Refer to Chapter "7 ADF AND PAPER SPECIFICATION" for information about the required document sizes and paper quality for ensuring correct operation when scanning documents from the ADF.
  • Page 30 2.2 Loading Documents on the ADF for Scanning HINT Pull out the paper chute extensions to support the document when necessary. Paper chute extensions ID cards can be loaded either in vertical or holizontal orientation. ATTENTION This scanner can scan ID cards through the Automatic Document Feeder with the following precautions.
  • Page 31 2.2 Loading Documents on the ADF for Scanning It is recommended that the front side of the card be placed face down in the Automatic Document Feeder. The card to be scanned should be within the ISO7810 compliance, type ID-1. Dimensions: 3.4 inch (height) x 2.1 inch (width)/ 86 mm x 54 mm Thickness: 0.056 inches / 1.4 mm or less...
  • Page 32 2.2 Loading Documents on the ADF for Scanning HINT Use of the stacker or stacker extension prevents document sheets from dropping after they are scanned. Use the stacker and stacker extension as shown in the figure below. When the document size to scan is A5 or longer in length When the document size to scan is A6 or longer in length and A5 or narrower in width...
  • Page 33: Loading Documents On Flatbed For Scanning

    2.3 Loading Documents on the Flatbed for Scanning [fi-6240 only] fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 2.3 Loading Documents on the Flatbed for Scanning [fi-6240 only] 1. Lift up the document cover. 2. Load the document on the document bed with the scanning face down and the top left corner aligned with the reference point ( ).
  • Page 34 2.4 Scanning Documents fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 2.4 Scanning Documents This section describes how to scan documents using this scanner. The basic steps for scanning documents are as follows: 1. Load the document on the scanner's ADF paper chute or Flatbed. For details on how to load documents, see Sections "2.2 Loading Documents on the ADF for Scanning"...
  • Page 35 2.4 Scanning Documents 4. In the application, invoke a scanner driver. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/02/c02_04_01.htm (2 of 3)9/28/2007 2:38:11 PM...
  • Page 36 2.4 Scanning Documents 5. In the driver setup dialog box, configure settings for scanning. 6. Scan the document. 7. Save the scanned document image files. HINT In this section, screenshots taken in ScandAll PRO are used as examples. Depending on the application you use, procedures and operations may differ from those examples herein.
  • Page 37: Fujitsu Twain 32 Scanner Driver

    To scan documents with the scanner, a scanner driver and application supported by the driver are prerequisites. This scanner is accompanied with two drivers; one is a TWAIN-compliant driver, FUJITSU TWAIN 32 Scanner Driver, and the other is an ISIS-compliant driver, FUJITSU ISIS Scanner Driver, and an application named ScandAlll PRO, which supports both the drivers FUJITSU TWAIN 32 and FUJITSU ISIS.
  • Page 38 Configure the FUJITSU TWAIN 32 Scanner Driver settings in the dialog box above. Major setting items are listed below. * For details on each function, refer to "FUJITSU TWAIN 32 Scanner Driver Help." Resolution You can specify the resolution for scanning images.
  • Page 39 Clicking this button opens the [FUJITSU TWAIN 32 Scanner Driver Help] window. The window also opens by pushing the [F1] key. [About] Button Clicking this button opens an information window about the FUJITSU TWAIN 32 Scanner Driver's version. [Option] Button You can set options in the dialog box below.
  • Page 40 Select this tab when setting cache mode, multifeed detection, blank page skipping, paper protection, etc. [Generic] Tab Select this tab to change the unit displayed in the Setting Window for the FUJITSU TWAIN 32 Scanner Driver. Select [mm], [inch], or [pixel].
  • Page 41 For details of each function, refer to the "FUJITSU TWAIN 32 Scanner Driver Help." FUJITSU ISIS Scanner Driver The FUJITSU ISIS Scanner Driver is a driver software used to scan documents with a scanner from an ISIS-compliant application. Usually, you configure settings for scanning in the setup dialog box of the scanner driver, which is invoked from an application.
  • Page 42 2.5 How to Use the Scanner Drivers Camera You can selects a side or sides to scan. The marked checkbox side is targeted for scanning. When you mark only the Front Image checkbox, simplex scanning is performed. When you mark both the Front Image and Back Image checkboxes, duplex scanning is performed.
  • Page 43 2.5 How to Use the Scanner Drivers Documents are scanned in binary (black-and-white) mode with Image Processing Software Option. When this setting is selected, the [Setup IPC] button below becomes selectable. (This button is visible only if Image Processing Software Option is installed on the computer.) Black &...
  • Page 44 2.5 How to Use the Scanner Drivers Cropping Select how to crop scanned document images to output. Fixed Scanned document images are output in a specified size. Detect Length The rear end of a scanned document is detected and scanning is performed for the original length.
  • Page 45 2.5 How to Use the Scanner Drivers You can select the page orientation (Portrait or Landscape). Page Size You can specify the paper size of documents to be scanned. Select a size from the drop-down list. Split Image You can split a scanned image into two. You can also rotate the split images by specifying the rotation angle. [Scan Area] Button Clicking this button displays the [Scan Area] dialog box.
  • Page 46 2.5 How to Use the Scanner Drivers Quick Set Some image-processing-related settings, which are commonly used, are readily available. Select a setting pattern, and you do not have to configure settings one by one. The following setting patterns are available (Selectable only when [Black and White] is selected under [Mode]): Normal documents This setting pattern is suitable for scanning business documents often...
  • Page 47 2.5 How to Use the Scanner Drivers Low, Mid, High Outlines of images are emphasized. Select a setting from Low, Mid, and High. Smoothing Jaggies are smoothed. Reverse Image Format You can output reversed images. Overscan You can set the overscan function. Documents are scanned in a paper size larger than the one specified in the [Paper Size] drop-down list.
  • Page 48: Multifeed Detection

    2.5 How to Use the Scanner Drivers Pre-picking is a function that prepares the next document for scanning, feeding it to the position at which the scanning starts beforehand. You can specify whether you want to enable Pre-picking or not from this drop-down list.
  • Page 49 2.5 How to Use the Scanner Drivers Pattern You can configure gamma corrections. The gamma patterns include: Binary (black and white) specified Normal, Soft, Sharp, Custom, Download Grayscale/24-bit color specified Custom, Download Custom Properties You can specify custom properties (Gamma, Brightness, Contrast, Shadow, and Highlight) only when you select [Custom] as a Gamma pattern.
  • Page 50: Color Dropout

    2.5 How to Use the Scanner Drivers Color Dropout Any of three primary colors (red-green-blue) can be dropped out from document images. For example, when scanning text in black with the red frame, selecting red color scans only text in black. This setting is available only when Black and White or Grayscale setting is selected.
  • Page 51 2.5 How to Use the Scanner Drivers JPEG Quality You can specify compression levels and image quality for scanning in Color or Grayscale mode. Sample Ratio You can specify one of the sample ratios, by which images are compressed, listed in the order of precedence from highest (listed first) to lowest as follows: YUV 4:4:4 <...
  • Page 52 2.5 How to Use the Scanner Drivers [ON] Checkbox Marking this checkbox enables the Imprinter function. Format Template Characters typed in this box are printed on documents. You can enter the following characters (up to 43 characters): Alphabet A to Z, a to z (single-width) Numerics 0, 1 to 9 (single-width) Symbols...
  • Page 53 2.5 How to Use the Scanner Drivers Format Type in the initial value. Delimiter Select a delimiter, which is a character that identifies the beginning or the end of a character string. Counter You can specify the rule to display the counter. Initial Value Set the initial value of the counter.
  • Page 54 2.5 How to Use the Scanner Drivers On this tab, you can view the information about the ISIS driver and the scanner connected to your computer. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/02/c02_05_01.htm (18 of 18)9/28/2007 2:38:14 PM...
  • Page 55 ScandAll PRO is software for scanning images, which is in conformity with both TWAN/ISIS standards. Using the FUJITSU TWAIN 32 or FUJITSU ISIS scanner driver together with ScandAll PRO allows you to create document images. The following explains how to scan documents with the scanner through ScandAll PRO.
  • Page 56 This scanner comes with two drivers, FUJITSU TWAIN 32 Scanner Driver and FUJITSU ISIS Scanner Driver, which you can use with this scanner. The following explains how to select a scanner driver with ScandAll PRO (how to switch between the FUJITSU TWAIN and ISIS scanner drivers).
  • Page 57: Selecting A Scanner

    When the driver is FUJITSU TWAIN 32, select [FUJITSU fi-6140dj] or [FUJITSU fi-6240dj], and then click the [Select] button. When the driver is FUJITSU ISIS, select [Fujitsu fi-6140] or [Fujitsu fi-6240], and then click the [Select] button. FUJITSU TWAIN 32...
  • Page 58: How To Scan Documents

    2.6 How to Use ScandAll PRO For information about setting items you can configure, see Section "2.5 How to Use the Scanner Drivers." How to Scan Documents With ScandAll PRO, you can scan documents with a scanner, in either of two ways: Scan You have to configure settings, such as the file format, destination, and scanning parameters, every time you scan a document.
  • Page 59 2.6 How to Use ScandAll PRO 2. From the [Scan] menu, select [Scan Settings]. Or, select the [Scan Settings] button ( ) on the toolbar. The [Scan Settings] dialog box appears. 3. In the [Scan Settings] dialog box, configure various settings for saving scanned document images.
  • Page 60: File Format

    [Show TWAIN dialog before each batch scan process] Checkbox Marking this checkbox displays the setup dialog box at a scan when the TWAIN driver is used for scanning. (* When the FUJITSU ISIS Scanner Driver is used, this checkbox is not available.) 4. Click the [Scanner Setting] button.
  • Page 61 Drivers." FUJITSU TWAIN 32 FUJITSU ISIS 6. When you finished setting, click the [OK] button in the dialog box (FUJITSU TWAIN 32 Scanner Driver/ FUJITSU ISIS Scanner Driver). 0 You are returned to the [Scan Setting] dialog box. 7. Click the [Scan] button.
  • Page 62 2.6 How to Use ScandAll PRO HINT When you use the FUJITSU TWAIN 32 Scanner Driver, clicking the [Scan] button may display the scanner driver’s setup dialog box. If so, you can also change settings in the dialog box displayed.
  • Page 63 2.6 How to Use ScandAll PRO Batch Scan You can save various settings as profiles beforehand. Batch Scan allows you to scan documents by using those profiles. <Creating/Editing Profiles> 1. From the [Scan] menu, select [Batch Scan Settings]. Or, click the [Batch Scan Settings] button ( ) on the toolbar.
  • Page 64 2.6 How to Use ScandAll PRO - To create a new profile: Click the [Add] button. A new profile appears in the [Profile Editor] dialog box. (Go to step 3.) - To create a new profile based on an existing profile: Select a profile you want to use as the basis from the profile list, and then click the [Copy] button.
  • Page 65 2.6 How to Use ScandAll PRO [General] Tab You can type in a profile name and description, and select a profile type. [Scan] Tab You can configure settings for a scanner to use. Clicking the [Detail Scanner Settings] button displays the setup dialog box of the scanner driver. [File format and Name scheme] Tab You can specify various parameters for saving scanned document images.
  • Page 66 2.6 How to Use ScandAll PRO 3. Select a profile you want to use for scanning. 4. Click the [Scan] button. A document is scanned with the scanner, and the scanned document image is displayed on the ScandAll PRO window, and then the image is saved to file. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/02/c02_06_01.htm (12 of 15)9/28/2007 2:38:17 PM...
  • Page 67 2.6 How to Use ScandAll PRO B: From the menu (Method 2) 1. Place the document on the scanner. For information about how to place documents, see Section "2.2 Loading Documents on the ADF for Scanning." 2. From the [Scan] menu, select [Batch Scan], and then select [a profile name you want to use].
  • Page 68 2.6 How to Use ScandAll PRO C: From the toolbar 1. Place the document on the scanner. For information about how to place documents, see Section "2.2 Loading Documents on the ADF for Scanning." 2. From the [Select the Batch File] drop-down list on the toolbar, select a profile to use. 3.
  • Page 69 2.6 How to Use ScandAll PRO All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/02/c02_06_01.htm (15 of 15)9/28/2007 2:38:17 PM...
  • Page 70 The screens and operations provided herein may be different from actual ones if the operating system you are using is not Windows XP. Please take note that, when the FUJITSU TWAIN 32 scanner driver is updated, the screens and operations herein may also be slightly different.
  • Page 71 [Fujitsu ScandAll PRO] in the order presented. Then, ScandAll PRO starts up. 3. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32. For information about how to display the scanner driver’s setup dialog box, see Section "2.6 How to Use ScandAll PRO."...
  • Page 72 3.1 Scanning Both Sides of Documents 5. Click the [OK] button. Changes made on this dialog box are saved and the setup dialog box of FUJITSU TWAIN 32 closes. 6. From the ScandAll PRO window, perform a scan. For information about how to scan documents, see Section "2.6 How to Use ScandAll...
  • Page 73 3.2 Scanning Books [fi-6240 only] fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.2 Scanning Books [fi-6240 only] CAUTION Never look into the light source directly during scanning. 1. Open the document cover. 2. Remove the document cover as shown in the figure below. 3.
  • Page 74 6. Select [Flat Bed] under [Scan Type]. 7. Click the [OK] button. Changes made on this dialog box are saved and the setup dialog box of FUJITSU TWAIN 32 closes. 8. From the ScandAll PRO window, perform a scan. For information about how to scan documents, see Section "2.6 How to Use ScandAll...
  • Page 75 3.3 Scanning Large Documents with Flatbed [fi-6240 only] fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.3 Scanning Large Documents with Flatbed [fi-6240 only] 1. Open the document cover. 2. Remove the document cover as shown in the figure below. 3.
  • Page 76 6. Select [Flat Bed] under [Scan Type]. 7. Click the [OK] button. Changes made on this dialog box are saved and the setup dialog box of FUJITSU TWAIN 32 closes. 8. From the ScandAll PRO window, perform a scan. For information about how to scan documents, see Section "2.6 How to Use ScandAll...
  • Page 77 3.4 Scanning Documents of Different Widths fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.4 Scanning Documents of Different Widths When you scan documents of different widths at one time from the ADF, some documents that are small in paper size may be skewed or may not be fed into the scanner.
  • Page 78 [Fujitsu ScandAll PRO] in the order presented. Then, ScandAll PRO starts up. 3. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32. For information about how to display the scanner driver’s setup dialog box, see Section "2.6 How to Use ScandAll PRO."...
  • Page 79 5. Specify a document length, and then click the [OK] button. 6. Click the [OK] button. Changes made on this dialog box are saved and the setup dialog box of FUJITSU TWAIN 32 closes. 7. From the ScandAll PRO window, perform a scan.
  • Page 80 3.6 Saving Scanned Images in PDF Format fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.6 Saving Scanned Images in PDF Format To save scanned document images in PDF format, Adobe Acrobat must be installed on your computer. Install Adobe Acrobat from the provided Adobe Acrobat CD-ROM.
  • Page 81 2. Launch ScandAll PRO. From the [Start] menu, select [All Programs] [Fujitsu ScandAll PRO] [Fujitsu ScandAll PRO] in the order presented. Then, ScandAll PRO starts up. 3. In ScandAll PRO, select [PDF File], [SinglePage PDF File], [PDF/A file], or [SinglePage PDF/A file] to save scanned document images.
  • Page 82 3.6 Saving Scanned Images in PDF Format HINT [PDF file] and [SinglePage PDF file] are saved in format compatible with Adobe Acrobat 4.0 (PDF 1.3); [PDF/A file] and [SinglePage PDF/A file] are saved in PDF/A-lb format (format for an archive of digital documents based on PDF 1.4). [SinglePage PDF file] and [SinglePage PDF/A file] create one file per image;...
  • Page 83 3.6 Saving Scanned Images in PDF Format Compression Rate Move the slider bar to change the compression rate. The compression rate can be changed in five levels from 1 to 5. (By default, the compression rate is set to 3.) Moving the slider bar to right increases the compression rate.
  • Page 84 3.6 Saving Scanned Images in PDF Format [Convert into Searchable PDF] Checkbox The scanned document images are converted into searchable PDF files and saved. Language You can select a language to use for text recognition from the following: English, French, German, Italian, Japanese, Korean, Spanish, and Traditional/Simplified Chinese. [Make only the first page searchable] Checkbox When scanning a document containing multiple pages, you can make only the first page searchable.
  • Page 85 3.6 Saving Scanned Images in PDF Format You can set a "Document Open" password to PDF files. Up to 16 characters (single-width) can be used for a password. This checkbox is available only for Adobe PDF files. (For PDF/A files, passwords cannot be set.) If this checkbox is marked, the [Password] dialog box appears immediately after scanning.
  • Page 86 3.6 Saving Scanned Images in PDF Format The [Acrobat Scan] dialog box appears. 4. Select [FUJITSU fi-6140dj] or [FUJITSU fi-6240dj] from the [Scanner] drop-down list, and then click the [Scan] button. ATTENTION If scanned by using the default settings, images outputted may not be satisfactory. It is recommended the settings be changed, following the procedure below: 1.
  • Page 87 3.6 Saving Scanned Images in PDF Format 5. Configure settings such as the scan resolution and document size, and then click the [Scan] button. 6. To finish scanning, select [Scanning complete] and click the [OK] button. Scanned images are displayed. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_06_01.htm (8 of 11)9/28/2007 2:38:27 PM...
  • Page 88 3.6 Saving Scanned Images in PDF Format 7. From the [File] menu, select [Save As] or [Save] to save the scanned images. For details on the operation of Adobe Acrobat, refer to Adobe Acrobat Help. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_06_01.htm (9 of 11)9/28/2007 2:38:27 PM...
  • Page 89 3.6 Saving Scanned Images in PDF Format HINT If you save scanned document images as described above, the file size may increase greatly. To reduce the file size, save images following the procedure below. (It may take more time than you save as described above.) 1.
  • Page 90 3.6 Saving Scanned Images in PDF Format 6. Click the [OK] button. 7. Click the [OK] button in the [Print] dialog box. 8. Enter a file name, and then click the [Save] button in the [Save PDF File As] dialog box. All Rights Reserved.
  • Page 91 Example: When green is selected as a dropout color The following shows the procedure to change settings in the setup dialog box of the FUJITSU TWAIN 32 Scanner Driver. 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 92 3.7 Excluding a Color from Images (Dropout Color) The [Advance] dialog box appears. 3. Select a color you want to remove, from the [Dropout Color] drop-down list under [More]. For example, when you want to obtain only black text image from a document containing black text outlined in green, select [Green] from the list.
  • Page 93 3.7 Excluding a Color from Images (Dropout Color) 4. Click the [OK] button. You are returned to the [TWAIN Driver] dialog box. 5. In the [TWAIN Driver] dialog box, click the [OK] button. Changes made are saved and the [TWAIN Driver] dialog box closes. Continue scanning in ScandAll PRO.
  • Page 94 Configure the setting in the setup dialog box of the scanner driver. The following shows the procedure for skipping blank pages using the FUJITSU TWAIN 32 scanner driver: 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 95 3.8 Skipping Blank Pages 4. Mark the [Blank Page Skip] checkbox. If this checkbox is marked, cache mode is automatically changed to [Ram cache]. 5. With the slider control under [Blank Page Skip], specify the Blank Page Skip degree. <In Binary/Halftone mode> For white pages, use the [Black Dots Ratio] slider bar to specify a degree of accuracy needed to skip blank pages.
  • Page 96 3.8 Skipping Blank Pages 6. Click the [OK] button. You are returned to the [TWAIN Driver] dialog box. 7. In the [TWAIN Driver] dialog box, click the [OK] button. Changes made are saved and the [TWAIN Driver] dialog box closes. Continue scanning in ScandAll PRO.
  • Page 97 "8.4 Multifeed Detection." The following shows the procedure to change settings in the FUJITSU TWAIN 32 Scanner Driver. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32. For information about how to display the setup dialog box of the scanner driver, see Section "2.6 How to Use ScandAll...
  • Page 98 3.9 Detecting Multifeeds The following are how to detect multifeeds: None Multifeed detection is not performed. Check overlapping The scanner monitors the thickness of fed documents. The scanner detects a multifeed based on an increased thickness when multiple sheets are fed simultaneously.
  • Page 99 Change the setting in the setup dialog box of the scanner driver. The following shows the procedure to change settings in the setup dialog box of the FUJITSU TWAIN 32 Scanner Driver. 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 100 3.10 Correcting Skewed Documents HINT With the [Priority] slider control, you can change the accuracy of Automatic Page Size Detection. Move the slider to right to improve the detection accuracy. Note that the higher the accuracy, the longer the processing time, and the scanning speed becomes slower. When detecting paper sizes of index sheets or documents to which sticky notes or index tabs are attached, set the Priority to 2.
  • Page 101 3.10 Correcting Skewed Documents ATTENTION If one of the following conditions is met, the Automatic Page Size Detection may not work properly. Paper is 52g/m or less in weight Documents are not rectangular The margin of pages is filled with dark color 5.
  • Page 102 Example: When the color document is scanned with Multi Image Output being set The following shows the procedure to change settings in the setup dialog box of the FUJITSU TWAIN 32 Scanner Driver. 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 103 3.11 Outputting Multi-Images The [Multi Image] dialog box appears. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_11_01.htm (2 of 3)9/28/2007 2:38:34 PM...
  • Page 104 3.11 Outputting Multi-Images 3. Select [Multi Image Output] under [Output mode]. 4. Select the order to output multi-images under [Order (for Multi Image Output)]. Primary: Color/Grayscale - Secondary: Binary First, a Color or Grayscale image is output, and then a Black-and-White image. Primary: Binary - Secondary: Color/Grayscale First, a Black-and-White image is output, and then a Color or Grayscale image.
  • Page 105 Configure Multi Image settings using the scanner driver. The following shows the procedure to change settings in the setup dialog box of the FUJITSU TWAIN 32 Scanner Driver. 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 106 3.12 Color/Monochrome Auto Detection The [Multi Image] dialog box appears. 3. Select [Auto Color Detection] under [Output mode]. 4. Under [Select Current Image Setting], select a side, and then configure settings for each side in the [TWAIN Driver] dialog box. You need to configure both of the settings for [Color/Grayscale] detection and for [Binary] detection in advance.
  • Page 107 3.12 Color/Monochrome Auto Detection Continue scanning in ScandAll PRO. For information about how to scan documents, see Section "2.6 How to Use ScandAll PRO." All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_12_01.htm (3 of 3)9/28/2007 2:38:36 PM...
  • Page 108 Original0 0 0 0 0 0 0 0 0 Created image The following shows the procedure to change settings in the setup dialog box of the FUJITSU TWAIN 32 Scanner Driver. 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 109 3.13 Splitting a Page in Two Pages The [Option] dialog box appears. 3. Select the [Rotation] tab. 4. Mark the [Split Image] checkbox. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_13_01.htm (2 of 4)9/28/2007 2:38:37 PM...
  • Page 110 3.13 Splitting a Page in Two Pages HINT When a double-sided document is scanned in Duplex mode, the scanned document image is output according to the [Flip Side Rotation] setting in the order presented below: Book: Upper half Lower half Fanfold: Lower half Upper half ATTENTION...
  • Page 111 3.13 Splitting a Page in Two Pages 6. In the [TWAIN Driver] dialog box, click the [OK] button. Changes made are saved and the [TWAIN Driver] dialog box closes. Continue scanning in ScandAll PRO. For information about how to scan documents, see Section "2.6 How to Use ScandAll PRO."...
  • Page 112 Original0 0 0 0 0 0 0 0 0 Created image The following shows the procedure to change settings in the setup dialog box of the FUJITSU TWAIN 32 Scanner Driver. 1. From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
  • Page 113 3.14 Removing Punch Holes from Images The [Option] dialog box appears. 3. Select the [Rotation] tab. 4. Select [Automatic Page Size Detection] or [Black Background] from the [Automatic Size and Skew detection] drop-down list. If you select a setting other than [Automatic Page Size Detection] or [Black Background], [Hole Punch Removal] is not available.
  • Page 114 3.14 Removing Punch Holes from Images 5. Select [Fill with white] or [Background color] from the [Hole punch removal] drop-down list. Fill with white : Punch hole marks are filled with white Background color : Punch hole marks are filled with a color most used around the holes. When scanning a color document, select [Background color].
  • Page 115 3.14 Removing Punch Holes from Images Hole marks are not aligned along with the edge of the document. Hole mark sizes vary or hole marks appear at various intervals. (Punch hole marks at various intervals can be removed when [Priority] is set to 3.) The document is not rectangular.
  • Page 116 3.15 Scanning by Pressing the Scan Button on the Scanner fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.15 Scanning by Pressing the Scan Button on the Scanner With ScandAll PRO, you can perform batch scan at a press of the button, by assigning a Batch Scan profile to the [Scan] or [Send to] button.
  • Page 117 3.15 Scanning by Pressing the Scan Button on the Scanner The following events can be selected: Scan Button (Press the [Scan] button) Send to 1 to 9 (With a number from 1 to 9 displayed on the Function Number Display, press the [Send to] button) 6.
  • Page 118 To link another button, perform steps 3 to 7 again. 8. Launch ScandAll PRO. From the [Start] menu, select [All Programs] [Fujitsu ScandAll PRO] [Fujitsu ScandAll PRO], and then ScandAll PRO starts up. 9. From the [Tool] menu, select [Preferences].
  • Page 119 3.15 Scanning by Pressing the Scan Button on the Scanner 10. Select the [Event] tab. 11. Click the action of the Event you selected in step 5, and then select a profile from the list you want to use for scanning. HINT You have to create profiles beforehand.
  • Page 120 3.15 Scanning by Pressing the Scan Button on the Scanner HINT Use the [Send to] button, following the procedure below: 1. Press the [Function] button, and change a number displayed on the Function Number Display. 2. When the displayed number and the event number you have selected in step 5 (Send to 1 - 9) matches, stop pressing the [Function] button.
  • Page 121 Two sizes (A4 and Letter) of PDF files are provided as patch code sheets. Before using the job separation function with patch code sheets, select [Start] [All Programs] [Fujitsu ScandAll PRO] [Patch Code (A4)] or [Patch Code (Letter)], and then print a PDF file of either "Patch Code (A4)" or "Patch Code (Letter)" as many as you need.
  • Page 122 3.16 Splitting Documents by Patch Code HINT To suppress scanning the patch code sheet images, check the [Remove separation sheet] checkbox. In duplex scan mode, you can disable scanning of the rear side of the patch code sheet by selecting the [Delete the next page of a separation sheet] checkbox. 5.
  • Page 123 3.16 Splitting Documents by Patch Code 6. Specify the created batch profile, and then perform the batch scan. For how to perform the batch scan, see "Batch Scan" in Section "2.6 How to Use ScandAll PRO." HINT When storing each of the scanned documents, which are separated with patch-code sheets, in separate folders, change the settings in the [Name Rule] dialog box opened by clicking the [Name Rule] button on the [File format and Name scheme] tab in the [Profile Editor] dialog box.
  • Page 124 3.16 Splitting Documents by Patch Code The created folder is named with the title of the document counter and is used to store the scanned data. Example of storing data in folders: All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_16_01.htm (4 of 4)9/28/2007 2:39:14 PM...
  • Page 125 3.17 Scanning Using Barcodes fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.17 Scanning Using Barcodes ScandAll PRO supports a job separation function with barcode-printed sheets (hereinafter reffered to as the "barcode"). The barcode-based job separation function can divide multiple pages of scanned images into pre-determined unit and save them to different folders separetely without interruption.
  • Page 126 3.17 Scanning Using Barcodes The procedure is described below. 1. Create a new batch profile on ScandAll PRO, and open the [Profile Editor] window. For how to create a profile, see "Batch Scan" in Section "2.6 How to Use ScandAll PRO."...
  • Page 127 3.17 Scanning Using Barcodes HINT To suppress scanning the patch code sheet images, check the [Remove separation sheet] checkbox. In duplex scan mode, you can disable scanning of the rear side of the patch code sheet by selecting the [Delete the next page of a separation sheet] checkbox. 4.
  • Page 128 3.17 Scanning Using Barcodes 6. Specify the created batch profile, and then perform the batch scan. For how to perform the batch scan, see "Batch Scan" in Section "2.6 How to Use ScandAll PRO." HINT When storing each of the scanned documents separated with barcode-printed sheets in separate folders, and naming the folders with barcode recognition result strings, change the settings in the [Name Rule] dialog box opened by clicking the [Name Rule] button on the [File format and Name scheme] tab.
  • Page 129 3.17 Scanning Using Barcodes The created folder is named with the barcode recognition character string and is used to store the scanned data. Example of storing data in folders: file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_17_01.htm (5 of 6)9/28/2007 2:39:16 PM...
  • Page 130 3.18 Not Detecting Multifeed for Fixed Format fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 3.18 Not Detecting Multifeed for Fixed Format When sheets with glued photographs or sticky notes are scanned, the scanner can accidentally detect a multifeed error, and scanning is interrupted.
  • Page 131 3.18 Not Detecting Multifeed for Fixed Format Multifeed settings in the Software Operation Panel or driver. (Default) Automode 1 When a Multifeed error Use this mode when Pages scanned before (Bypass by occurs, press [Send to] you scan many sheets errors are sent to combination of length and to eject sheet in the...
  • Page 132 3.18 Not Detecting Multifeed for Fixed Format are checked for Multifeed errors and then the scanner bypasses Multifeed, if the scanned overlap pattern is the same or shorter than the already recorded pattern. How to Configure Settings with Software Operation Panel 1.
  • Page 133 [ISIS driver] 0 Mark the [On] checkbox under [Multifeed Recovery] and set [Auto-cancel Timer] to 0 or any value (minutes) on the [Paper Handling] tab of the [Properties for Fujitsu fi-6140...] dialog box. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/03/c03_18_01.htm (4 of 7)9/28/2007 2:39:17 PM...
  • Page 134 3.18 Not Detecting Multifeed for Fixed Format Auto-cancel Timer: Scanning is not restarted for the set period of time (minutes) after a multifeed error. If scanning is not started after the set minutes, the application is notified of the error by the driver. Note that if the Auto- cancel Timer is set to 0, the application will never be notified of the error.
  • Page 135 3.18 Not Detecting Multifeed for Fixed Format 1. After a multifeed error, press the [Send to] button to eject sheets from the transport path, or open the cover and remove sheets from the transport path. Return the ejected or removed sheets onto the ADF paper chute.
  • Page 136 3.18 Not Detecting Multifeed for Fixed Format Note 2: The remembered overlap patterns can be deleted from memory by pressing the [Function] button for 2 seconds or longer while the function number is blinking. After all overlap patterns are deleted, the display indicates "o".
  • Page 137 Chapter 4 DAILY CARE fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Chapter 4 DAILY CARE This chapter describes how to clean the scanner. WARNING When operating the scanner, the ADF's glass becomes very hot. Before you clean inside the scanner, turn off its power and unplug the AC adapter from the outlet.
  • Page 138: Cleaning Materials

    24 sheets per pack (*1)(*2) Soft, dry cloth Commercially available. *1: For details on Cleaner F1, consult the agent where you bought your scanner or an authorized FUJITSU service provider. *2: Pre-moistened with Cleaner F1, Cleaning Wipes are used instead of moistened cloths. HINT It may take long before the cleaner vaporizes if a large quantity is used.
  • Page 139 4.1 Cleaning Materials and Locations Requiring Cleaning Location Standard Cleaning Cycle Brake roller Clean every 5,000 scanned sheets. Pick roller Feed roller Plastic roller Eject roller Glass Ultrasonic sensor ATTENTION The scanner must be cleaned more frequently when the following documents are used: Documents of coated paper Documents with printed text or graphics almost covering the entire surface Chemically treated documents such as carbonless paper...
  • Page 140 4.2 Cleaning the Flatbed [fi-6240 only] fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 4.2 Cleaning the Flatbed [fi-6240 only] 1. Open the document cover. 2. Clean the following locations using a soft cloth moistened with Cleaner F1. Plastic cover Document bed ATTENTION...
  • Page 141 4.3 Cleaning the ADF fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 4.3 Cleaning the ADF As a Guideline, clean the ADF every 5,000 scanned sheets. Note that this guideline varies according to the type of documents you scan. For example, it may be necessary to clean the ADF more frequently if documents are scanned when the toner is not sufficiently fixed on the printout.
  • Page 142 4.3 Cleaning the ADF Item Brake rollers (x 2) Feed rollers (x 2) Eject rollers (x 2) Glasses (x 2) Pick rollers (x 2) Plastic rollers (x 4) Ultrasonic sensors (x 2) ATTENTION To avoid damaging the document sensors, take care that the cloth does not get hooked into them when cleaning the inside of the ADF.
  • Page 143: Brake Roller

    4.3 Cleaning the ADF Brake roller Lightly clean the Brake roller along the grooves on the roller taking care not to scratch the roller surface. When cleaning the Brake roller, remove it from the scanner. For how to remove the Brake Roller, see Section "5.3 Replacing the Brake Rollers."...
  • Page 144 4.3 Cleaning the ADF Feed roller/Eject roller 1) Open the ADF when the indication of the Function Number display is not "P" or "0". If you open the ADF when the indication of the Function Number display is "P" or "0", the Feed rollers/Eject rollers will not rotate even you perform the operation of step 2 below.
  • Page 145 4.3 Cleaning the ADF 3. Press down on the center of the ADF to return it to its original position until the ADF button locks. Press center of ADF. ATTENTION When the ADF has returned to its original position, make sure that it is completely closed. Feeding errors may occur if the ADF is not closed completely.
  • Page 146 The screens and operations may differ slightly if the OS that you are using is other than Windows XP. Also, when the FUJITSU TWAIN32 or FUJITSU ISIS scanner driver is updated the screens and operations noted in this chapter will differ slightly.
  • Page 147 ATTENTION Use only the specified consumables to avoid document feeding trouble. To purchase the consumables, contact the FUJITSU scanner dealer where you purchased the scanner or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED...
  • Page 148 5.2 How to Check and Reset the Consumables Counters fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 5.2 How to Check and Reset the Consumables Counters For confirming the abrasion of consumables and resetting the counters, use [Software Operation Panel] on your computer as shown below.
  • Page 149 5.2 How to Check and Reset the Consumables Counters 3. From the list on the left of the panel, select [Device Setting]. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/05/c05_02_01.htm (2 of 5)9/28/2007 2:39:26 PM...
  • Page 150 5.2 How to Check and Reset the Consumables Counters You can confirm the following information in this panel: Total Page Count (ADF) Total scanned sheets Brake Roller Number of sheets scanned since last replacement of the Brake roller Pick Roller Number of sheets scanned since last replacement of the Pick roller Remaining Ink Remaining ink in the imprinter's (sold separately) ink cartridge.
  • Page 151 5.2 How to Check and Reset the Consumables Counters 2. Click the [OK] button on the displayed confirmation message. The counter is reset to 0. (The remaining ink indication (percentage) is reset to 100.) 3. If you want to close the [Software Operation Panel] dialog box, click the [OK] button. Consumables Replacement Message The following message may appear while using the scanner: file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/05/c05_02_01.htm (4 of 5)9/28/2007 2:39:26 PM...
  • Page 152 5.2 How to Check and Reset the Consumables Counters Replace consumables when this message is displayed. When you click the [Ignore] button, this message disappears and scanning continues. You may be able to continue scanning for a while, however, it is recommended that you replace the consumable as soon as possible.
  • Page 153 5.3 Replacing the Brake Roller fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 5.3 Replacing the Brake Roller 1. Remove any documents from the ADF paper chute. 2. Open the ADF by pulling the ADF open lever and turning the ADF to the front. ADF open lever CAUTION Be careful, the ADF may close and pinch your finger.
  • Page 154 5.3 Replacing the Brake Roller 4. Remove the Brake roller from the shaft. 5. Attach a new Brake roller. Insert the shaft to the Brake roller aligning the shaft tab with the slot of the Brake roller. Brake roller's slot Shaft tab 6.
  • Page 155 5.3 Replacing the Brake Roller 7. Close the ADF. Press down on the center of the ADF to return it to its original position until the ADF button locks. With the movie below, review the procedure to replace the Brake roller. 8.
  • Page 156 5.4 Replacing the Pick Roller fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 5.4 Replacing the Pick Roller 1. Remove any documents from the ADF paper chute. 2. Remove the ADF paper chute from the scanner. ADF paper chute 3.
  • Page 157 5.4 Replacing the Pick Roller 4. Remove the Pick roller from the scanner. 1) Use the handle in the middle of the sheet guide to open it as shown below. Sheet guide 2) Rotate the Pick roller lever in the direction of the arrow. Lever 3) Slide the Pick roller in the direction of teh arrow, and then lift it up to remove the shaft from the hole.
  • Page 158 5.4 Replacing the Pick Roller CAUTION Be careful not to touch the gear beside the lever of the Pick Roller as grease is applied to it. 5. Remove the Pick roller from the shaft. Remove the Pick roller from the shaft while lifting up the tab on the Pick roller. Pick roller Shaft CAUTION...
  • Page 159 5.4 Replacing the Pick Roller Pick roller shaft Screw Slot Pick roller ATTENTION Make sure that the Pick roller is correctly attached. The incompletely-attached Pick roller might cause document jams or other feed errors. When attaching the Pick roller to the shaft, make sure that the roller’s tab clicks into place. 7.
  • Page 160 5.4 Replacing the Pick Roller 3) Close the sheet guide. Make sure that both sides of the side guide are firmly locked. 8. Close the ADF. Press down on the center of the ADF to return it to its original position until the ADF open leverlocks.
  • Page 161 ATTENTION For information about troubles that are not described here, and the details of the errors, refer to the FUJITSU TWAIN32 Scanner Driver Help. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06.htm9/28/2007 2:38:38 PM...
  • Page 162 6.1 Removing Jammed Documents fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.1 Removing Jammed Documents If a document jam occurred, follow the procedure below to remove the jammed documents. ATTENTION Take care not to get injured when removing jammed documents. Be careful not to get neckties, necklaces, etc.
  • Page 163 6.1 Removing Jammed Documents 4. Press down on the center of the ADF to return it to its original position and lock the ADF open lever. Press center of ADF ATTENTION Make sure that the ADF is completely closed. When it is not completely closed, feeding errors may occur.
  • Page 164: Temporary Errors

    6.2 Error Indications on the Operator Panel fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.2 Error Indications on the Operator Panel When any error occurs, the operator panel indicates [J] or [U] and a number alternately for temporary errors, or [E], [F], [C], [H], [A], or [L] and a number alternately for device alarms (permanent error).
  • Page 165: Removing Jammed Documents

    If the alarm is still displayed on the Function Number Display, record (fi-6240 only) the indicated error code, and contact the store where you purchased the scanner or an authorized FUJITSU scanner service provider. Optical system error (ADF front). When you encounter any alarm on the display, turn the scanner off and on.
  • Page 166 If the alarm is still displayed on the Function Number Display, record the indicated error code, and contact the store where you purchased the scanner or an authorized FUJITSU scanner service provider. Chips [C] and a number are displayed alternately.
  • Page 167 If the alarm is still displayed on the Function Number Display, record the indicated error code, and contact the store where you purchased the scanner or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED...
  • Page 168 "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and then contact the dealer where you purchased the scanner or an authorized FUJITSU scanner service provider. Scanner cannot be turned On. Indication on Function No. display goes out.
  • Page 169 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/01.htm9/28/2007 2:37:41 PM...
  • Page 170 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/02.htm9/28/2007 2:37:43 PM...
  • Page 171 6.3 Remedying Typical Troubles fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.3 Remedying Typical Troubles Symptom: The scanning does not start. Back Turn OFF the scanner and unlock the transport lock. Did you unlock the transport lock of the Flatbed? (fi-6240 only) (Refer to "2.1 Installing the Scanner in "fi- 6140/fi-6240 Getting Started.")
  • Page 172 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/03.htm (2 of 2)9/28/2007 2:37:44 PM...
  • Page 173 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/04.htm9/28/2007 2:37:45 PM...
  • Page 174 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/05.htm9/28/2007 2:37:46 PM...
  • Page 175 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/06.htm9/28/2007 2:37:47 PM...
  • Page 176 If you cannot solve the problem after taking measures, check the items in Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/07.htm (1 of 2)9/28/2007 2:37:48 PM...
  • Page 177 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/08.htm9/28/2007 2:37:50 PM...
  • Page 178 6.3 Remedying Typical Troubles fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.3 Remedying Typical Troubles Symptom: Multifeed errors occur frequently. Back Use documents that satisfy the requirements. Do the documents satisfy the conditions described in Precautions in Section "7.2 (For details of the requirements, see Section Document...
  • Page 179 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/09.htm (2 of 2)9/28/2007 2:37:51 PM...
  • Page 180 6.3 Remedying Typical Troubles fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.3 Remedying Typical Troubles Symptom: Pickup errors occur frequently. Back Use documents that satisfy the requirements. Do the documents satisfy the conditions described in Precautions in Section "7.2 (For details of the requirements, see Section Document...
  • Page 181 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/10.htm (2 of 2)9/28/2007 2:37:52 PM...
  • Page 182 6.3 Remedying Typical Troubles fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.3 Remedying Typical Troubles Symptom: Paper jams occur frequently. Back Use documents that satisfy the requirements. Do the documents satisfy the conditions described in Precautions in Section "7.2 (For details of the requirements, see Section Document...
  • Page 183 Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/11.htm (2 of 2)9/28/2007 2:37:53 PM...
  • Page 184 Check the items in Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/12.htm9/28/2007 2:37:53 PM...
  • Page 185 Check the items in Section "6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner" and contact the dealer or an authorized FUJITSU scanner service provider. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/06/c06_03/13.htm9/28/2007 2:37:54 PM...
  • Page 186 6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner Check the following items before you contact the dealer where you bought the scanner. Print General Details Item...
  • Page 187 6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner Installation or PC connection issues Problem at the time of personal computer connection Item Findings OS (Windows) Windows Vista Displayed error message Type of interface (Example) SCSI interface Interface controllers (Example) made by Adaptec.
  • Page 188 6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner Imaging system trouble Item Findings Type and version of scanner driver Type of interface controller (Example) made by Adaptec. SCSI Card 2940AU OS (Windows) Windows Vista Application software (Example) ScandAll PRO, Acrobat Scan type (Example) Front Side, Back Side, Duplex...
  • Page 189 6.5 Checking Labels on the Scanner fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 6.5 Checking Labels on the Scanner This section describes how to check the labels on the scanner. Positions of Labels on the Scanner The following shows where the two labels are located on the scanner. Label A (example): Indicates scanner information.
  • Page 190 Chapter 7 ADF AND PAPER SPECIFICATION fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Chapter 7 ADF AND PAPER SPECIFICATION This chapter describes the required document size and paper quality for ensuring correct operation when scanning documents on the ADF.
  • Page 191 7.1 Document Size fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 7.1 Document Size The following shows the size of documents that can be scanned on the ADF. Maximum Minimum 216 (8.5 in) 356 (14 in) 53 (2.1 in) 74 (2.9 in) (Unit: mm) All Rights Reserved.
  • Page 192 7.2 Document Quality fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 7.2 Document Quality Document Type The following paper types are recommended for document use: Woodfree paper Wood containing paper When using documents of paper type other than the above, check whether or not the document can be scanned by test- scanning a few sheets before executing the actual document.
  • Page 193 7.2 Document Quality ATTENTION Carbonless paper contains chemical substances that may harm the Brake roller or paper-feeding rollers (e.g. Pick roller) when documents are fed. Pay attention to the following: Cleaning: If document jams occur frequently, clean the Brake roller and the Pick roller. For details on cleaning the Brake roller and the Pick roller, see Chapter "4.
  • Page 194 7.2 Document Quality It is recommended that the front side of the card be placed face down in the Automatic Document Feeder. The card to be scanned should be within the ISO7810 compliance, type ID-1. Dimensions: 3.4 inch (height) x 2.1 inch (width)/ 86 mm x 54 mm Thickness: 0.056 inches / 1.4 mm or less Material:...
  • Page 195 7.3 Maximum Document Loading Capacity fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 7.3 Maximum Document Loading Capacity The maximum number of sheets that can be loaded on the ADF paper chute is determined by the size and weight of the document.
  • Page 196 7.4 Area Not to be Perforated fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 7.4 Area Not to be Perforated When using the ADF, document trouble might occur if there are punched holes in the shaded area in the following figure. If hole-punched documents must be scanned, use the Flatbed (fi-6240 only).
  • Page 197 7.5 Multifeed Detection Conditions fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 7.5 Multifeed Detection Conditions There are three multifeed detection modes: document overlapping, document length, and both document thickness and length. The following conditions must be satisfied in each of these detection modes. Detection by Document Overlapping Sheets of the same thickness shall be set in the ADF at a time.
  • Page 198 7.5 Multifeed Detection Conditions Multifeed detection monitoring area All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/07/c07_05_01.htm (2 of 2)9/28/2007 2:38:46 PM...
  • Page 199 Chapter 8 SCANNER SETTINGS fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Chapter 8 SCANNER SETTINGS This chapter explains the how settings can be done for the scanner using the Software Operation Panel. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08.htm9/28/2007 2:38:47 PM...
  • Page 200 8.1 Scanner Settings fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.1 Scanner Settings The Software Operation Panel (SOP) will be installed together with the scanner driver (TWAIN/ISIS). With this application, you can configure settings and functions for the fi-6140 and the fi-6240. Start up the Software Operation Panel 1.
  • Page 201: Device Setting

    8.1 Scanner Settings Settings Using the Software Operation Panel, you can configure the following settings for the scanner connected to the PC. [Device setting] file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_01_01.htm (2 of 5)9/28/2007 2:38:49 PM...
  • Page 202 8.1 Scanner Settings Item Explanation Selectable parameter Default Page counter For evaluating the Pick roller/Brake roller/remaining ink — consumable replacement level (only for the imprinter option) (Consumables cycle. counter) Use this function to reset the counters after replacing consumables. Power saving setting Select the waiting time Setting range 15 to 55 minutes (set in 15 min.
  • Page 203 8.1 Scanner Settings Item Explanation Selectable parameter Default Multifeed Select the method to detect None/Check Overlapping [Ultrasonic]/ Check Multifeed. (Check either of Check Length/Check Overlapping and overlapping overlapping or document Length. length, or both of document Selectable length (to be detected as length and overlapping) length difference): 10, 15 or 20 mm Page edge filler...
  • Page 204 8.1 Scanner Settings Intelligent Multi-feed If photograph or something Manual mode/Auto mode 1/Auto Manual Function is pasted on the document mode 2 mode and its size and/or position are same, you can easily let the scanner memorize its "8.8 Intelligent size and/or position just Multifeed Setting"...
  • Page 205 8.2 Power Saving Setting fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.2 Power Saving Setting This scanner switches to Power saving mode automatically to save power consumption when it remains unused for a certain time. To configure the Power saving mode, do the following: 1.
  • Page 206 8.3 Offset/Scan Scale fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.3 Offset/Scan Scale When the position of the scanned image is not correct or the image is elongated, use the following procedure to adjust the Offset and the Scan scale for correction. ATTENTION The factory default settings are appropriate, so normally there is no need to make any adjustment.
  • Page 207 8.3 Offset/Scan Scale 3. Adjust the Offset/Scan scale as necessary. Offset setting Target Select ADF front, ADF back, or FB as target. Horizontal Adjusts the horizontal Offset. Setting range -2 mm to +2 mm, in steps of 0.5 mm. Vertical Adjusts the vertical Offset.
  • Page 208 8.4 Multifeed Detection fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.4 Multifeed Detection "Multifeed" is a feeding error that occurs when two or more sheets in the ADF paper chute are fed simultaneously into the scanner. If you continue scanning document without knowing this multifeed error, you could skip some of important data while scanning the document.
  • Page 209 8.4 Multifeed Detection 3. Select a detection option. None Does not detect multifeeds. Check Overlapping(Ultrasonic) Detects multifeeds by checking for document overlapping. When this option is selected, the following two more detection options can be set: You can specify the multifeed detection range by the length from the leading edge of document. To specify this, go to Step 4.
  • Page 210 8.4 Multifeed Detection 5. Speficy the detection range. Selected Range To specify the following detection range, you need to mark this checkbox first. Unit: mm Mark this checkbox to enable the settings configured in this dialog box. Otherwise, let the checkbox unmarked. Clearing this checkbox sets both the starting and ending positions to "0", making the whole range of the document to be checked for multifeeds.
  • Page 211 8.4 Multifeed Detection Disable Disables the Multifeed Detection for the specified range. Enable Enables the Multifeed Detection for the specified range. Start Specify the starting position of the detection range from the leading edge of the document. The configurable area is from 0 to 510 mm in 2 mm increments, where the starting position is less than the ending position.
  • Page 212 8.4 Multifeed Detection Unit: mm Setting Example 2 Selected Range=Enable, Start=0mm, End=0mm HINT When [Check Overrapping(Ultrasonic)] is selected, the multifeed detection ratio may drop if the document sheet(s) are glued or electrostatically adhered to each other. Setting Example 3 (Bad Example) Selected Range=Enable, Start=100mm, End=102mm file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_04_01.htm (5 of 6)9/28/2007 2:38:53 PM...
  • Page 213 8.4 Multifeed Detection Unit: mm * Since the detection range (length) is less than the minimum value (5 mm), the Multifeed Detection cannot be performed correctly. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_04_01.htm (6 of 6)9/28/2007 2:38:53 PM...
  • Page 214 8.5 Page Edge Filler fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.5 Page Edge Filler Depending on the state of the documents, the shadow of the scanned document appears in the end portion of the output image and black thin lines may be generated.
  • Page 215 8.5 Page Edge Filler 3. Specify the length for each end section; top, bottom, right, and left, to fill the end sections. Top edge=0 to 15 mm Top edge=0 to 15 mm D: Bottom edge=–7 to 7 mm Bottom edge=0 to 15 mm R: Right edge=0 to 15 mm Right edge=0 to 15 mm Left edge=0 to 15 mm...
  • Page 216 8.6 Dropout Color fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.6 Dropout Color By using the “Dropout Color” function, you can scan documents with the specified color removed from the light’s three primary colors, or red, green, blue. (This function is available for the binary black and white setting as well as the grayscale setting.) For example, you can scan only the black part of letters when scanning the document containing black letters each with a green frame.
  • Page 217 8.6 Dropout Color 3. Select a color to drop out. Red, Green, Blue Red, green, or blue is dropped out. None No dropout occurs. ATTENTION The Dropout Color setting can also be configured using the scanner driver setting window. (The scanner driver setting window is given a priority over Software Operation Panel.) When configuring the setting through Software Operation Panel, you cannot select other colors than red, green, and blue.
  • Page 218 8.7 Pre-Pick fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.7 Pre-Pick To scan documents consecutively, you can previously pick the document to be scanned next. This operation is called Pre-Pick. By enabling Pre-Pick, the time interval between the scanning of two separate documents can be shortened. Configure the settings for the Pre-Pick as follows: 1.
  • Page 219 8.7 Pre-Pick Select [Yes] to make Pre-pick valid, and select [No] to make it invalid. HINT By enabling Pre-Pick, faster scanning can be achieved. While Pre-Pick is valid, if you cancel scanning in process, you have to reload the document after ejecting all the pre-picked document. This setting is also available by scanner driver setting.
  • Page 220 8.8 Intelligent Multifeed Setting fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.8 Intelligent Multifeed Setting If two or more sheets of paper of the same size are sticked on the same position of the document, you can easily let the scanner memorize the size and/or position just not to detect multifeeds in that area.
  • Page 221: Manual Mode

    8.8 Intelligent Multifeed Setting 3. Select one of the following options and click the [OK] button. Refer to Section "3.18 Not Detecting Multifeed for Fixed Format." Manual mode In this mode, when the scanner detects a multifeed and stops document feeding, you can reload the document from the ADF paper chute and specify whether or not to bypass the Multifeed Detection.
  • Page 222 8.9 Paper Feeding Retry Times fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.9 Paper Feeding Retry Times You can specify this feature to reduce the number of times paper feeding (picking) is to be retried. Configure the number of paper feeding retry times as follows. 1.
  • Page 223 8.10 Life Counter Setting fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.10 Life Counter Setting This counter specifies the page count to ask the operator to replace the consumables. When the page count exceeds the value specified here, the background color of the counter becomes yellow (see Section "5.2 How to Check and Reset the Consumables Counters"), or a message (see the...
  • Page 224 8.10 Life Counter Setting 3. Specify the counter value to change its color for each consumable (Pick roller, Brake roller). Setting is available from 10,000 to 2,550,000 with 10,000 increment. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_10_01.htm (2 of 2)9/28/2007 2:39:00 PM...
  • Page 225 8.11 Timeout for Manual Feeding fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.11 Timeout for Manual Feeding In manual feeding mode where you manually load documents sheet by sheet, you can scan multiple batches of documents continuously as a single file when you load the second stack of document before the timeout time after loading the first batch. The scanning terminates automatically when the time has elapsed, canceling the Timeout for Manual Feeding.
  • Page 226 8.11 Timeout for Manual Feeding 3. Select whether to enable or disable the manual feeding mode. When enabling the mode, select the timeout period for manual feeding until loading the next document after the previous one. HINT In manual feeding mode, the scanner waits for the document to be loaded within the specified timeout period even when you start scanning with no document loaded in the ADF paper chute.
  • Page 227 8.12 Power ON/OFF Control Setting fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.12 Power ON/OFF Control Setting You can select how to power the scanner on/off; by pressing the Power button, or by connecting/disconnecting the AC cable. Configure the settings for power on/off control as follows.
  • Page 228 8.12 Power ON/OFF Control Setting 3. To power on/off the scanner by pressing the Power button, select [Enable power switch]. To power on/off the scanner by connecting/disconnecting the AC cable, select [Disable power switch]. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_12_01.htm (2 of 2)9/28/2007 2:39:03 PM...
  • Page 229 8.13 Paper Protection Setting fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.13 Paper Protection Setting The Paper Protection function detects any folded paper or nonstandard thin paper in the document and stops the scanning. Configure the settings for the Page Protection as follows: 1.
  • Page 230 8.13 Paper Protection Setting HINT You can configure the settings from the setup dialog box of the scanner driver. (In this case, the settings configured in the scanner driver are given a priority.) All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_13_01.htm (2 of 2)9/28/2007 2:39:04 PM...
  • Page 231 8.14 Paper Protection Detection Level Setting fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 8.14 Paper Protection Detection Level Setting You can set the level of detecting paper jams occurred while feeding the document into the ADF. Configure the settings for the paper protection detection level as follows: 1.
  • Page 232 8.14 Paper Protection Detection Level Setting ATTENTION Specifying [Sensitivity - low] dampens the sensitivity of detecting paper jam at the ADF. Always select [Normal] for important documents that must not be torn or wrinkled. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/08/c08_14_01.htm (2 of 2)9/28/2007 2:39:05 PM...
  • Page 233 Chapter 9 SCANNER SPECIFICATION fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP Chapter 9 SCANNER SPECIFICATION This chapter lists the scanner specifications. All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/09/c09.htm9/28/2007 2:39:06 PM...
  • Page 234 9.1 Basic Specifications fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 9.1 Basic Specifications Item Specification Notice Scanner type fi-6140 fi-6240 ADF (Automatic Document ADF + Flatbed Feeder) Image sensor fi-6140 fi-6240 Color CCD x 2 (Front, Color CCD x 3 (Front, Back, Flatbed) Back) Light source fi-6140...
  • Page 235 9.1 Basic Specifications Color 50 to 600 dpi, 1200 dpi (*6) Scalable in 1 dpi increments Grayscale level 8 bits per color Internal 10 bits Halftone patterns Dither / error diffusion Interface (Note (*7)) Ultra SCSI Shield-type 50 pin (pin-type) half- pitch USB2.0 / 1.10 (Note (*8)) B type...
  • Page 236 9.2 Installation Specifications fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 9.2 Installation Specifications Item Specification Dimensions Depth Width Height (fi-6140: Without ADF paper chute fi-6140: 160 mm fi-6140: 301 mm fi-6140: 158 mm and stacker) (6.4 in) (11.8 in) (6.2 in) fi-6240: 567 mm...
  • Page 237 9.3 External Dimensions fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP 9.3 External Dimensions The following shows the external dimensions: fi-6140 fi-6240 (Unit:mm) All Rights Reserved. Copyright 2007 © PFU LIMITED file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/09/c09_03_01.htm9/28/2007 2:39:09 PM...
  • Page 238 APPENDIX 1 Before Using the [Scan] or [Send to] Button fi-6140 / fi-6240 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP APPENDIX 1 Before Using the [Scan] or [Send to] Button By setting the link of the application software to the [Scan] or [Send to] button, you can launch the linked application by simply pushing the button.
  • Page 239 APPENDIX 1 Before Using the [Scan] or [Send to] Button The events available for this function are: Scan Button (Press the [Scan] button) Send to 1 to 9 (With a number from 1 to 9 displayed on the Function Number Display, press the [Send to] button) 8.
  • Page 240 APPENDIX 1 Before Using the [Scan] or [Send to] Button 9. Click the [OK] button. HINT The window and operations may vary depending on your OS. Settings to Configure on the Scanner Function Number Display [Function] button [Secd to] button [Scan] button When using the [Scan] button file:///D|/Documents%20and%20Settings/scanner/Desktop/Lynx3/06/contents/EN/App/cApdx01_01.htm (3 of 4)9/28/2007 2:39:29 PM...
  • Page 241 APPENDIX 1 Before Using the [Scan] or [Send to] Button No setting is needed. Pressing the [Send to] button starts up the application configured. When using the [Send to] button Press the [Function] button to switch the number displayed on the Function Number Display. Use the same number assigned to the event configured on the computer (by selecting a number from 1 to 9 then pressing the [Send to] button).

This manual is also suitable for:

Pa03540-b005Fi-6140Fi-6240

Table of Contents
