Code: SEA399

ASSEMBLY MANUAL

Speciications:

Wingspan-------------- 205.8 cm--------------- 81 inches.

Length------------------ 165.8 cm--------------- 65.3 inches.

Wing area-------------- 72.2 sq.dm------------ 1119.4 sq.in.

Weight------------------ 9 - 9.4 kg-------------- 19.8-20.7 lbs.

Engine------------------ 15cc - 20cc.

Radio------------------- 9 - 11 channels 12 servos.

Need help?

Do you have a question about the CESSNA 310 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seagull Models CESSNA 310

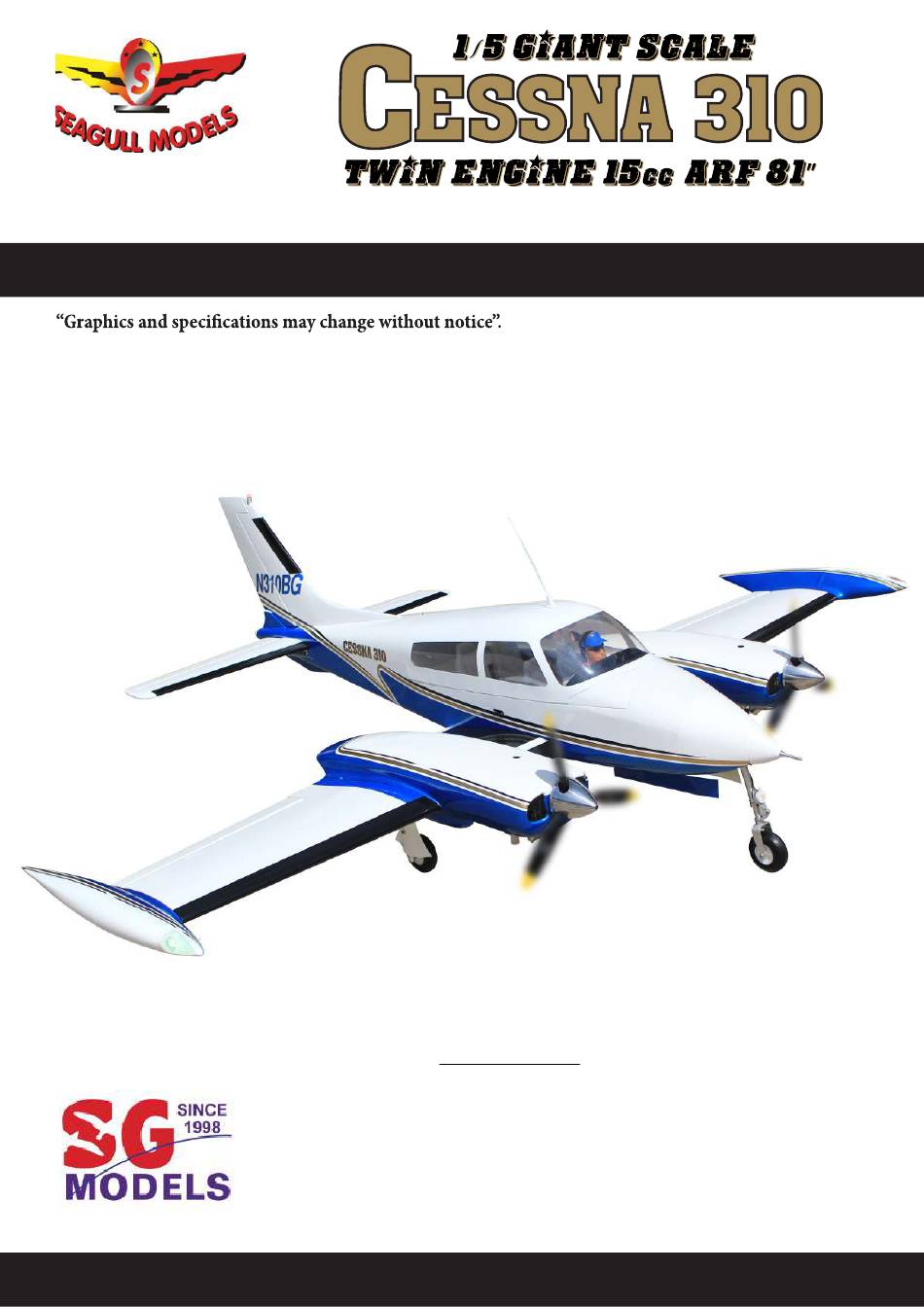

Page 1 Code: SEA399 ASSEMBLY MANUAL Speciications: Wingspan-------------- 205.8 cm--------------- 81 inches. Length------------------ 165.8 cm--------------- 65.3 inches. Wing area-------------- 72.2 sq.dm------------ 1119.4 sq.in. Weight------------------ 9 - 9.4 kg-------------- 19.8-20.7 lbs. Engine------------------ 15cc - 20cc. Radio------------------- 9 - 11 channels 12 servos.
Page 2 Flying the 1/5 Giant Scale Cessna 310 Twin Engine 15cc ARF 81” is simply a joy. his instruction manual is designed to help you build a great lying aeroplane. Please read this manual throughly before starting assembly of your 1/5 Giant Scale Cessna 310 Twin Engine 15cc ARF 81”...
Page 3 WING TIP BULBS KIT CONTENTS Please see below pictures. SEA399 1/5 Giant Scale Cessna 310 Twin Engine 15cc ARF 81”. 1. Fuselage 2. Wing set (2) 3. Tail set (2) 4. Canopy 5. Cowling (2) 6. Pilot 7. Fuel tank 8.
Page 4 Cessna 310 Instruction Manual Epoxy C/A glue...
Page 5 M4x15mm...
Page 6 Cessna 310 Instruction Manual HINGING THE FLAP Epoxy...
Page 7 INSTALL THE AILERONS Please see pictures below.. Insert all four hinges in the ailerons at this time. Make sure hinges move up and down in right direction and not side to side ! Epoxy Remove the ailerons from the wing and remove the hinges.
Page 8 Cessna 310 Instruction Manual Be sure to test the aileron hinges once you insert them. Ensure that the hinge pockets line up, and that the hinges move freely before the epoxy dries. Epoxy Check the it of the aileron to the wing.
Page 9 Epoxy Epoxy INSTALL FLAP CONTROL HORN Install the lap control horn using the same method as same as the aileron con- trol horns. Fiberglass control horn...
Page 10 Cessna 310 Instruction Manual INSTALLING THE ALLERON SERVOS Use drill bit in a pin vise to drill the mouting holes in the blocks. Apply 2-3 drops of thin C/A to each of the mounting holes. Allow the C/A to cure without using accelerator.
Page 11 Apply 1-2 drops of thin C/A to each of the mounting tabs. Allow the C/A to cure without using accelerator. C/A glue Remove the string from the wing at the servo location and use the tape to attach it to the servo extension lead. Pull the lead through the wing and remove the string.
Page 12 Cessna 310 Instruction Manual MOUNT THE PLYWOOD ENGINE NACELLES AILERON PUSHROD INSTALLATION Please see below pictures. 65mm You install the side motor mount box with the lettering 399L on the let wing and 399R on the right wing.
Page 13 399L Loctite M4x20mm 399R...
Page 14 Cessna 310 Instruction Manual INSTALLING THE FLAP PUSHROD Repeat the procedure for the aileron pushrod. 95mm ENGINE MOUNT INSTALLATION Locate the items necessary to install the engine mount included with your model. hread locker glue INSTALLING THE FLAP SERVO Repeat the procedure for the lap servo.
Page 15 Use four 4x30mm head bolts and four Position the engine with the drive washe 4mm washers to attach the engine mount (140mm) forward of the irewall as rails to the irewall. Tighten the screws shown. . Make sure to use threadlock on the screws to help prevent them from vibrat- ing loose.
Page 16 Cessna 310 Instruction Manual...
Page 17 Epoxy Minimum servo spec. Torque : 45.82 oz-in (3.3 kg-cm) @ 4.8V; 56.93 oz-in (4.1 kg-cm) @ 7.4V...
Page 18 Cessna 310 Instruction Manual FUEL TANK INSTALLATION Reinstall the servo horn by sliding the connector over the pushrod wire. Cent- er the throttle stick and trim and install the servo horn perpendiular to the servo center line. You should mark which tube is the vent and which is the fuel pickup when you attach fuel tubing to the tubes in the stopper.
Page 19 COWLING Please study images below. LEFT RIGFT Install the muler and muler extension onto the engine and make the cutout in the cowl for muler clearance. Connect the fuel and pressure lines to the carburetor, muler and fuel iler valve. Secure the cowl to fuselage using the M3x10mm socket head screws.Putting a small length of silicon fuel tube under the head of the screw helps with...
Page 20 Cessna 310 Instruction Manual Loctite M3x10mm M3x10mm...
Page 21 Recommend the items necessary to in- stall the electric power conversion parts included with your model. - Motor: Avian 5055-550Kv Outrunner (SPMXAM 4740) - Avian 100 Smart ESC (PSMXAE1100) - Propeller: wood 15x8E (EFLP 71764) or APC 15x 8E (APC 15080 E) Attach the electric motor box to the ire- wall suitable with the cross lines drawn on the electric motor box and irewall.
Page 22 Cessna 310 Instruction Manual M4x25mm and washers Attach the motor to the front of the hen, use 5.5mm drill bit to enlarge the electric motor box using four 4mm blind holes on the electric motor box. nut, four M4x25 mm hex head bolts to se- cure the motor.
Page 23 Balsa stick Epoxy Blind nut Attach the speed control to the side of the motor box using two-sided tape and tie wraps. Connect the appropriate leads from the speed control to the motor. Make sure the leads will not interfere with the operation of the motor.
Page 24 Cessna 310 Instruction Manual INSTALLING LANDING GEAR Locate items necessary to install Sprin Landing Gear. Install retractable landing gear at the Wing.
Page 25 M3x20mm 80mm 50mm 50mm...
Page 26 Cessna 310 Instruction Manual You can use a correction pen or mask- ing tape to create a 50mm gap. 30mm 50mm M3x4mm M3x6mm...
Page 27 Install the cap on the wing. M3x4mm Epoxy...
Page 28 Cessna 310 Instruction Manual he servo motor should be at least 25mm in size. 25mm Mininum servo. Torque : 8.7 oz-in (6.3 kg-cm) @ 6V; 118 oz-in (8.5 kg-cm) @ 8.4V Encourage the use of servos such as Spektrum.a5060. Hitec HS-225MG.
Page 29 17mm...
Page 30 Cessna 310 Instruction Manual You can use 1 servo or 2 servos for Elevator. Elevator servo Rudder servo + Tail wheel Secure the landing gear doors to the landing gear struts. THROTTLE SERVO ARM INSTALLATION Install adjustable servo connector on the servo arm and set aside for now.
Page 31 INSTALL LED BULB FOR FUSELAGE Trim and cut Please study images below. You use white led lights. Switch INSTALLING THE ENGINE SWITCH Trim and cut Switch Epoxy...
Page 32 Cessna 310 Instruction Manual Epoxy INSTALL NAIL HINGE ELEVATOR Test it the hinges into the elevator, and then the hinges into the tail. Ensure that the hinge pockets line up, and that the hinges move freely. Epoxy INSTALL ELEVATOR CONTROL HORN...
Page 33 Epoxy HINGING THE RUDDER Glue the top three rudder hinges in place using the same techniques used to hinge the elevator. he lower hinge will be glued when the in/rudder assembly is attached to the fu- selage. Epoxy...
Page 34 Cessna 310 Instruction Manual Plug in the power cord. You use red led lights. Epoxy Epoxy...
Page 35 Epoxy INSTALL RUDDER CONTROL HORN Repeat steps to install the rudder control horn as same as steps done for elevator. Epoxy Fiberglass control horn...
Page 36 Cessna 310 Instruction Manual While holding the vertical stabilizer irmly in place, use a pen and draw a line on each side of the vertical stabilizer where it meets the top of the fuselage. Epoxy Rudder iberglass control horn VERTICAL STABILIZER...
Page 37 HORIZONTAL TAIL INSTALLATION Please study images below. Epoxy...
Page 38 Cessna 310 Instruction Manual ELEVATOR PUSHROD HORN INSTALLATION Install the elevator control horn us- ing the same method as with the aileron control horns. Position the elevator control horns on both side of the elevator. M3x12mm Elevator control horn hread one clevis and M2 lock nut on to each elevator control rod.
Page 39 Elevator pushrod 605mm Ball Link Ball Link RUDDER PUSHROD INSTALLATION Locate items necessary to install rudder pushrod. Rudder pushrods assembly as pictures below.
Page 40 Cessna 310 Instruction Manual Insert wood piece to the back fuselage as shown. Epoxy...
Page 41 RETRACTABLE NOSE GEAR INSTALLATION Locate the parts needed to attach the nose gear. M4x15mm...
Page 42 Cessna 310 Instruction Manual M2x8mm...
Page 43 Epoxy...
Page 44 Cessna 310 Instruction Manual...
Page 45 M3x4mm...
Page 46 Cessna 310 Instruction Manual INSTALLATION COCKPIT, PILOT AND CANOPY Locate items necessary to install.
Page 47 M3x10mm Epoxy...
Page 48 Cessna 310 Instruction Manual Epoxy Epoxy...
Page 49 75mm...
Page 50 Cessna 310 Instruction Manual Epoxy M3x15mm STAIR INSTALLATION Please study images below.
Page 51 THE PILOT TUBE INSTALLING THE BATTERY-RECEVER Please study images below. Plug the servos leads and the switch lead into the receiver. Plug the battery pack lead into the switch also. Wrap the receiver and battery pack in the protective foam rubber to protect them from vibration.
Page 52 Cessna 310 Instruction Manual APPLY THE DECALS 1) If all the decals are precut and ready M4x15mm to stick. Please be certain the model is clean and free from oily ingerprints and dust. Position decal on the model where desired, using the photos on the box and...
Page 53 2) If all the decals are not precut, please With the wing attached to the fuselage, use scissors or a sharp hobby knife to cut all parts of the model installed ( ready to the decals from the sheet. Please be cer- ly), and empty fuel tanks, hold the model tain the model is clean and free from oily at the marked balance point with the sta-...
Page 54 Cessna 310 Instruction Manual 20-25mm 25-25mm 30-40mm Fuselage 30-40mm 20-25mm Wing 20-25mm 30mm 40mm...
Page 55 If it does not, lip the servo reversing excessive vibration which could lead switch on your transmitter to change to engine and/or airframe failure. the direction. We wish you many safe and enjoyable lights 1/5 Giant Scale Cessna 310 Twin Engine 15cc ARF 81”. with your...
Page 56 Cessna 310 Instruction Manual If you have any queries, or are interested in our products, please feel free to contact us Factory : 12/101A - Hamlet 4 - Le Van Khuong Street - Dong hanh Ward - Hoc Mon District - Ho Chi Minh City - Viet Nam.
