RMS CodeCrafter AssetManager Project Pages
i!-ConnectLinx Touch Panel Button Mappings Page
The i!-ConnectLinx Touch Panel Button Mappings page is available if you selected Monitor source
usage? on the Room Information/Options page. You can map touch panel buttons to i!-
ConnectLinx. Otherwise, only power on/off and source selects are available.
The i!-ConnectLinx functions grid list displays all i!ConnectLinx functions, with touch panel
button mappings, currently available in the project. The column on the left contains a checkbox
where the check indicates the function is mapped. Removing the check clears the mapping.

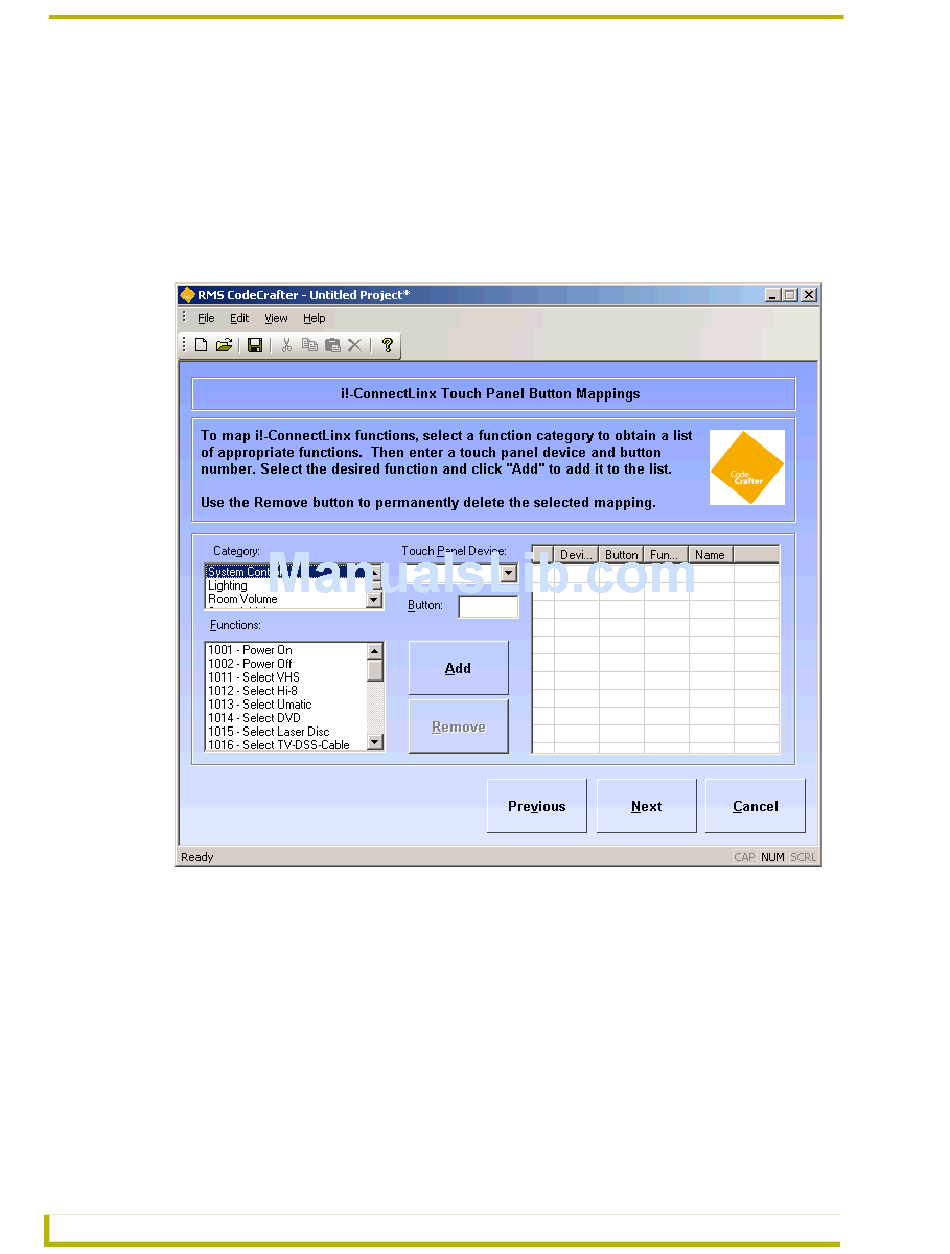

FIG. 45 i!-ConnectLinx Functions Page
Category - A list of i!-ConnectLinx function categories. The Functions list populates
corresponding to your selection in this list.
Functions - A list of i!-ConnectLinx functions for the selected category.
Touch Panel Device - A list of devices populated by what is defined in the integrated file.
Button - A numeric field for the button number.
Add - Adds an entry to the device list. Once you click add you are prompted with a confirmation
window. The window contains the current function number and name. The window provides a box
to select the touch panel device and a numeric field for the button number, but if the device and
58
