8 | Application guidelines
Combination: Underfloor heating + Heat pump convectors – Multiple rooms
8.3 Setting up the space heating system – In case of third-party gas
boiler
Installer reference guide
54

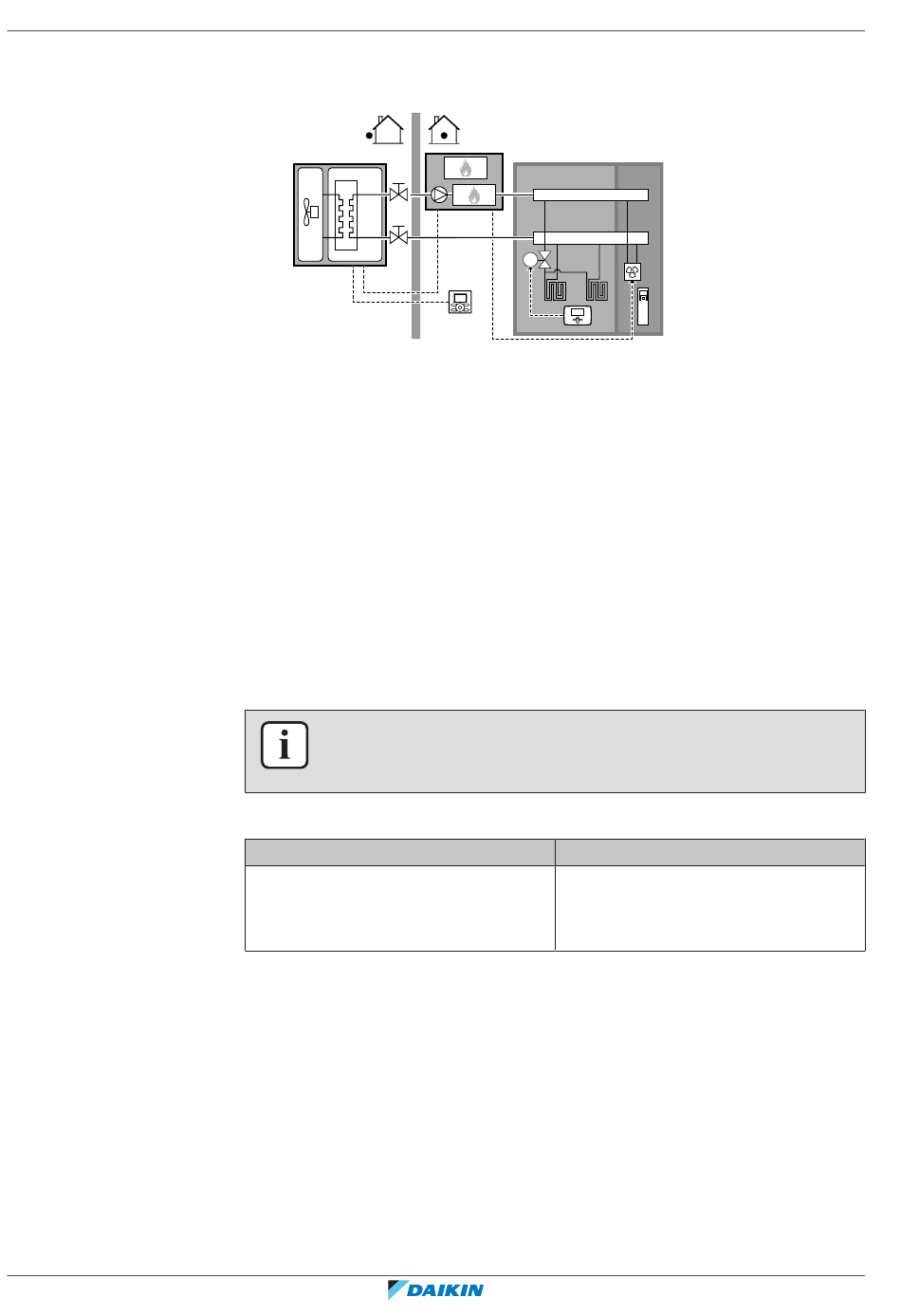

Setup
A Main leaving water temperature zone
B Room 1
C Room 2
a User interface
b External room thermostat
c Remote controller of the heat pump convectors
▪ The outdoor unit is connected in series with the gas boiler.
▪ For each room with heat pump convectors: The heat pump convectors are
directly connected to the gas boiler.
▪ For each room with underfloor heating: A shut-off valve (field supply) is installed
before the underfloor heating. It prevents hot water supply when the room has
no heating demand.
▪ For each room with heat pump convectors: The desired room temperature is set
via the remote controller of the heat pump convectors.
▪ For each room with underfloor heating: The desired room temperature is set via
the external room thermostat (wired or wireless).
INFORMATION
To increase comfort and performance, we recommend to install the valve kit option
EKVKHPC on each heat pump convector.
Configuration
Setting
Unit temperature control:
▪ #: [A.2.1.7]
▪ Code: [C-07]
The heat pump system supplies leaving water to heat emitters in one or more
rooms.
Because the system offers a wide flexibility to control the temperature in each
room, you need to answer the following questions first:
▪ How many rooms are heated by the heat pump system?
▪ Which heat emitter types are used in each room and what is their design leaving
water temperature?
A
B C
M1
a
b
0 (LWT control): Unit operation is
decided based on the leaving water
temperature.
c
Value
EJHA04AAV3 + EHY2KOMB28+32AA
Daikin Altherma H Hybrid
4P531180-1D – 2025.03
