10 | Installation
Installer reference guide
130
▪ The metal bracket is placed on the metal piping (e.g. concentric metal-plastic
piping).
▪ The plastic bracket is placed on the plastic piping (e.g. single-walled plastic
piping).
INFORMATION
Follow the instructions provided by the manufacturer.

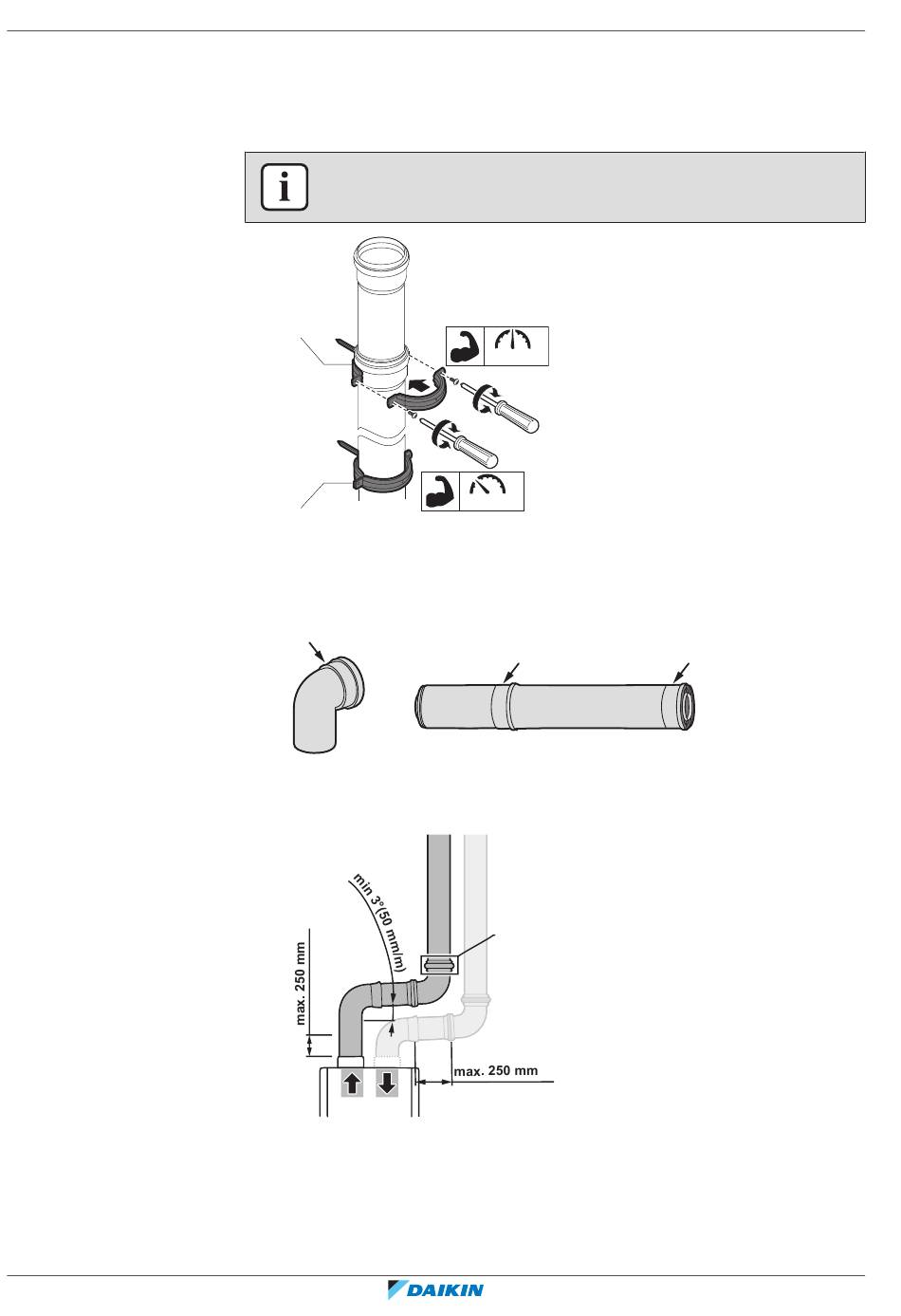

a
b
a Fixing bracket
b Non-fixing bracket
In case of horizontal, sloping and vertical flue gas piping
1 Place fixing brackets on the sleeve of each bend and extension tube.
2 If extension tubes before and after the first bend are shorter than 0.25 m, the
second element of the sleeve after the first bend must be fitted with a fixing
bracket.
nd
a 2 element after the 1
min max
Nm
min max
Nm
a
st
bend
