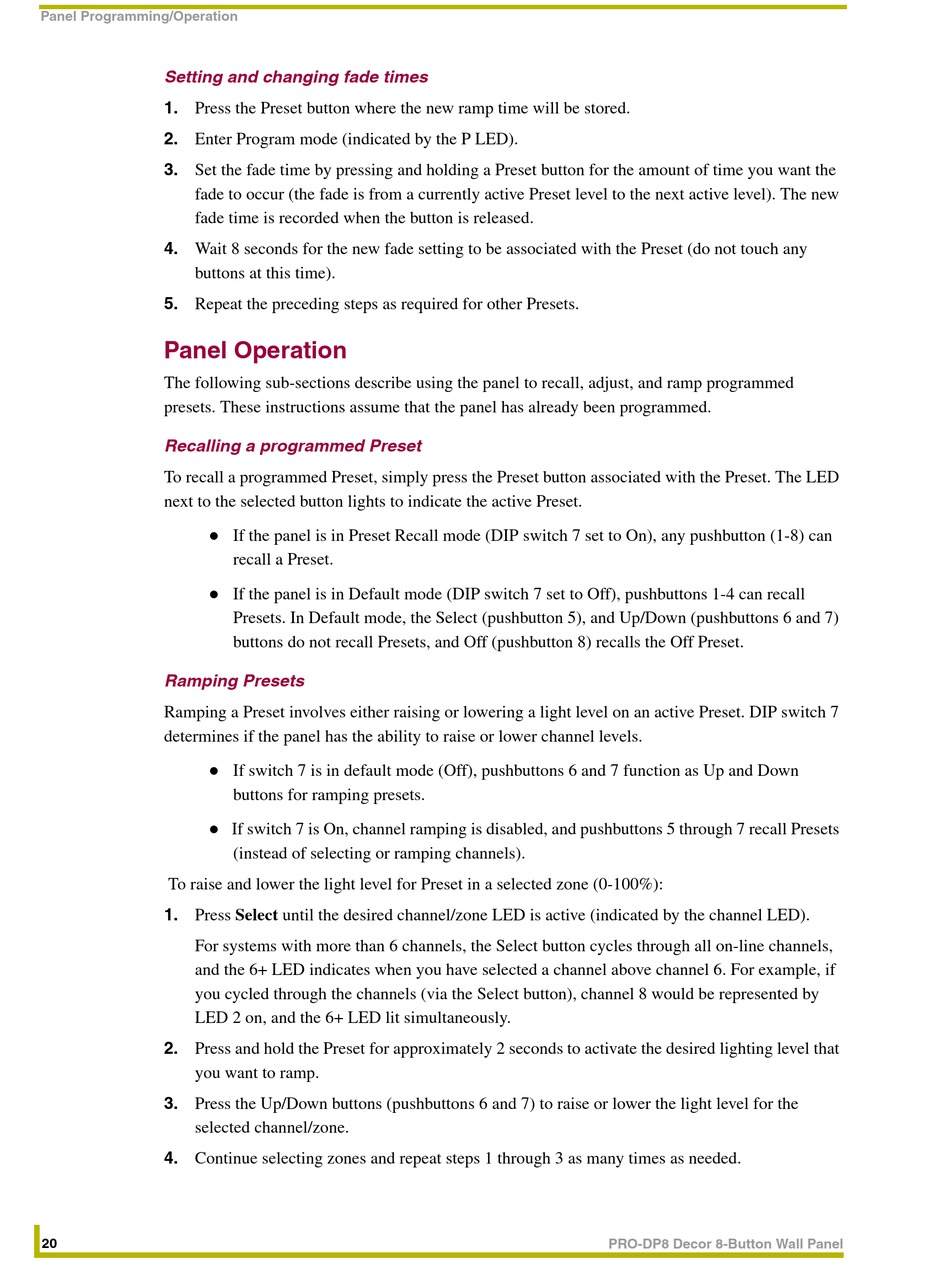

Panel Programming/Operation

Setting and changing fade times

1. Press the Preset button where the new ramp time will be stored.
2. Enter Program mode (indicated by the P LED).
3. Set the fade time by pressing and holding a Preset button for the amount of time you want the
fade to occur (the fade is from a currently active Preset level to the next active level). The new
fade time is recorded when the button is released.
4. Wait 8 seconds for the new fade setting to be associated with the Preset (do not touch any
buttons at this time).
5. Repeat the preceding steps as required for other Presets.
Panel Operation
The following sub-sections describe using the panel to recall, adjust, and ramp programmed
presets. These instructions assume that the panel has already been programmed.
Recalling a programmed Preset
To recall a programmed Preset, simply press the Preset button associated with the Preset. The LED
next to the selected button lights to indicate the active Preset.
!
!
Ramping Presets
Ramping a Preset involves either raising or lowering a light level on an active Preset. DIP switch 7
determines if the panel has the ability to raise or lower channel levels.
!
!
To raise and lower the light level for Preset in a selected zone (0-100%):
1. Press Select until the desired channel/zone LED is active (indicated by the channel LED).
For systems with more than 6 channels, the Select button cycles through all on-line channels,
and the 6+ LED indicates when you have selected a channel above channel 6. For example, if
you cycled through the channels (via the Select button), channel 8 would be represented by
LED 2 on, and the 6+ LED lit simultaneously.
2. Press and hold the Preset for approximately 2 seconds to activate the desired lighting level that
you want to ramp.
3. Press the Up/Down buttons (pushbuttons 6 and 7) to raise or lower the light level for the
selected channel/zone.
4. Continue selecting zones and repeat steps 1 through 3 as many times as needed.
20
If the panel is in Preset Recall mode (DIP switch 7 set to On), any pushbutton (1-8) can
recall a Preset.
If the panel is in Default mode (DIP switch 7 set to Off), pushbuttons 1-4 can recall
Presets. In Default mode, the Select (pushbutton 5), and Up/Down (pushbuttons 6 and 7)
buttons do not recall Presets, and Off (pushbutton 8) recalls the Off Preset.
If switch 7 is in default mode (Off), pushbuttons 6 and 7 function as Up and Down
buttons for ramping presets.
If switch 7 is On, channel ramping is disabled, and pushbuttons 5 through 7 recall Presets
(instead of selecting or ramping channels).
PRO-DP8 Decor 8-Button Wall Panel
