AMX Power Controller PC1 Installation Manual

Overview
The PC1 (FG670) is a 10-Amp Power Controller for 110 VAC (FIG. 1).
AC1 (remote operation)
Pushbutton
4-pin captive-wire
Control Wiring
connector
Switched Power Output socket

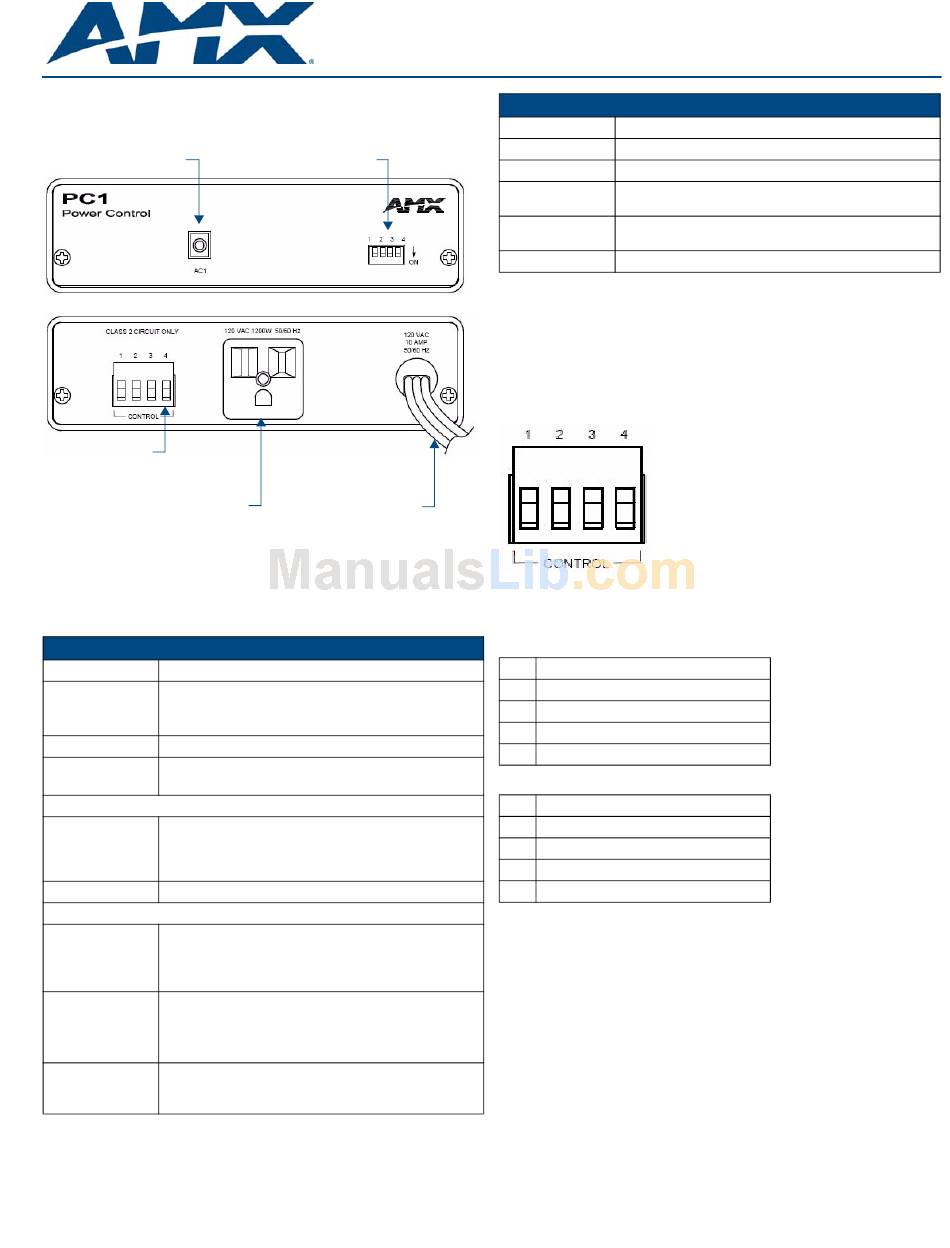

FIG. 1 PC1 Power Controller
The PC1 provides one switched power socket for up to 1200 watts of equipment
power.
Note: The PC1 will work the NXC-I/O10 input/output control card.

Specifications

PCI (FG670) Product Specifications
Control Inputs Remote control contact and switch closure.
Power Outputs • 1 switched 3-wire socket.
• 110 VAC.
• 1200 watts total.
Load Fuse Internal 10A (load capacity).
Power Input • 105 to 125 VAC.
• 3 watts maximum.
Front Panel Components:
AC1 pushbutton • This latching on/off switch controls power to a switched
socket.
• The LED in the pushbutton indicates that socket power is
ON.
DIP Switch Controls the AC1pushbutton operating mode.
Rear Panel Components:
Control • 4-pin captive-wire connector providing remote operation of
the PC1.
• Terminals accept 24 - 12 AWG wire.
• Class 2 Circuit only.
Switched Power • Socket for control of external equipment.
Output
• Total max. power load = 1200 watts.
• An internal 10A load fuse is provided.
• 120 VAC, 1200W, 50/60 Hz.
AC Power Input • 3-conductor line cord providing 120 VAC power to the PS1
and switched power socket.
• 120 VAC, 10 Amp, 50/60Hz.
PC1
Control Mode
DIP Switch
(front)
(rear)
AC Power Input
Power Controller, 10 A (110 VAC only)
PCI Product Specifications (Cont.)
Enclosure: Metal with black matte finish.
Dimensions (HWD) 1.5" x 5.5" x 5.5" (3.81 cm x 13.97 cm x 13.97 cm)
Weight 28 oz. (793.79 g)
Included Power Cord - 6 ft. (1.83 m), with 3-wire grounded plug.
Accessories
Other AMX AC-RK Rack Mount Kit (FG515)
Equipment
Certifications UL Listed E205789
WARNING: To reduce the risk of electric shock, equipment has a grounding type
plug that has a third (grounding) pin. This plug will only fit into a grounding type
outlet. If the plug does not fit into the outlet, contact a qualified electrician to
install the proper outlet. Do not change the plug in any way.
Control Wiring
The 4-pin captive-wire connector on the rear panel (FIG. 2) provides wiring to
remote pushbuttons, switches, or relay contacts.
FIG. 2 4-Pin Captive Wire Control Wiring connector
The tables below list momentary/latching, and discrete on/off mode pinouts and
functions.
Momentary/Latching Mode
Pin Function
1 Unit Ground Input Contact Common
2 Channel 1 ON/OFF
3 N/C
4 N/C
Discrete On/Off Mode
Pin Function
1 Unit Ground Input Contact Common
2 Channel 1 ON
3 N/C
4 Channel 1 OFF
Installation Guide
