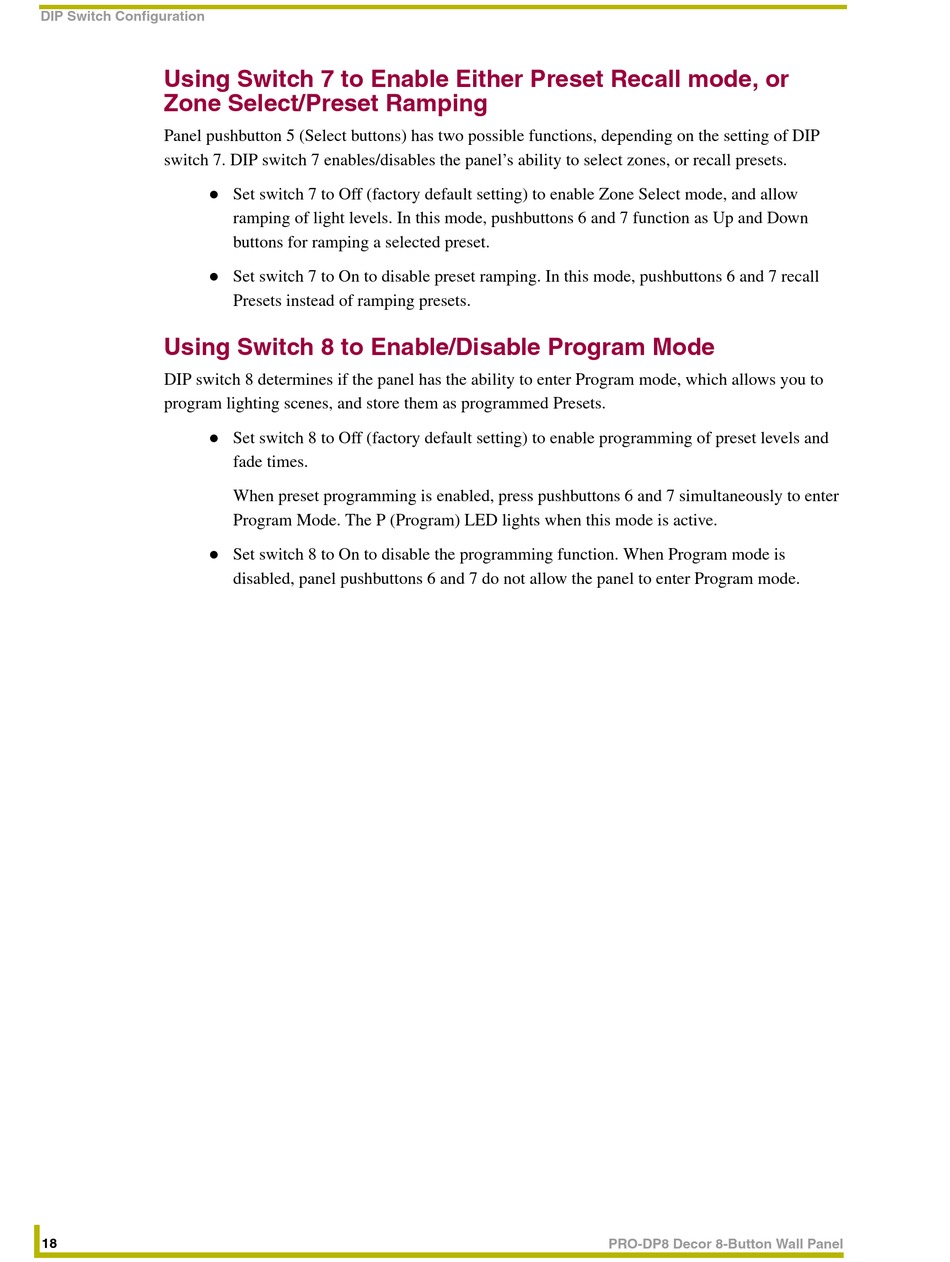

DIP Switch Configuration

Using Switch 7 to Enable Either Preset Recall mode, or

Zone Select/Preset Ramping

Panel pushbutton 5 (Select buttons) has two possible functions, depending on the setting of DIP

switch 7. DIP switch 7 enables/disables the panel's ability to select zones, or recall presets.

DIP switch 8 determines if the panel has the ability to enter Program mode, which allows you to

program lighting scenes, and store them as programmed Presets.

Set switch 7 to Off (factory default setting) to enable Zone Select mode, and allow

ramping of light levels. In this mode, pushbuttons 6 and 7 function as Up and Down

buttons for ramping a selected preset.

Set switch 7 to On to disable preset ramping. In this mode, pushbuttons 6 and 7 recall

Presets instead of ramping presets.

Set switch 8 to Off (factory default setting) to enable programming of preset levels and

fade times.

When preset programming is enabled, press pushbuttons 6 and 7 simultaneously to enter

Program Mode. The P (Program) LED lights when this mode is active.

Set switch 8 to On to disable the programming function. When Program mode is

disabled, panel pushbuttons 6 and 7 do not allow the panel to enter Program mode.

PRO-DP8 Decor 8-Button Wall Panel
