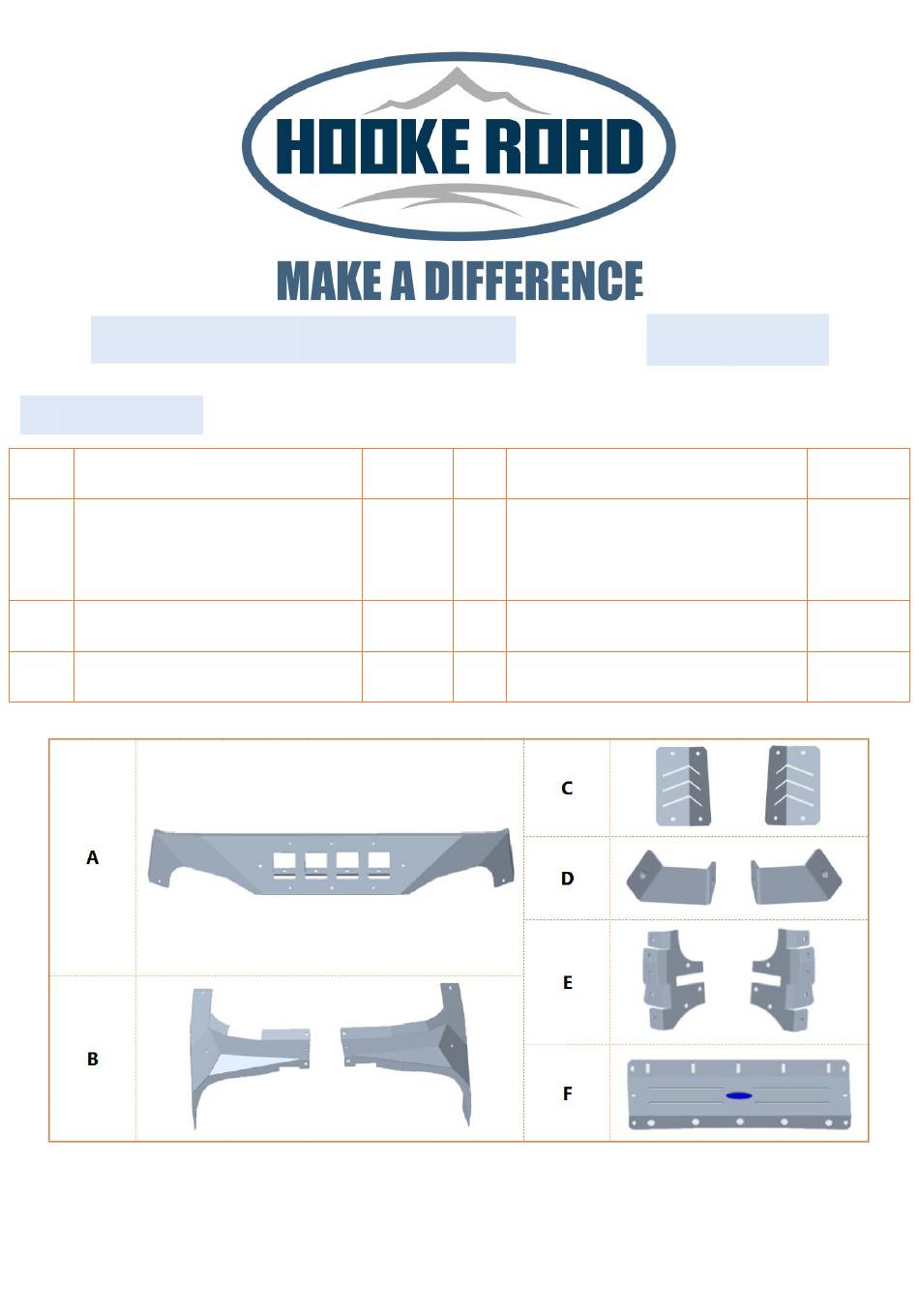

Windshield Frame Cover
(1) Contents:
Qty
Part Name
1
Windshield Frame Cover Assembly
H×14
Acorn Hex Cap Dome Head Nuts
I×14
Carriage Bolts
Size(mm)
Qty
Part Name
J×8
Button Head Socket Cap Bolts
Screws
M8
K×8
Split Lock Washer
M8*25
L×8
Flat Washer
BXG.1027
M10*25*1
Size(mm)
M10*16
M10
Advertisement
Related Manuals for HOOKE ROAD BXG.1027
Summary of Contents for HOOKE ROAD BXG.1027
- Page 1 BXG.1027 Windshield Frame Cover (1) Contents: Part Name Size(mm) Part Name Size(mm) Windshield Frame Cover Assembly J×8 Button Head Socket Cap Bolts M10*16 Screws H×14 Acorn Hex Cap Dome Head Nuts K×8 Split Lock Washer I×14 Carriage Bolts M8*25 L×8...
- Page 2 (2) Tools required: a. Drive Socket Ratchet Wrench; b. 13mm Shallow Socket. c. 6mm Hex Bit Socket;...
- Page 3 About 1-2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.1027), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: Assemble the Part “C” & Part “B” with those bolts (H,I). Step 2: Assemble the Part “B” & Part “F” with those bolts(H,J).
- Page 5 Step3: Install the LED light into the Part “A”.
- Page 6 Step 4: Assemble the Part “A” & Part “C” with those bolts(H, J). Tighten up all of the bolts in order.
- Page 7 Step 5: Remove the original bolts and install the Part “E” &“D” with the original bolts. Notes ： This Part original bolts needn’t remove.
- Page 8 Step 6: Install it into your car with those bolts(J, K, L).
- Page 9 Step 7: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
