Page 2

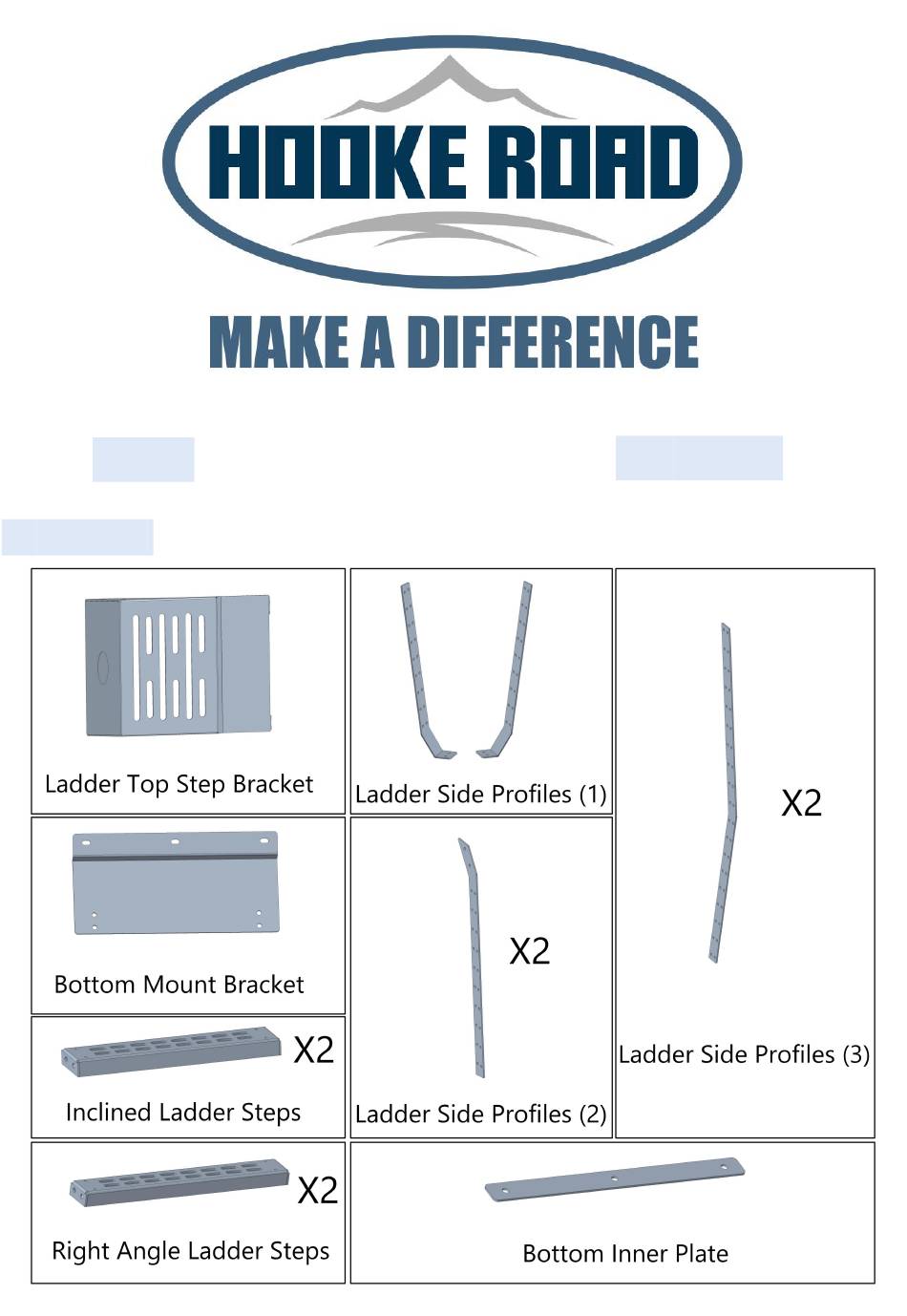

Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M8*16 Button Head Socket Cap Bolts Screws M6*16 Button Head Socket Cap Bolts Screws M6*20 Flat Washer M8*20*1.5 Flat Washer M6*12*1.5 Flat Washer M6*16*1.5 Flange Hex Lock Nuts Flange Hex Lock Nuts Round Black Rubber Pads M6*26*10.5 Double Side Tape...
Page 3
About 1 hour, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.9807-S), please scan the QR code.
(4) Installation instruction: Step 1: Open the Rear hatch and remove the left plastic cover as shown. You can reinstall it after completing the installation. Step 2: Next, you need to locate the positioning paper in the package and cut it to the size shown in the diagram using scissors.
Page 5
Step 4: Next, align the center of the circular hole on the positioning paper, drill a 4mm pilot hole and open up to 7mm.
Page 6
Step 5: Next, use double-sided tape to adhere within the green area of the ladder top step bracket, and attach the EVA to the contact surface between the bottom mount bracket and the vehicle. Step 6: Next, slide the bottom inner plate into the door opening and assemble it with the bottom mounting bracket using M6*16 screws and washers, as shown in the diagram.
Page 7
Step 7: Next, assemble the ladder side profiles (1) onto the bottom mount bracket. There are two holes on each side that require the installation of round black rubber pads. Step 8: Next, assemble the ladder side profiles (3) and right angle ladder steps together onto ladder side profiles (1).
Page 8
Step 9: Next, assemble the ladder side profiles (2) and inclined ladder steps together onto ladder side profiles (3). Step 10: Making sure it is level.
Page 9
Step 11: Finally, use a cloth to clean the surface of the ladder top step bracket and the vehicle body. Peel off the double-sided tape on the back of the bracket, then insert the ladder top step bracket bracket into the groove. After inserting, use a hard object to inset into the groove to prevent the bracket from moving.
Page 10
Step 12: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
