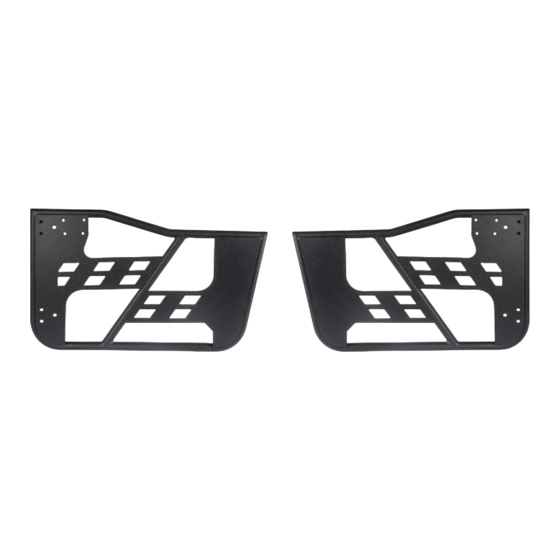

Tubular Doors
BXG.1005
(1) Contents:
(2) Tools required:
a. 5mm Hex Socket Wrench;
b. 14mm Wrench;

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.1005 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOOKE ROAD BXG.1005

  • Page 1 Tubular Doors BXG.1005 (1) Contents: (2) Tools required: a. 5mm Hex Socket Wrench; b. 14mm Wrench;...
  • Page 2 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.1005), please scan the QR code.
  • Page 3 (4) Installation instruction: Step 1: Begin the installation by removing the original doors. Step 2: Assemble the Part A1 and Part B1. Note:don't tighten up the bolts too much for a adjustable operation in the next step.
  • Page 4 Step 3: Install the tubular door into the the car by aligning and putting into hinges. Step 4: Assemble the Part C1 to the tubular door.
  • Page 5 Step 5: The same install operation for the passenger side. Step 6: Installation completed.
  • Page 6 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
