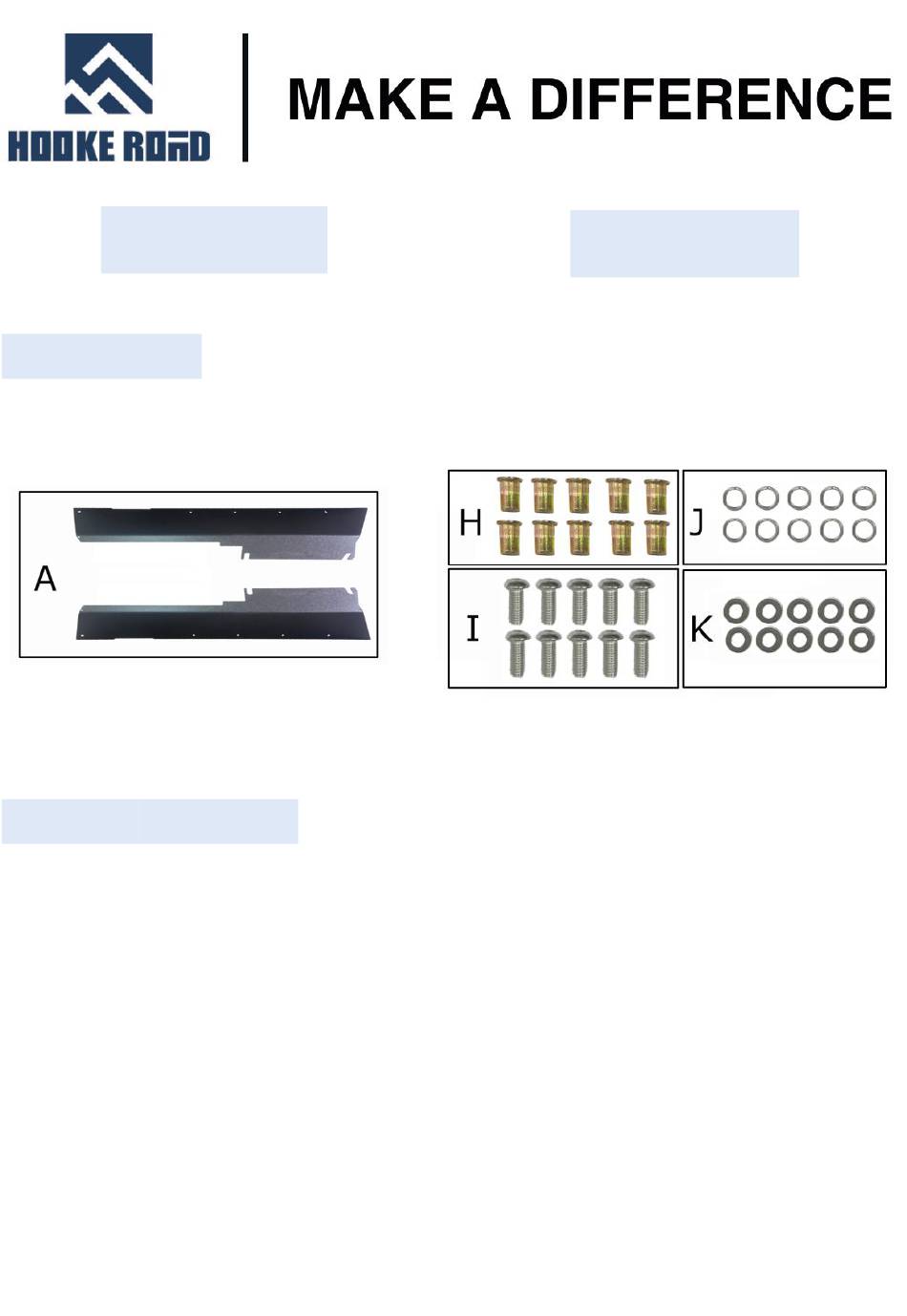

- Page 1 Side Step BXG.1021 (1)Contents: (2)Tools required: A. 16mm Socket Wrench; B. 13/32 Drill bit; C. Drill 6mm Allen Wrench; D. 17mm Wrench Jack Clamps;...
-
Page 2: Installation Instruction
(3)Installation time: About 2 hours, 2-3 persons needed. Installation time is different according to individual person （ ） (4)Installation instruction: Step 1: From underneath the vehicle locate the two rear brackets on the frame where the body mounts to the frame, loosen the bolts with a 16mm socket (there are three brackets on each side but only loosen the rear two). - Page 3 Step 3: Take the rocker guard and locate the horizontal plate along the inside of the rocker guard, it will have two notches in it. Side the notches between the body (shown in Fig 3) of the vehicle and the body mounts that you loosened in step 1. Step 4: With the nothes in between the body and the body mounts take a set of clamps and damp the upper vertical inner edge of the rocker guard flsuh with...
- Page 4 Step 5: Place the M10 × 1.5 Screws through the Drilled Holes using a 6mm Allen Wrench and place the Washer and Nylon Lock Nut from behind (shown in Fig 5) to thread the M10 Screw in place using a 17mm socket (repeat for the remaining holes).
- Page 5 Step 6: The installation is complete. We hope you enjoy a wonderful off-road life with this quality product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
