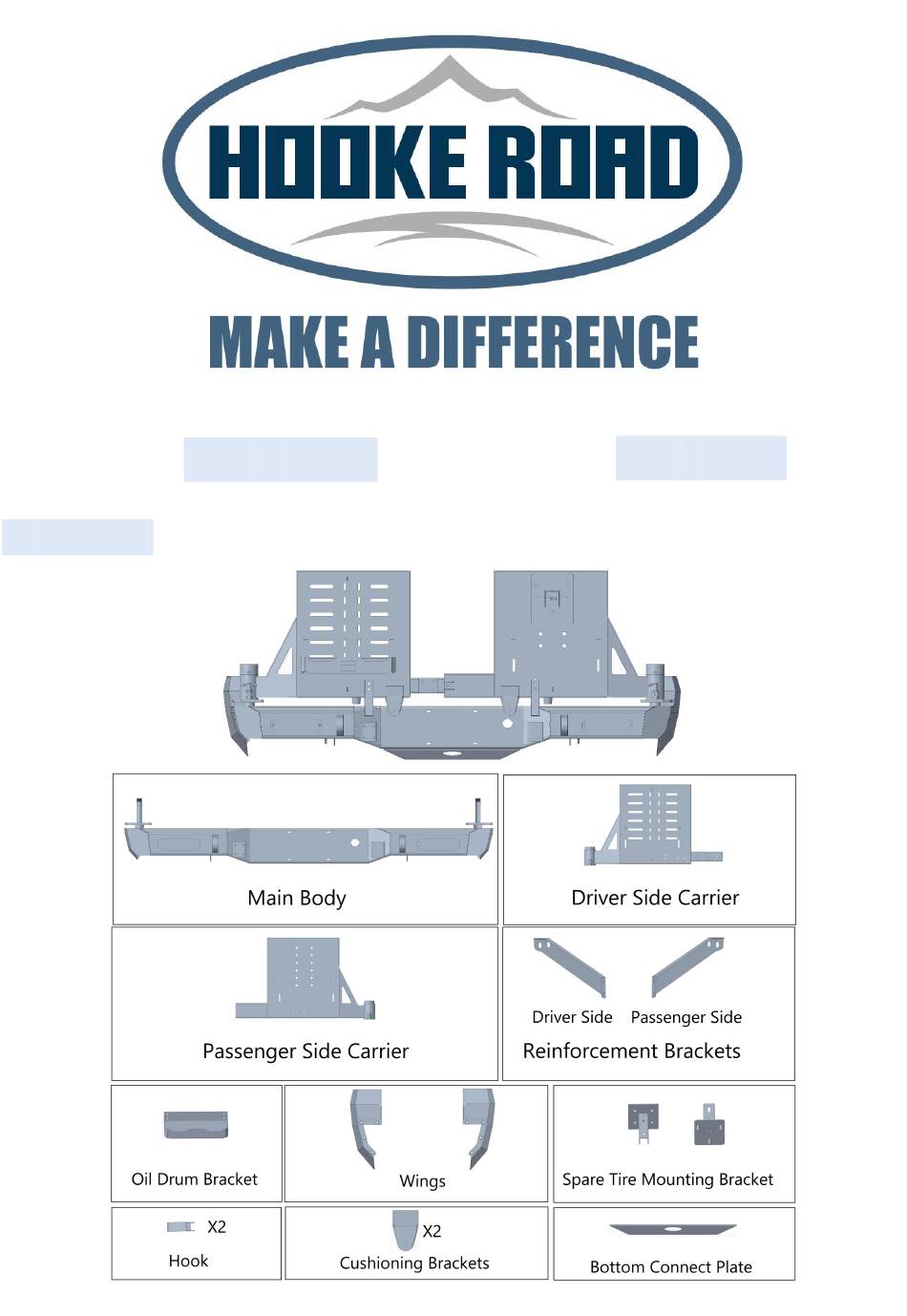

- Page 1 BXG.4036-S Rear Bumper (1) Contents:...
- Page 2 Accessories Part Name Size(mm) Picture Round Black Rubber Pads 36*28*25 Bearing Cover Tapered Roller Bearing Slotted Hex Castle Nut Wheel Lug Nuts M14*15*40 Gray Ratchet Straps T-shaped Indexing Pin Adjustable Latch U Bolt Self-lock Toggle Latch Adjustable Latch U Bolt Self-lock Toggle Latch Accessory Bolts Part Name Size(mm)
- Page 3 Button Head Socket Cap Bolts Screws M6*16 Button Head Socket Cap Bolts Screws M8*25 Button Head Socket Cap Bolts Screws M6*14 Button Head Socket Cap Bolts Screws M6*20 Button Head Socket Cap Bolts Screws M6*20 Flat Head Countersunk Bolts M6*12 Split Lock Washer Flat Washer M12*2*30...
-
Page 4: Installation Time
About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4036-S), please scan the QR code. - Page 5 (4) Installation instruction: Step 1: First, remove the original rear bumper, taking care to preserve the factory receiver hitch structure during the disassembly process. Step 2: Next, assemble the side wings onto the main body and secure them with M8*20 screws.
- Page 6 Step 3: Next, assemble the bottom connect plate onto the main body and secure them with M8*20 screws. Step 4: Next, it is recommended to lift the bumper with the assistance of 2 to 3 people in preparation for installation on the vehicle. Afterward, install the remaining three holes of the bottom connect plate using M8*20 screws, washers, and nuts.
- Page 7 Step 5: Next, to install the side mounting holes, a total of 4 holes. Use M12*35 screws, washers, and nuts for the installation. Step 6: Next, install the reinforcement brackets on both sides, distinguishing between the passenger side and the driver's side. The diagram below illustrates the passenger side.
- Page 8 Step 7: Next, install the T-shaped Indexing Pin on both carriers. Step 8: Next, install the two tow carriers onto the already mounted rear bumper. Place the tapered roller bearing into the bearings first, then use a 34mm wrench to tighten the slotted hex castle nut into the bearings. Tighten the nuts, and finally, install the bearing cover using M6*12 flat head countersunk bolts.
- Page 9 Step 9: The carriers have been successfully installed. Step 10: Next, install the collision prevention accessories on the carriers. Screw in the five round black rubber pads using M8*25 screws.
- Page 10 Step 11: Next, place two of the round black rubber pads into the cushioning brackets. Step 12: Next, install one of the round black rubber pads into the driver side carrier using the M8 nuts. Step 13: Next, place one round black rubber pad and one cushioning bracket into each of the two carriers.
- Page 11 Step 14: Next, install the adjustable latch u bolt self-lock toggle latch near the D-rings on both sides of the main bumper. Use M6*16 screws with M6*12*1 washers and nuts for installation.
- Page 12 Step 15: If you find that the length of this adjustable latch u bolt self-lock toggle latch is not sufficient, you can adjust the length by manipulating the four screws shown in the diagram. Step 16: Next, install adjustable latch u bolt self-lock toggle latch and accessory at the overlap of the two carriers.
- Page 13 Step 17: Next, above the installation position in step 14, install the hooks using M6*14 screws and M6*16*1.5 washers. Step 18: Next, install this oil drum bracket on the driver's side carrier using M8*20 screws along with M8*20*1.5 washers and nuts. Step 19: Next, demonstrate how to secure the oil drum on the oil drum bracket.
- Page 14 You can also use the long slot for installing the oil drum without using the oil drum bracket, but please note that the oil drum is not included.
- Page 15 Step 20: Next, install this spare tire mounting bracket on the passenger's side carrier using M12*30 hex bolts along with washers and nuts. Step 21: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 16 Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
