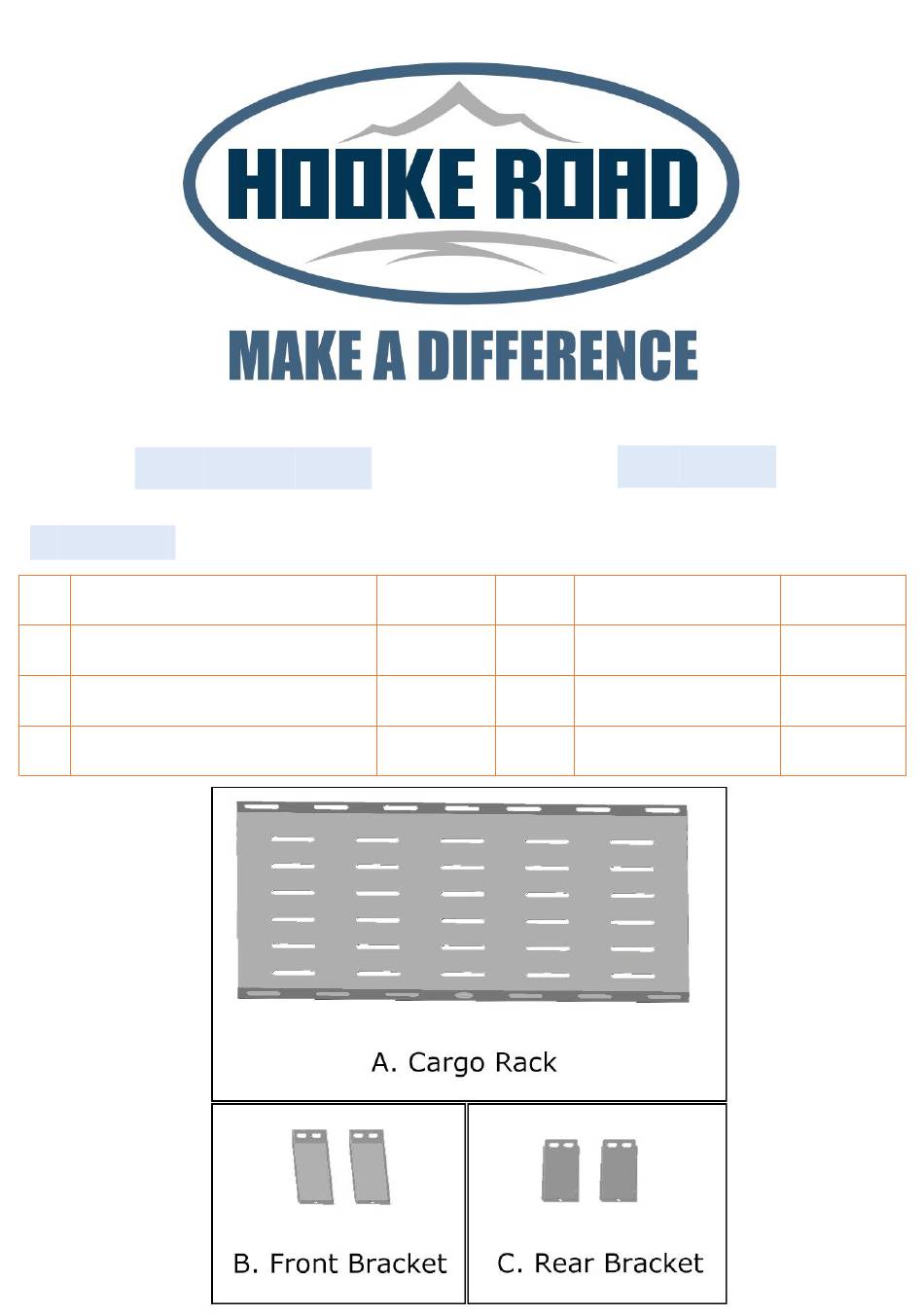

- Page 1 BXG.1029-S Inter Cargo Rack (1) Contents: Part Name Size(mm) Part Name Size(mm) Interior Cargo Back Assembly Split Lock Washer Button Head Socket Cap Bolts Screws M10*20 Flat Washer Flange Hex Lock Nuts...
- Page 3 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.1029-S), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1:Remove or fold the rear seat, prepare to install the product. Step 2: Assemble the Front Bracket (B) & the Rear Bracket (C) and the Cargo Rack (A) with the Button Head Socket Cap Bolts Screws (M10*20), Split Lock Washer (M10), Flat Washer (M10), Flange Hex Lock Nuts (M10).
- Page 5 Step 3: Install the front bracket (Part “B”) with the Button Head Socket Cap Bolts Screws(M10*20), Flat Washer(M10), Split Lock Washer(M10), Flange Hex Lock Nuts(M10). two people are required to secure the bolts and the nuts. Step 4: Use the factory vehicle bolts to fix the rear bracket (Part “C”) and tighten the screws.
- Page 6 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
