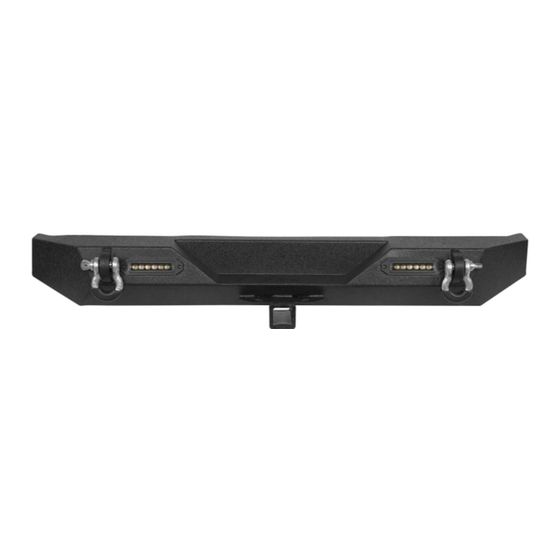

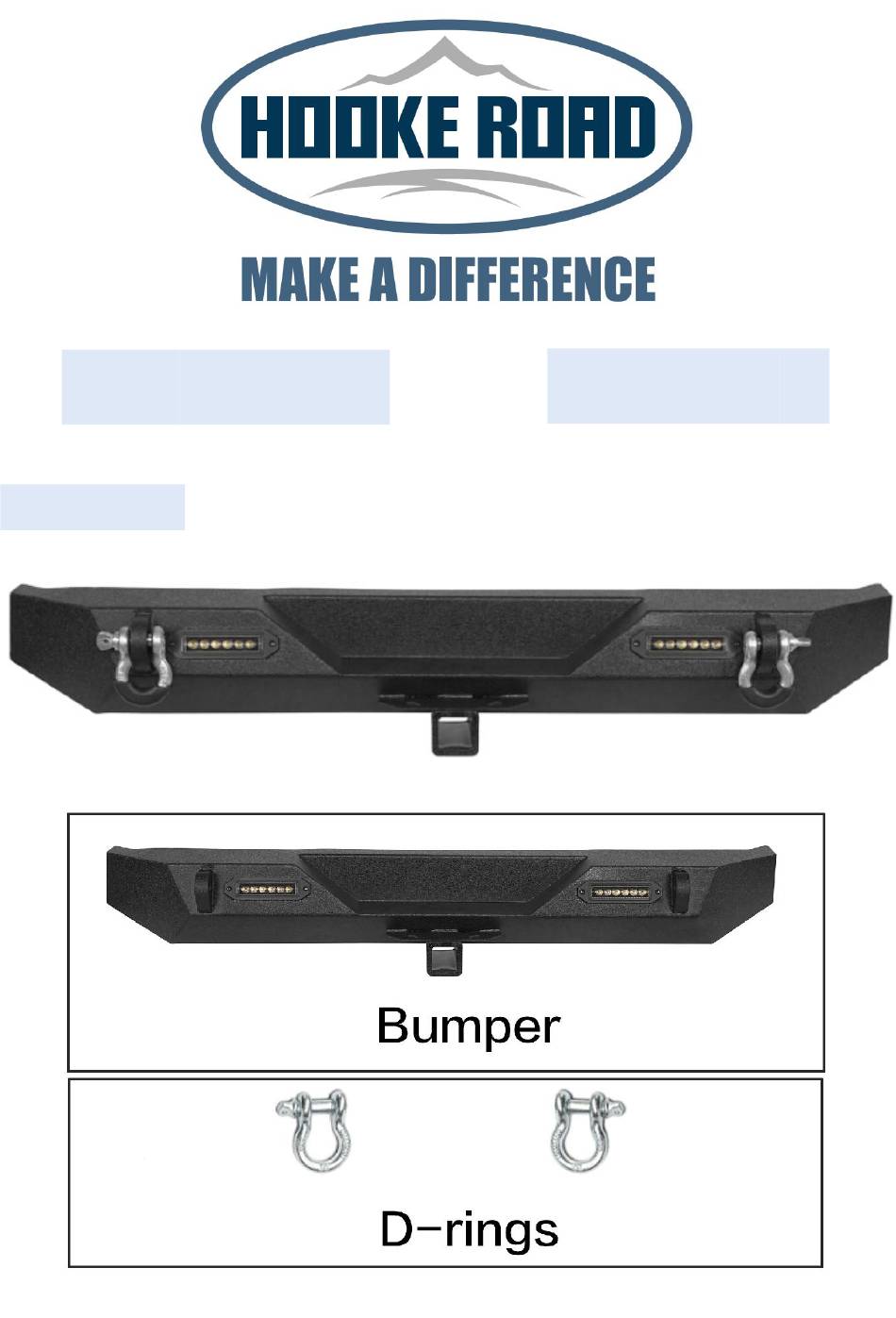

- Page 1 BXG.1009-S Rear Bumper (1)Contents:...
-
Page 2: Tools Required
Part Name Size(mm) Hex Bolts M12*30 Split Lock Washer Flat Washer M12*24*2 Hex Nuts (2)Tools required: a. 19mm socket wrench; b. 19mm wrench;... -
Page 3: Installation Time
About 1 hour, 2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.1009-S), please scan the QR code. -
Page 4: Installation Instruction
(4)Installation instruction: Step 1: Remove the original rear bumper.And there are 8 bolt holes on the JEEP. As shown below. Step 2: Install the bumper on the JEEP. As shown on the RIGHT. - Page 5 Step 3: Install the bumper with the Hex Bolts (M12*30), Split Lock Washer(D12), Flat Washer (M12*24*2), Hex Nuts (M12). Step 4: After step 3,then use the 19mm socket wrench & 19mm wrench tighten Step 5: Install the D-rings. As shown below.
- Page 6 Step 6: Installation completed. Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
