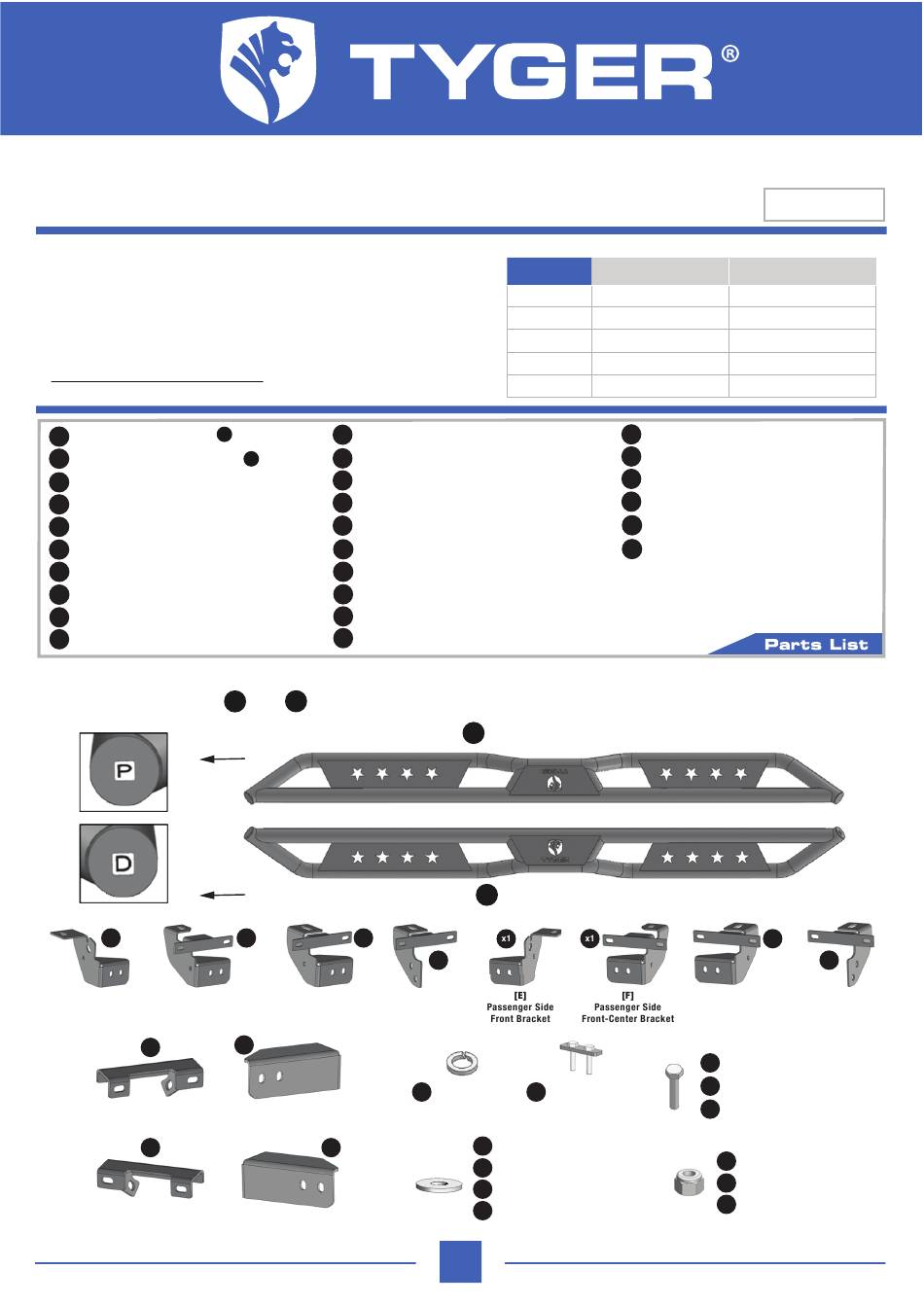

STAR STRIDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLA-
TION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS
ARE PRESENT. FAILURE TO IDENTIFY DAMAGE BEFORE INSTAL-
LATION COULD LEAD TO A REJECTION OF ANY CLAIM. IF MISSING
PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A PICTURE FOR
THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver Side Star Strider
x1
Passenger Side Star Strider
x1
Driver Side Front Bracket [A]
x1
Driver Side Front-Center Bracket [B]
x1
Driver Side Rear-Center Bracket [C]
x1
Driver Side Rear Bracket [D]
x1
Passenger Side Front Bracket [E]
x1
Passenger Side Front-Center Bracket [F]
x1
Passenger Side Rear-Center Bracket [G]
x1
Passenger Side Rear Bracket [H]
x1
ATTENTION: Refer to
Front
Front
x1
[A]
[B]
Driver Side
Driver Side
Front Bracket
Front-Center Bracket
x1
[I]
Driver Side Front
Support Bracket
x1
[K]
Passenger Side Front
Support Bracket
Customer Support: www.tygerauto.com/contact
®
®
D
Driver Side Front Support Bracket [I]
x1
Passenger Side Front Support Bracket [K]
P
x1
Driver Side Rear Support Bracket [J]
x1
Passenger Side Rear Support Bracket [L]
x1
8-1.25mm x 35mm Double Bolt Plates
x8
6-1.0mm x 25mm Hex Bolts
x16
6mm x 22mm x 2mm Flat Washers
x32
6mm Nylon Lock Nuts
x16
8mm x 28mm x 3mm Flat Washers
x8
8mm Lock Washers
x8
D
P
and
labelling on the side of the tubes to determine Driver and Passenger Star Striders
x1
x1
[C]
Driver Side
Rear-Center Bracket
x1
[J]
Driver Side Rear
Support Bracket
x1
[L]
Passenger Side Rear
Support Bracket
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
Top View
P
Passenger Side Star Strider
D
Driver Side Star Strider
x1
[D]
Driver Side
Rear Bracket
8-1.25mm x 35mm
x8
8mm Lock Washers
x8
Double Bolt Plates
x32
6mm x 22mm x 2mm Flat Washers
x8
8mm x 28mm x 3mm Flat Washers
x16
8mm x 24mm x 2mm Flat Washer
x12
10mm x 24mm x 2.2mm Flat Washer
1/6
1/3
TG-SR2J74958
Class 8.8 Torque (ft-lbs)
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
8mm x 24mm x 2mm Flat Washers
x16
8mm Nylon Lock Nuts
x16
10mm x 24mm x 2.2mm Flat Washers
x12
8-1.25mm x 35mm Hex Bolts
x8
10mm Nylon Lock Nuts
x6
10-1.5mm x 30mm Hex Bolts
x6
x1
[G]
Passenger Side
Rear-Center Bracket
x16
6-1.0mm x 25mm Hex Bolts
x8
8-1.25mm x 35mm Hex Bolts
x6
10-1.5mm x 30mm Hex Bolts
x16
6mm Nylon Lock Nuts
x16
8mm Nylon Lock Nuts
x6
10mm Nylon Lock Nuts
6-7
22-23
44-45
78-79
125-126
x1
[H]
Passenger Side
Rear Bracket
V240501
Advertisement
Table of Contents
Related Manuals for Tyger STAR STRIDER TG-SR2J74958
Summary of Contents for Tyger STAR STRIDER TG-SR2J74958
- Page 1 STAR STRIDER ® ® TG-SR2J74958 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLA- Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) TION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY DAMAGE BEFORE INSTAL- 15-16 22-23 LATION COULD LEAD TO A REJECTION OF ANY CLAIM.
-
Page 2: Bottom View
TYGER STAR STRIDER STAR STRIDER Reference the letters printed on the brackets to determine mounting locations Front Driver Side Star Strider Front Passenger Side Star Strider Bottom View Front Driver Side Star Strider Front Passenger Side Star Strider... -
Page 3: Tools Required
STAR STRIDER TOOLS REQUIRED Ratchet 13mm Socket Front (2) 6-1.0mm x 25mm Hex Bolts (4) 6mm x 22mm x 2mm Flat Washers (2) 6mm Nylon Lock Nuts (Fig 2) Attach Driver Side Front Support Bracket [I] Extensions Wrench to Front Mounting Location with indicated hardware (1) 10-1.5mm x 30mm Hex Bolt (2) 10mm x 24mm x 2.2mm Flat Washers STEP 1... - Page 4 STAR STRIDER Driver-side Front-Center Mounting Area Driver-side Rear-Center Mounting Area Front Front (Fig 5) Attach Driver Side Front-Center Bracket [B] (Fig 8) Attach Driver Side Rear-Center Bracket [C] to Front-Center Mounting Location pinch weld holes to Rear-Center Mounting Location pinch weld holes and threaded insert and threaded insert (1) 8-1.25mm x 35mm...
- Page 5 STAR STRIDER Front Driver-side Rear Mounting Area Front Front (Fig 14) Attached Driver Side Rear Bracket [D] and Driver Side Rear Support Bracket [J] to Rear Mounting Location (Fig 11) Attach Driver Side Rear Bracket [D] to Rear Mounting Location pinch weld holes MOUNTING STEP 2 and threaded insert...
-
Page 6: Passenger Side
STAR STRIDER STEP 3 PASSENGER SIDE Repeat STEPS 1-2 for Passenger side installation. Front: Use Bracket [E] instead of [A]; Front-Center: Use Bracket [F] instead of [B]; Rear-Center: Use Bracket [G] instead of [C]; Rear: Use Bracket [H] instead of [D]; Front Support Bracket: [K] instead of [I];...
