TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

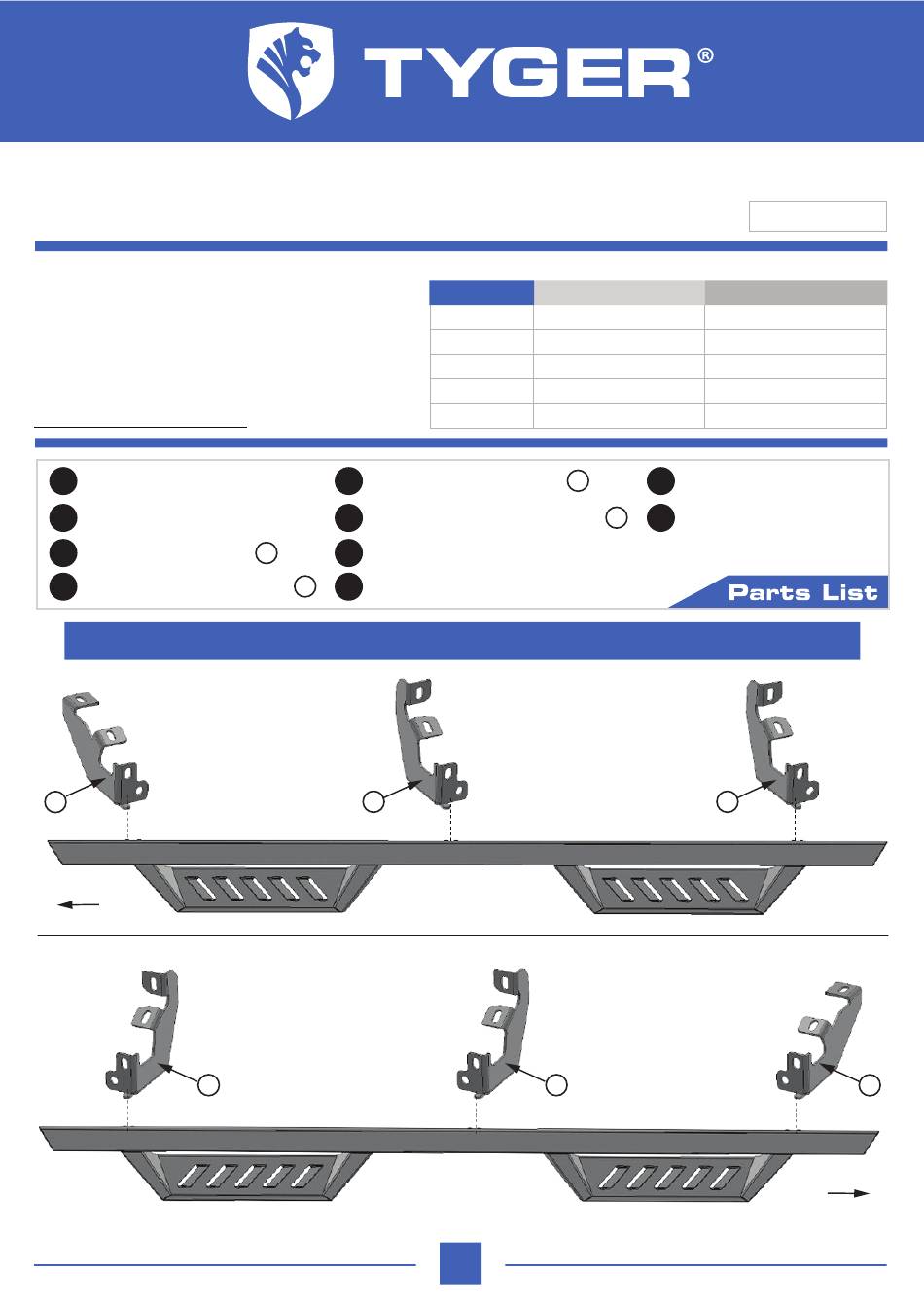

x1
Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Driver/Left Front Mounting Bracket
x2
Driver/Left Center/Rear Mounting Brackets
Reference the letters printed on the brackets to determine mounting locations
A
Front
D
Customer Support: www.tygerauto.com/contact
TORQUE VALUES
x1
Passenger/Right Front Mounting Bracket
x2
Passenger/Right Center/Rear Mounting Brackets
A
x12
10-1.5mm x 25mm Hex Bolts
B
x12
10mm Lock Washers
B
Driver/Left TYGER LanderX
Passenger/Right TYGER LanderX
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
6-7
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
C
D
D
1/4
TG-LX3F82448
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
x12
10mm x 27mm OD x 3mm Flat Washers
x12
8mm x 25mm Combo Bolts
B
C
Front
V230719
Advertisement
Related Manuals for Tyger LanderX
Summary of Contents for Tyger LanderX
- Page 1 78-79 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left TYGER LanderX Passenger/Right Front Mounting Bracket 10mm x 27mm OD x 3mm Flat Washers Passenger/Right TYGER LanderX Passenger/Right Center/Rear Mounting Brackets 8mm x 25mm Combo Bolts Driver/Left Front Mounting Bracket 10-1.5mm x 25mm Hex Bolts...
- Page 2 TYGER LanderX Bottom View ATTENTION: Refer to the D or P labelling on the tubes to determine the Driver or Passenger side steps. XX-D Front Driver/Left LanderX XX-P Front Passenger/Right LanderX PROCEDURE: (2) 10mm x 25mm Hex Bolts REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 3 STEP 4 Carefully unwrap the TYGER LanderX. Select the Driver/Left TYGER LanderX. Line up the TYGER LanderX with the (3) Mounting Brackets. Attach the TYGER LanderX to the Brackets with the included (6) 8mm x 25mm Combo Hex Bolts (Figs 9-13).
- Page 4 Rear Bracket (Fig 10) Driver/Left LanderX attached to Front Bracket STEP 5 Level and adjust the TYGER LanderX and tighten all hardware. (2) 8mm x 25mm Combo Hex Bolts STEP 6 Repeat STEPS 1-5 to install the Passenger/Right TYGER LanderX “P”.
