TYGER TRAX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

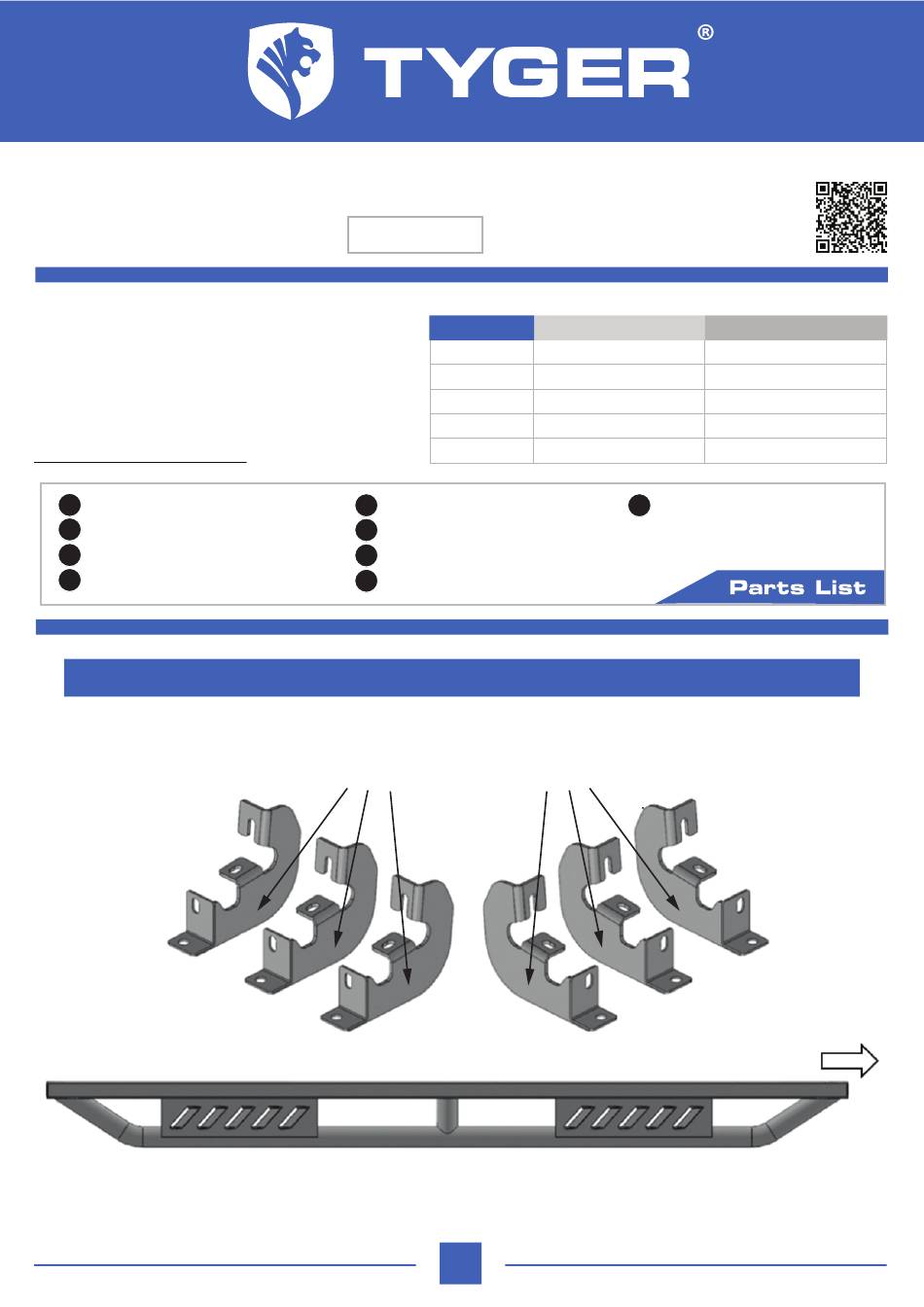

Driver/Left TYGER TRAX
x1
Passenger/Right TYGER TRAX
x1
Driver/Left Mounting Brackets (A)
x3
Passenger/Right Mounting Brackets (B)
x3
Reference the letters printed on the brackets to determine mounting locations
Customer Support: www.tygerauto.com/contact
TG-TX7C29828
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
8-1.25mm x 30mm Hex Bolts
x12
8-1.25mm x 25mm Combo Bolts
x12
8mm Lock Washers
x12
8mm x 24mm OD x 2mm Flat Washers
x12
(B)
Passenger/Right TYGER TRAX
1/3
Scan to Download the
Latest Digital Version
Class 8.8 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
8mm Clip Nuts
x12
(A)
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
Front
V240822
Advertisement
Related Manuals for Tyger TRAX TG-TX7C29828
Summary of Contents for Tyger TRAX TG-TX7C29828
- Page 1 54-55 78-79 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left TYGER TRAX 8-1.25mm x 30mm Hex Bolts 8mm Clip Nuts Passenger/Right TYGER TRAX 8-1.25mm x 25mm Combo Bolts Driver/Left Mounting Brackets (A) 8mm Lock Washers...
- Page 2 TYGER TRAX ® Bottom View ATTENTION: Refer to the D or P labelling on the tubes to determine the Driver or Passenger side steps. XX-D Driver Left Side XX-D Front XX-P Passenger Right Side XX-P Front PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 3 (Fig 5) Remove rubber plugs from the Passenger/Right rear mounting location STEP 5 Select the Passenger/Right TYGER TRAX. Attach the TYGER TRAX (Fig 3) Attach (1) Passenger/Right to the Mounting Brackets with (6) 8mm Combo Bolts (Fig 6). DO Mounting Bracket (B) to the Clip Nuts NOT tighten hardware.
