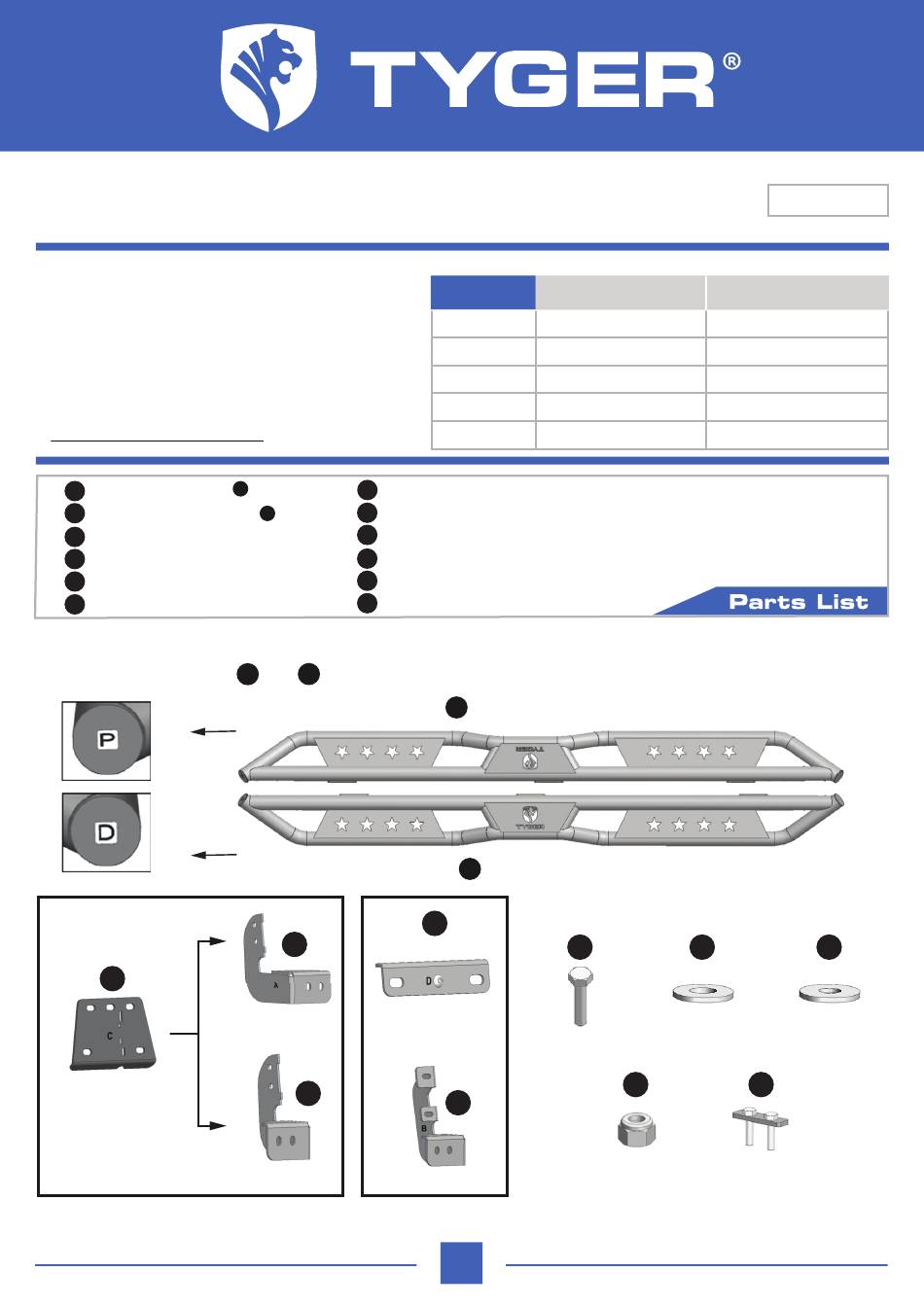

STAR STRIDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver Side Star Strider
x1
Passenger Side Star Strider
x1
Bracket [A]
x2
Bracket [B]
x2
Bracket [E]
x2
Support Bracket [D]
x2
ATTENTION: Refer to
Front
Front
x4
[C]
Front & Rear Bracket
Customer Support: www.tygerauto.com/contact
®
®
D
Front & Rear Bracket [C]
x4
8mm Nylon Lock Nut
P
x40
8-1.25mm x 25mm Hex Bolts
x8
8mm x 24mm x 2mm Flat Washers
x32
8mm x 16mm x 1.6mm Flat Washers
x16
8-1.25mm x 35mm Double Bolt Plates
x6
Top View
D
P
and
labelling on the side of the tubes to determine Driver and Passenger Star Striders
x2
[A] Bracket
Support Bracket
x2
[E] Bracket
[B] Bracket
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
P
Passenger Side Star Strider
D
Driver Side Star Strider
x2
x8
[D]
8mm x 25mm
Hex Bolt
x2
1/6
1/3
TG-SR2D74928
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
x32
8mm x 24mm x 2mm
8mm x 16mm x 1.6mm
Flat Washers
x40
x6
M8 Nylon
8mm Double
Lock Nut
Bolt Plate
6-7
22-23
44-45
78-79
x16
Flat Washers
V240325
Advertisement
Related Manuals for Tyger STAR STRIDER TG-SR2D74928
Summary of Contents for Tyger STAR STRIDER TG-SR2D74928
- Page 1 STAR STRIDER ® ® TG-SR2D74928 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY 15-16 22-23 DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 TYGER STAR STRIDER STAR STRIDER Reference the letters printed on the brackets to determine mounting locations Front Driver Side Star Strider Front Passenger Side Star Strider Bottom View Front Driver Side Star Strider Front Passenger Side Star Strider...
-
Page 3: Tools Required
STAR STRIDER TOOLS REQUIRED (3) 8mm x 24mm x 2mm Flat Washers (3) 8mm Nylon Lock Nut Ratchet 13mm Socket Front Extensions Wrench (Fig 2) Attached Bracket [C] STEP 1 MOUNTING BRACKETS Follow (Fig 1-15) to attach the brackets to the Driver Side. Front (Fig 3) Installed Bracket [C] Driver-side Front Mounting Area... - Page 4 STAR STRIDER Front Front (Fig 8) Installed Bracket [D] (Fig 5) Installed Bracket [A] to Bracket [C] (2) 8mm x 24mm x 2mm Flat Washers (2) 8mm Nylon Lock Nut Driver-side Center Mounting Area Front (3) studs Front (Fig 9) Attached Bracket [B] to Bracket [D] (Fig 6) Attach Support Bracket [D] to bottom center mounting studs Front...
- Page 5 STAR STRIDER (2) 8mm Hex Bolts Driver-side Rear Mounting Area (4) 8mm x 16mm x 1.6mm Flat Washers (2) 8mm Nylon Lock Nut (3) studs Front Front (Fig 11) Attach Front and Rear Bracket [C] to rear mounting studs (Fig 14) Attached Bracket [E] to Bracket [C] (3) 8mm x 24mm x 2mm Flat Washers (3) 8mm Nylon Lock Nut Front...
-
Page 6: Passenger Side
STAR STRIDER MOUNTING STEP 2 STEP 3 PASSENGER SIDE RUNNING BOARDS Follow (Figs 16-17) to install the driver-side running board. Repeat STEPS 1-2 for passenger side installation. Use Bracket [E] for the front location instead of [A]; Use Bracket [A] for the rear location instead of [E]. (3) 8mm Double Bolt Plates for Front, Center and Rear locations Rear...
