STEP BARS
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI-
FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

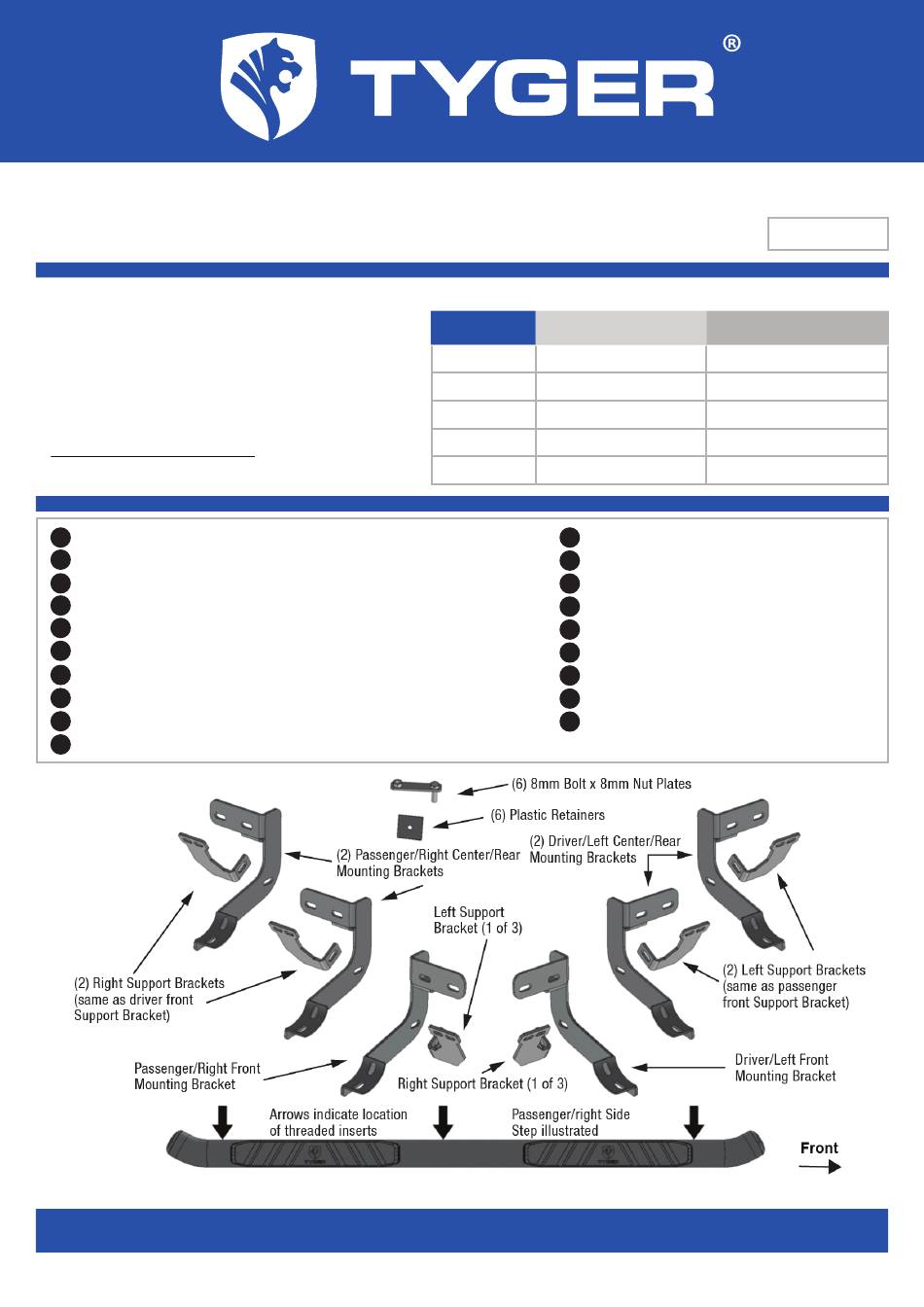

Driver/Left Sidebar
x1
Passenger/Right Sidebar
x1
Driver/left Front Mounting Bracket Only
x1
Passenger/right Front Mounting Bracket Only
x1
Driver/left Center and Rear Mounting Brackets
x2
Passenger/right Center and Rear Mounting Brackets
x2
Right Bend Support Brackets (drvr front, pass cntr and rear)
x3
Left Bend Support Brackets (pass front, driver cntr and rear)
x3
8mm Nut/Bolt Plates
x6
8mm Plastic Retainers
x6
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
Parts List
Customer Support: www.TygerAuto.com/Contact
1/7
Class 8.8 Torque (ft-lbs)
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
8-1.25mm x 25mm Combination Hex Bolts
x12
8-1.25mm x 30mm Hex Bolts
x18
8mm x 24mm x 2mm Flat Washers
x24
8mm Lock Washers
x12
8mm Hex Nuts
x6
8mm Nylon Lock Nuts
x6
6mm x 25mm Hex Bolts
x12
6mm x 22mm x 2mm Flat Washers
x24
6mm Nylon Lock Nuts
x12
TG-SS2D35118
6-7
22-23
44-45
78-79
125-126
V200914
Advertisement
Related Manuals for Tyger TG-SS2D35118
Summary of Contents for Tyger TG-SS2D35118
- Page 1 STEP BARS TG-SS2D35118 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI- FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A...
- Page 2 Passenger Side Installation Pictured STEP 1 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DRILLING MAY BE REQUIRED. STEP 2 (Fig 2) 8mm Bolt-8mm Nut Plate, NOTE: 8mm Bolt-Nut Plate is not required on models with threaded inserts Starting at the passenger/right side of the vehicle, remove the sealing tape covering the factory holes in the side of the inner...
- Page 3 b. Feed the threaded bolt on the Bolt Plate through one of the hex Remove Hex Bolt, rotate Bolt/Nut shaped factory holes, (Fig 4). 8mm Flat Washer Plate to line up threaded nut with 8mm Lock Washer c. Thread (1) 8mm Plastic Retainer onto the threaded end and body panel and Mounting Bracket 8mm Hex Nut (see arrow)
- Page 4 Models with factory threaded inserts: a. Attach the passenger/right Front Mounting Bracket directly to the threaded inserts with (2) 8mm x 30mm Hex Bolts, (2) 8mm STEP 4 Lock Washers and (2) 8mm Flat Washers, (Figs 9 & 10). Leave hardware loose Next, select the passenger/right front Support Bracket, (Figs 6 &...
- Page 5 (2) 6mm Hex Bolts (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Front Front (Fig 14) Attach passenger/right center Brackets (Fig 12) Attach Support Bracket to back of pinch weld (models with factory holes in pinch weld only) STEP 6 Move along the side of the body panel to the center mounting location, (Fig 13).
- Page 6 Passenger Side Installation Pictured Passenger Side Installation Pictured Front (2) 8mm Combo Hex Bolts (Fig 16) Passenger/right rear mounting location (Fig 18) Passenger/right front complete installation Rear (Fig 19) Passenger/right center (Fig 17) Passenger/right rear Brackets installed and rear Sidebar installation STEP 8 STEP 9 Properly level and adjust the Sidebar and fully tighten all...
- Page 7 c. Drill (2) 1/4” holes through the pinch weld for each Support Bracket. IMPORTANT: DO NOT drill too close to the bottom edge of the pinch weld. Adjust the Support Brackets as necessary to move the slots up the body panel away from the edge. Drill the holes toward the outside of the marked slots.
