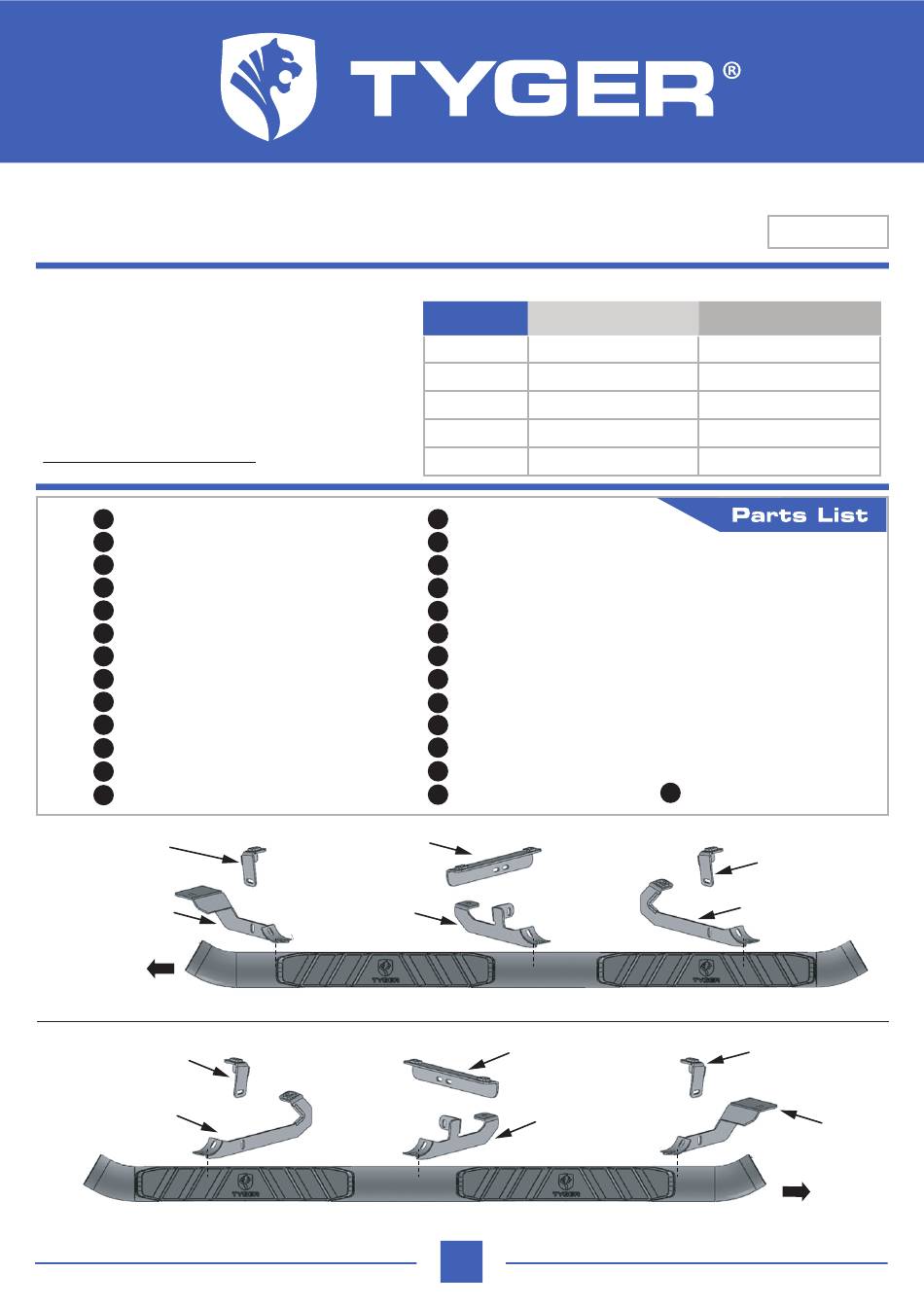

TYGER RIDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI-
FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver/Left Tyger Rider
x1
Passenger/Right Tyger Rider
x1
Driver/Left Front Mounting Bracket
x1
Passenger/Right Front Mounting Bracket
x1
Driver/Left Center Mounting Bracket
x1
Passenger/Right Center Mounting Bracket
x1
Driver/Left Rear Mounting Bracket
x1
Passenger/Right Rear Mounting Bracket
x1
Driver/Left Center Support Bracket
x1
Passenger/Right Center Support Bracket
x1
Driver/Left Front/Rear Support Brackets
x2
Passenger/Right Front/Rear Support Brackets
x2
Compression Plates
x2
Driver/Left Front
Support Bracket
Driver/Left Front
Mounting Bracket
Front
Passenger/Right
Rear Support Bracket
Passenger/Right Rear
Mounting Bracket
Customer Support: www.tygerauto.com/contact
®
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
10mm x 40mm Long Bolt Plate
x2
10mm x 40mm Short Bolt Plates
x2
10mm Spiral Bolts
x8
10mm x 60mm Hex Bolts
x2
10mm x 27mm OD X 3mm Flat Washers
x14
10mm Lock Washers
x14
10mm Hex Nuts
x14
10mm Plastic Retainers
x4
8mm x 25mm Combo Bolts
x12
8mm x 25mm Hex Bolts
x8
8mm x 24mm OD x 2mm Flat Washers
x16
8mm Lock Washers
x8
8mm Hex Nuts
x8
Driver/Left Center
Support Bracket
Driver/Left Center
Mounting Bracket
Passenger Right Side
1/7
Class 8.8 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
Driver Left Side
Passenger/Right
Center Support Bracket
Passenger/Right Center
Mounting Bracket
TG-SS2F35328
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
Rubber Trims
x2
Driver/Left Rear
Support Bracket
Driver/Left Rear
Mounting Bracket
Passenger/Right
Front Support Bracket
Passenger/Right Front
Mounting Bracket
Front
V240416
