TYGER GUARD
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT.
RECOMMENDED.
FAILURE TO IDENTIFY DAMAGE BEFORE INSTALLATION COULD
LEAD TO A REJECTION OF ANY CLAIM. IF ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. PLEASE ALSO SEND THE PICTURES, ORDER
NUMBER, AND DETAILS OF THE ISSUE TO
Torque Value
Fastener
Class 8.8 Tightening
Torque (ft-lbs)
Size
6mm
8mm
10mm
12mm
14mm
Passenger/Left Tube
Mounting Bracket
Passenger/Left Frame
Mounting Bracket
TM
SUPPORT@TYGERAUTO.COM
Class10.9 Tightening
Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
Driver/Right Tube
Mounting Bracket
Driver/Right Frame
Mounting Bracket
Customer Support: www.TygerAuto.com/Contact
TG-GD6T60178
ASSISTANCE IS
.
6-7
22-23
44-45
78-79
125-126
1/4
NOTE: May require cutting. Installation may inter-
fere with front mounted sensors. Not recom-
mended for vehicles with optional "active" laser
guided cruise control systems.
Parts List
Tyger Guard
x1
Driver/Left Tube Mounting Brackets
x1
Passenger/Right Tube Mounting Brackets
x1
Driver/Left Frame Mounting Bracket
x1
Passenger/Right Frame Mounting Bracket
x1
10-1.5mm x 35mm Hex Bolts
x4
10mm x 27mm OD x 3mm Flat Washers
x8
x4
10-1.5mm Nylon Lock Nuts
8-1.25mm x 35mm Hex Bolts
x4
8mm x 24mm OD x 2mm Flat Washers
x4
8mm Lock Washers
x4
6-1.0mm x 20mm Combo Bolts (license
x2
plate)
4mm Wrench
x1
V200916
Advertisement
Related Manuals for Tyger GUARD TG-GD6T60178
Summary of Contents for Tyger GUARD TG-GD6T60178

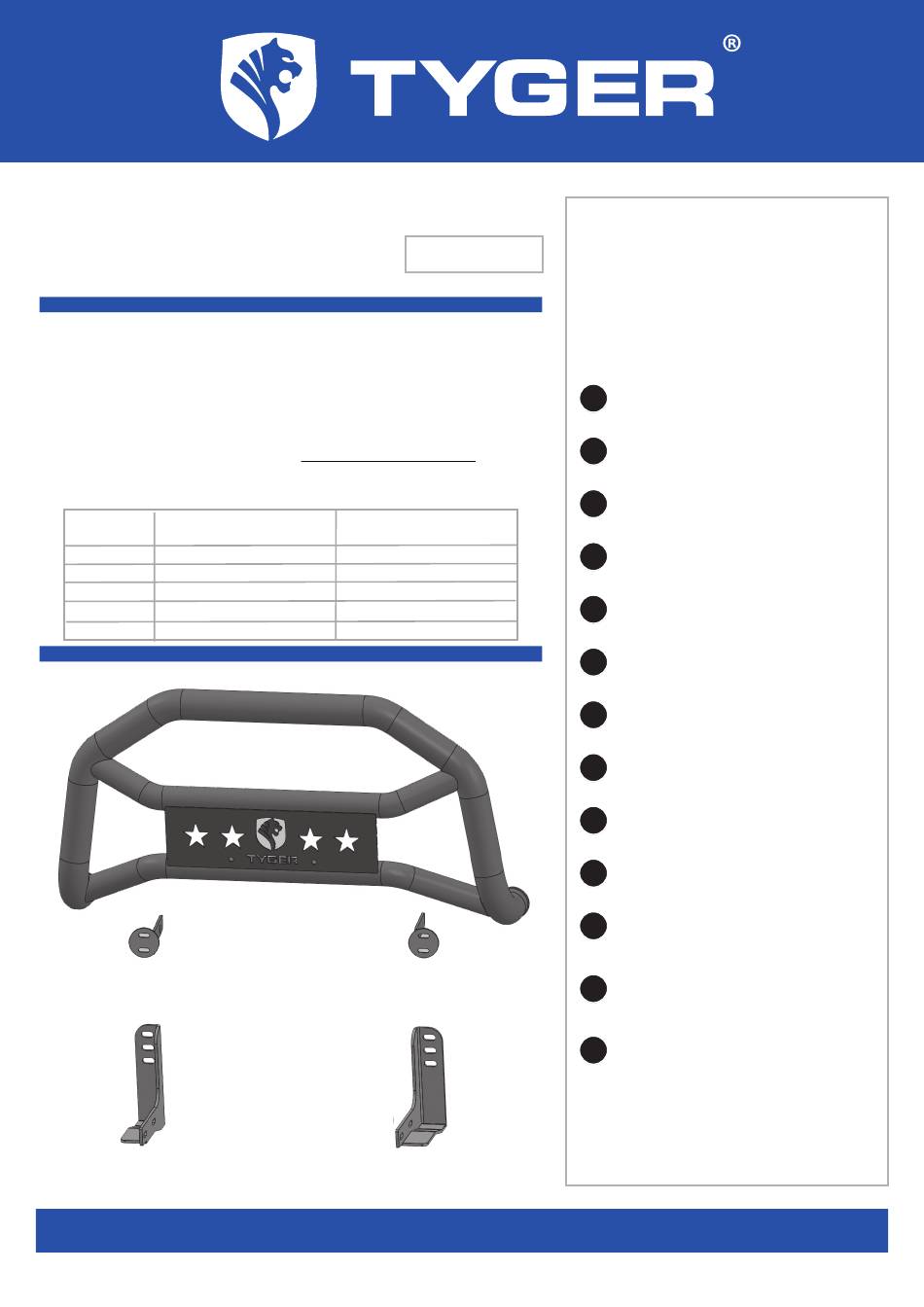

- Page 1 TYGER GUARD NOTE: May require cutting. Installation may inter- TG-GD6T60178 fere with front mounted sensors. Not recom- mended for vehicles with optional "active" laser guided cruise control systems. BEFORE INSTALLATION Parts List READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT.
