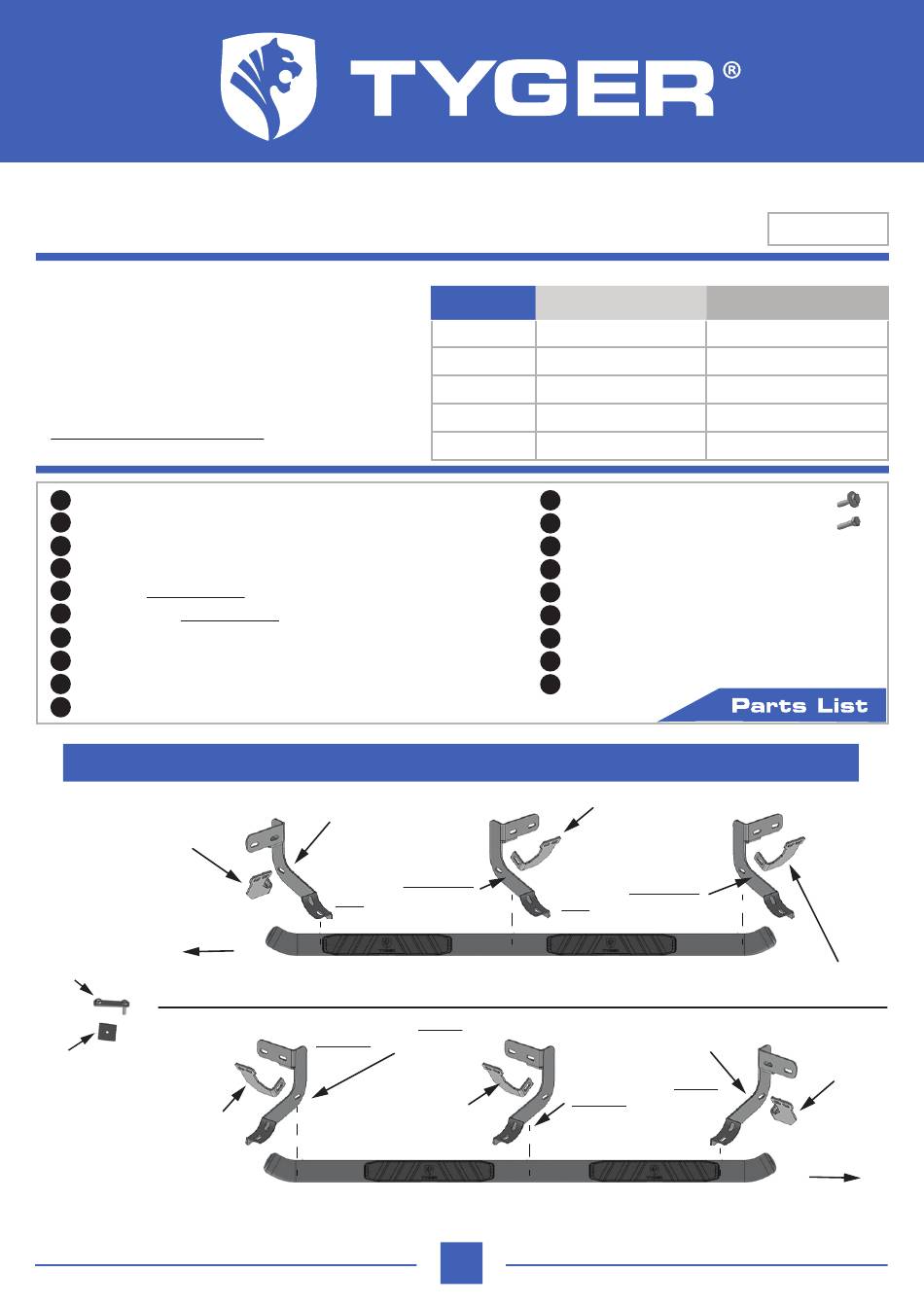

TYGER RIDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI-
FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver/Left Sidebar
x1
Passenger/Right Sidebar
x1
Driver/Left Front Mounting Bracket
x1
Passenger/Right Front Mounting Bracket
x1
Driver/Left Center and Rear Mounting Brackets
x2
Passenger/Right Center and Rear Mounting Brackets
x2
Support Brackets (driver front, passenger center and rear)
x3
Support Brackets (passenger front, driver center and rear)
x3
8mm Bolt Plates
x6
8mm Plastic Retainers
x6
Reference the letters printed on the brackets to determine mounting locations
Support Brackets (driver front,
passenger center and rear)
Front
(6) 8mm Bolt Plates
(6) Plastic Retainers
Support Brackets (driver front,
passenger center and rear)
Customer Support: www.tygerauto.com/contact
®
®
Driver/Left Front Mounting Bracket
Driver/Left Center and
Rear Mounting Brackets
Passenger/Right Center
and Rear Mounting Brackets
Support Brackets (driver front,
passenger center and rear)
Passenger Right Side
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
8-1.25mm x 25mm Combination Hex Bolts
x12
8-1.25mm x 30mm Hex Bolts
x18
8mm x 24mm x 2mm Flat Washers
x24
8mm Lock Washers
x12
8mm Hex Nuts
x6
8mm Nylon Lock Nuts
x6
6mm x 25mm Hex Bolts
x12
6mm x 22mm x 2mm Flat Washers
x24
6mm Nylon Lock Nuts
x12
Support Brackets (passenger front, driver center and rear)
Driver/Left Center and
Rear Mounting Brackets
Driver Left Side
Passenger/Right
Front Mounting Bracket
Passenger/Right Center
and Rear Mounting
Brackets
1/7
1/3
TG-SS2D35318
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
Support Brackets (passenger front,
driver center and rear)
6-7
Support Brackets
(passenger front,
driver center
and rear)
Front
V230608
Advertisement
Related Manuals for Tyger RIDER TG-SS2D35318
Summary of Contents for Tyger RIDER TG-SS2D35318
- Page 1 TYGER RIDER ® ® TG-SS2D35318 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI- FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A...
-
Page 2: Bottom View
TYGER RIDER Bottom View Front Driver Left Side Front Passenger Right Side STEP 1 STEP 3 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE Depending on for your model/year, determine which of the 2 PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE VERSIONS of STEP 3 you use to attach the passenger/right front STARTING INSTALLATION. - Page 3 TYGER RIDER Plastic Retainer (Fig 3) Thread (1) 8mm X 30mm Hex Bolt into the nut on the plate. Stop when bolt reaches end of nut as pictured (Fig 5) Thread Plastic Retainer onto Bolt Plate to hold Bolt Plate in position d.
- Page 4 TYGER RIDER Remove Hex Bolt. Rotate Bolt Plate VERSION 2: Models with factory threaded inserts in body 8mm Flat Washer to align threaded nut with the other panel: 8mm Lock Washer factory hole and Mounting Bracket 8mm Hex Nut (see arrow) a.
- Page 5 TYGER RIDER STEP 4 (2) 6mm Hex Bolts (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Next, select the Support Bracket (Figs 6 & 11) . NOTE: The Support Bracket used for the Passenger Front location is the same one used for Driver/Left Center and Rear locations.
- Page 6 TYGER RIDER Passenger Side Installation Pictured Passenger Side Installation Pictured Front (Fig 13) Passenger/Right Center location (Fig 16) Passenger/Right Rear location (Fig 14) Attach Passenger/Right Center Brackets Rear (Fig 17) Passenger/Right Rear Brackets installed STEP 8 (Fig 15) Passenger/Right Center Brackets installed Select the Passenger/Right Sidebar.
-
Page 7: Installation Complete
TYGER RIDER Passenger Side Installation Pictured c. Drill (2) 1/4” holes through the pinch weld for each Support Bracket. IMPORTANT: DO NOT drill too close to the bottom edge of the pinch weld. Adjust the Support Brackets as necessary to move the slots up the body panel away from the edge.
