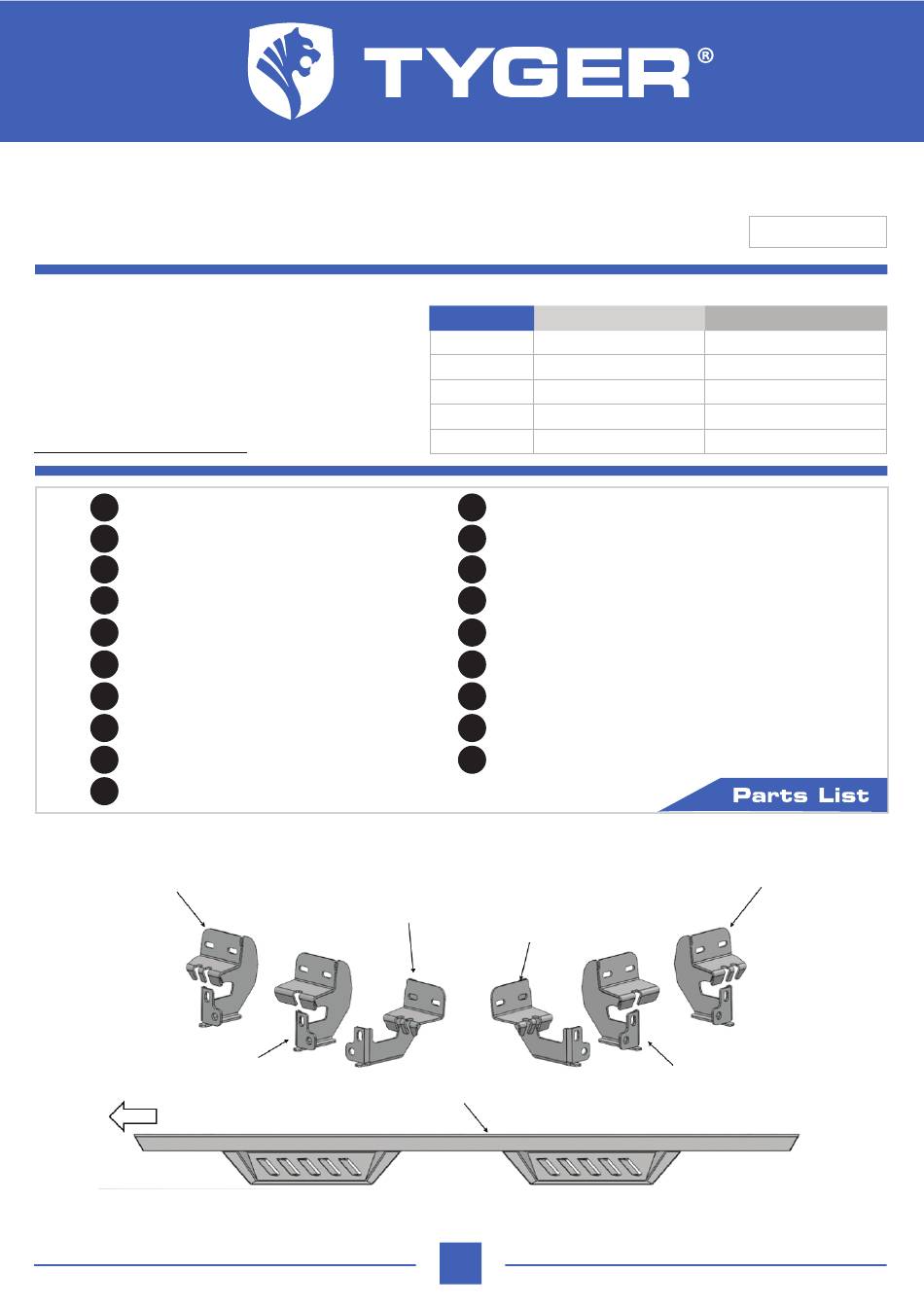

TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Driver Front and Passenger Rear Mounting Brackets
x2
Driver Rear and Passenger Front Mounting Brackets
x2
Driver/Left Center Mounting Bracket
x1
Passenger/Right Center Mounting Bracket
x1
8mm Bolt/Nut Plates
x6
8mm x 30mm Hex Bolts
x12
8mm x 25mm Combo Bolts
x12
8mm x 24mm OD x 2mm Flat Washers
x12
Passenger/Right Rear Bracket
(Same as Driver/Left Front Bracket)
Passenger/Right Center
Mounting Bracket
Front
Customer Support: www.tygerauto.com/contact
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
8mm Lock Washers
x12
8mm Hex Nuts
x6
8mm Plastic Retainers
x6
6mm x 25mm Button Head Bolts
x10
6mm x 18mm OD x 1.6mm Flat Washers
x20
6mm Serrated Flange Nuts
x10
16mm x 60mm Large Spacers
x4
16mm x 34mm Small Spacers
x2
x1
4mm Hex Wrench
Passenger/Right Front
Driver/Left Front
Mounting Bracket
Mounting Bracket
Driver/Left TYGER LanderX
1/4
Class 8.8 Torque (ft-lbs)
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
Driver/Left Rear Bracket
(Same as Passenger/Right Front Bracket)
Driver/Left Center
Mounting Bracket
TG-LX3D82348
6-7
22-23
44-45
78-79
125-126
V230511
