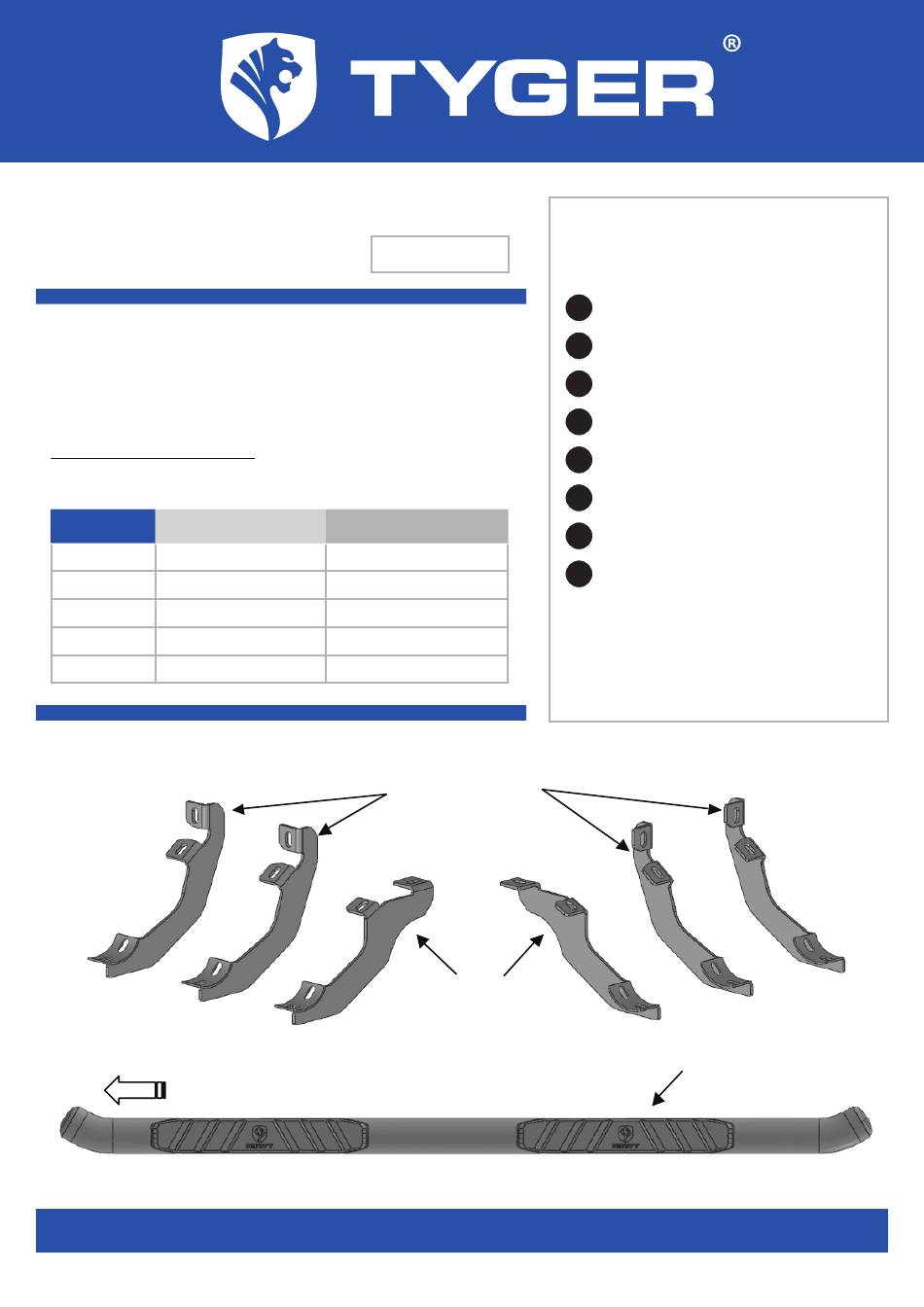

STEP BARS
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLAESE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
Front
®
TG-SS2F35148
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
(4) Center/Rear
Mounting Brackets
Customer Support: www.TygerAuto.com/Contact
Parts List
x1
x1
x2
x4
x12
x12
x12
6-7
x12
(2) Front Brackets
1/4
Driver/Left Sidebar
Passenger/Right Sidebar
Front Mounting Brackets
Center/Rear Mounting Brackets
10-1.5mm x 25mm Hex Bolts
10mm Lock Washers
10mm x 27mm x 3mm Flat Washers
8-1.25mm x 25mm Combo Bolts
Driver/Left
Sidebar
V200914
Advertisement
Related Manuals for Tyger TG-SS2F35148
Summary of Contents for Tyger TG-SS2F35148
- Page 1 STEP BARS ® Parts List TG-SS2F35148 Driver/Left Sidebar BEFORE INSTALLATION Passenger/Right Sidebar READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO Front Mounting Brackets IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 STEP 1 Front REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRES- ENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INS- TALLATION. (2) 10mm Hex Bolts STEP 2 (2) 10mm Lock Washers (2) 10mm Flat Washers Starting on the Driver/Left side inner rocker panel, locate the (Fig 2) Attach the Driver/Left Front Mounting Bracket to threaded mounting holes in the rocker panel, (Fig 1).
- Page 3 Front STEP 5 Repeat Step 3 to attach (1) Center/Rear Mounting Bracket to the rear location, (Figs 5, 7-8). (Fig 4) Driver/Left center mounting location Rear (2) 10mm Hex Bolts Front (2) 10mm Lock Washers (Fig 7) Driver/Left rear mounting location (2) 10mm Flat Washers Rear (Fig 5) Attach the Driver/Left Center and Rear...
- Page 4 Front (2) 8mm Combo Bolts (Fig 9) Attach the Driver/Left Sidebar to the Mounting Brackets (Fig 12) Driver/Left Sidebar attached to the Rear Mounting Bracket STEP 7 Level and adjust Sidebar and tighten all hardware. STEP 8 Repeat Steps 2-7 to attach the Passenger/Right Sidebar. (Fig 10) Driver/Left Sidebar attached to the Front Mounting Bracket STEP 9...
