MACROMEDIA COLDFUSION 5-ADVANCED ADMINISTRATION Manual page 313

Load-Balancing Devices
3
4
5
6
Using third-party load balancing devices in UNIX
Note
You cannot take advantage of ClusterCATS' support of Cisco LocalDirector using the
ClusterCATS Web Explorer. This capability is only available in the Windows-based
ClusterCATS Explorer. You can, however, configure Cisco LocalDirector as a
third-party load balancing device to work with ClusterCATS.
To integrate ClusterCATS with a third-party load balancing device:
1
2
3
4
5
Select Configure > Administration. Alternatively, you can right-click the cluster

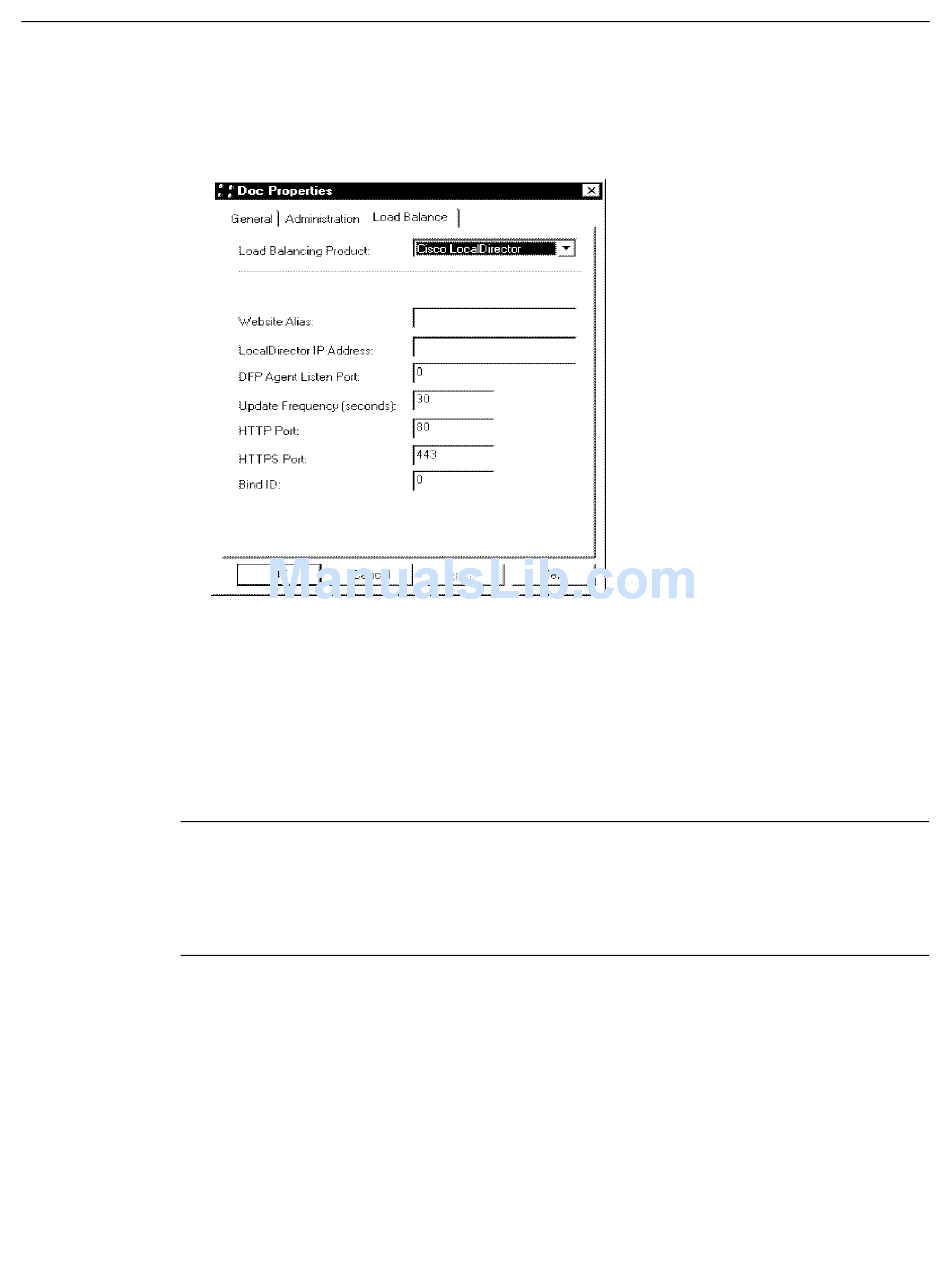

and select Configure > Configure. The Cluster Properties dialog box appears:
Select the Load Balance tab.
The selection in the Load Balancing Product drop-down list indicates how
ClusterCATS will actively load balance HTTP traffic across the cluster.
Enter the name of the Web site in the Website Alias field.
Click OK to apply your changes.
Open ClusterCATS Web Explorer if it is not already open.
Click the Show Cluster link.
Enter the fully qualified host name of the server you want to integrate with
another load balancing product in the Web Server Name field.
Click OK. The Cluster Member List page appears.
Click the Administration link under Cluster Attributes. The Cluster
Administration page appears.
295
