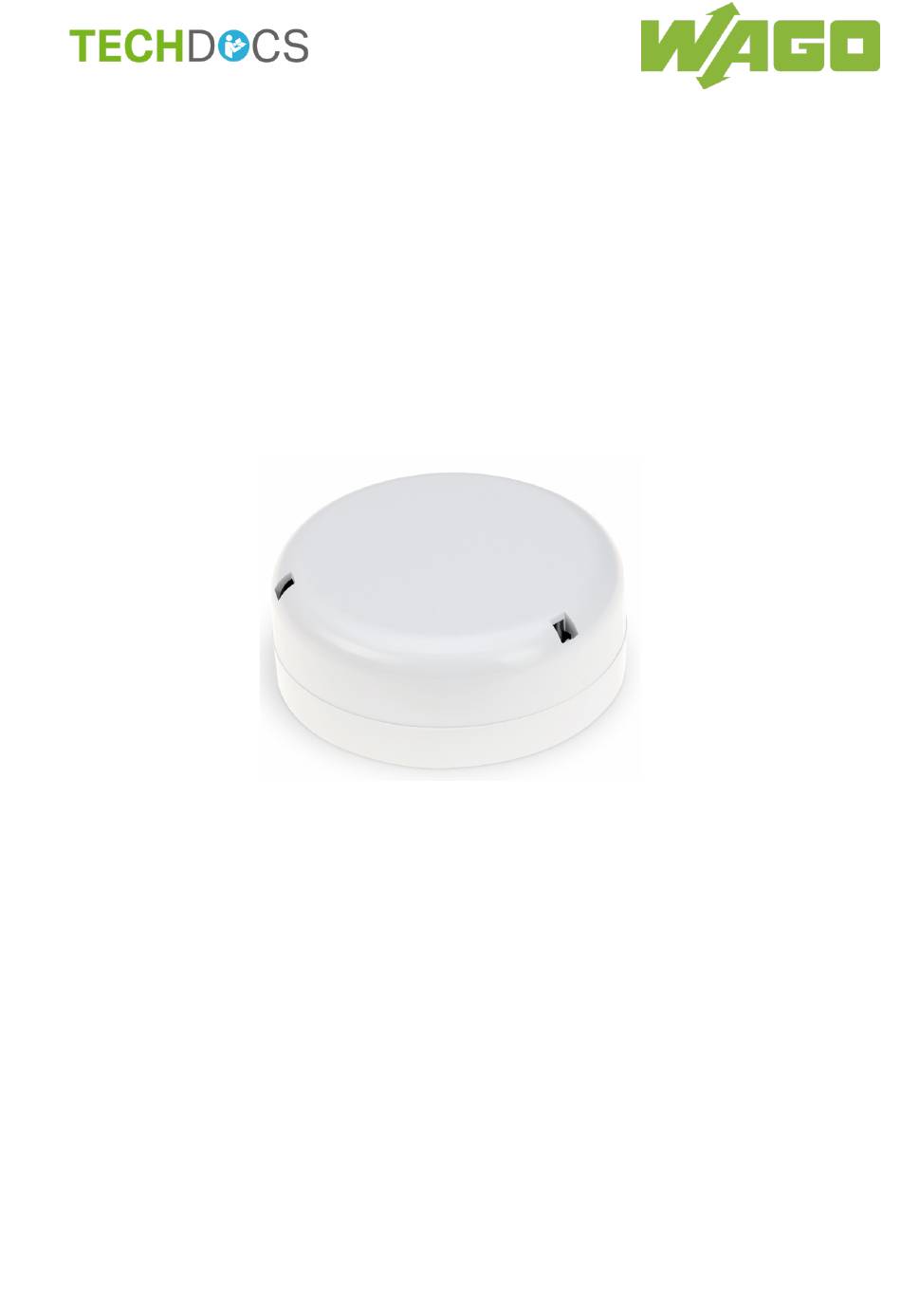

WAGO I/O System 750
750-940

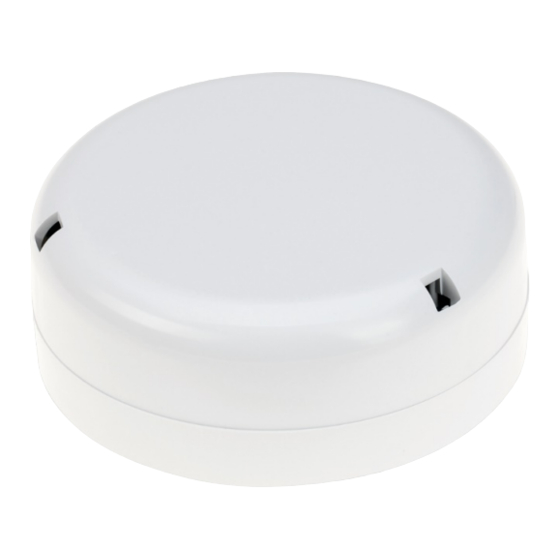

EnOcean RS-485 Gateway; 868 MHz
Version 1.3.0, valid from FW/HW Version 01/01
Pos: 3 /Alle Serien (Allgemeine Module)/Rechtliches, Allgemeines/Impressum für Standardhandbücher - allg. Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.docx @ 21060 @ @ 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750-940 and is the answer not in the manual?

Questions and answers

Related Manuals for WAGO 750-940

Summary of Contents for WAGO 750-940

  • Page 1 WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Version 1.3.0, valid from FW/HW Version 01/01 Pos: 3 /Alle Serien (Allgemeine Module)/Rechtliches, Allgemeines/Impressum für Standardhandbücher - allg. Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.docx @ 21060 @ @ 1...
  • Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. === Ende der Liste für Textmarke Einband_vorne === Manual...

  • Page 3: Table Of Contents

    WAGO I/O System 750 Table of Contents 750-940 EnOcean RS-485 Gateway; 868 MHz Pos: 5 /Dokumentation allgemein/Verzeichnisse/Inhaltsverzeichnis - Überschrift oG und Verzeichnis @ 3\mod_1219151230875_21.docx @ 21063 @ @ 1 Table of Contents Notes about this Documentation .............. 5 Validity of this Documentation ..............5 Copyright....................
  • Page 4 Table of Contents WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz 4.2.5 Process Input Data ................36 4.2.6 Process Output Data ................. 37 4.2.7 Basic Device Data ................37 Use as a Repeater in an EnOcean Network .......... 38 SMART ACK Functionality ..............

  • Page 5: Notes About This Documentation

    This documentation is only applicable from FW/HW Version 01/01. Pos: 12 /Serie 750 (WAGO I/O SYSTEM)/Hinweise zur Dokumentation (alte Struktur)/Gültigkeitsbereich/Gültigkeit I/O-Module 750-xxxx - Nur nach Anweisungen dieser Betriebsanleitung - ohne Koppler/Contro @ 37\mod_1597331495524_21.docx @ 588063 @ @ 1 The I/O module 750-940 must only be installed and operated according to the instructions in these operating instructions.

  • Page 6: Symbols

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Pos: 13.4 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Symbole - Überschrift 2 @ 13\mod_1351068042408_21.docx @ 105270 @ 2 @ 1 Symbols Pos: 13.5.1 /Alle Serien (Allgemeine Module)/Sicherheits- und sonstige Hinweise/Gefahr/Gefahr: _Warnung vor Personenschäden allgemein_ - Erläuterung @ 13\mod_1343309450020_21.docx @ 101029 @ @ 1...

  • Page 7: Number Notation

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos: 13.6 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1 Pos: 13.7 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Darstellung der Zahlensysteme - Überschrift 2 @ 23\mod_1435647128078_21.docx @ 184811 @ 2 @ 1...

  • Page 8: Important Notes

    Third-party products are always mentioned without any reference to patent rights. Thus, the existence of such rights cannot be excluded. Pos: 16.4 /Serie 750 (WAGO I/O SYSTEM)/Wichtige Erläuterungen (alte Struktur)/Personalqualifikation/Personalqualifikation 750-xxxx - Überschrift 3 und Inhalt @ 3\mod_1224061208046_21.docx @ 24063 @ 3 @ 1 2.1.2...

  • Page 9: Technical Condition Of Specified Devices

    These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •...

  • Page 10: 2.1.4.1.2 Packaging

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment. • Remove any added battery or memory card in the electrical and electronic equipment.

  • Page 11: Safety Advice (Precautions)

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz Pos: 16.11 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Sicherheitshinweise - Überschrift 2 @ 6\mod_1260180299987_21.docx @ 46724 @ 2 @ 1 Safety Advice (Precautions) Pos: 16.12 /Alle Serien (Allgemeine Module)/Sicherheits- und sonstige Hinweise/Einleitung Sicherheitshinweise Hardware @ 6\mod_1260180170493_21.docx @ 46720 @ @ 1...
  • Page 12 List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Protect the devices against seeping materials! The devices are not resistant to materials having seeping properties such as aerosols, silicones and triglycerides (found in some hand creams). Prevent all such materials from contacting the devices.

  • Page 13: Device Description

    Pos: 18 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 1/Gerätebeschreibung - Überschrift 1 @ 3\mod_1233756084656_21.docx @ 27096 @ 1 @ 1 Device Description Pos: 19 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Einleitung/FT&K/Gerätebeschreibung - Einleitung 750-0940 @ 36\mod_1588776711444_21.docx @ 581720 @ @ 1 The EnOcean RS-485 Gateway 750-940 is used to integrate radio sensors into...
  • Page 14 List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Elements.” In ESP3 mode, the termination is always switched on, in Repeater mode it is always switched off, regardless of the DIP switch position. A BIAS network can by switched on and off with a DIP switch; see Section “Operation Elements.”...

  • Page 15: View

    Pos: 21 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Ansicht - Überschrift 2 @ 4\mod_1240984217343_21.docx @ 31958 @ 2 @ 1 View Pos: 22 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Ansicht/FT&K/Ansicht 750-0940 @ 36\mod_1588776886057_21.docx @ 581724 @ @ 1 Figure 1: View of Closed EnOcean Gateway Table 3: Legend for Figure “View of Closed EnOcean Gateway”...

  • Page 16: Table 4: Legend For Figure "View Of Opened Enocean Gateway

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Figure 2: View of Opened EnOcean Gateway Table 4: Legend for Figure “View of Opened EnOcean Gateway” Item Meaning Enclosure cover Latch Printed circuit boards with PCB male header, SMA socket and DIP switches (see Sections “Connections”...
  • Page 17 WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz Figure 3: View of the mounting of the release bracket for the DIN-rail Pos: 23 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1 Manual Version 1.3.0, valid from FW/HW Version 01/01...

  • Page 18: Connectors

    Pos: 24 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Anschlüsse - Überschrift 2 @ 4\mod_1240984262656_21.docx @ 31961 @ 2 @ 1 Connectors Pos: 25 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Anschlüsse/E&S/Anschlüsse 750-0940 @ 36\mod_1588777255380_21.docx @ 581738 @ 3443 @ 1 The EnOcean Gateway has the following connections: •...

  • Page 19: 2-Wire Modular Pcb Connector

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 3.2.1 2-Wire Modular PCB Connector The external power supply is connected by two-conductor modular PCB connectors. Figure 6: Two-Conductor Modular PCB Conductors (Example) Additional information is available in Sections “Technical Data” and “Connecting Devices.”...

  • Page 20: Connection For Single Lines

    GND. Only use the Magnetic-Mount Antennas from WAGO. Only use the WAGO Magnetic-Mount Antenna GSM 850/2100 (Art. No.: 758-911) as external antenna for the EnOcean Gateway. The technical properties and compliance with the EMC and R&TTE Directives are only ensured when these antennas are used.

  • Page 21: Display Elements

    Pos: 27 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Anzeigeelemente - Überschrift 2 @ 4\mod_1240984390875_21.docx @ 31964 @ 2 @ 1 Display Elements Pos: 28 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Anzeigeelemente/FT&K/Anzeigeelemente 750-0940 @ 36\mod_1589034026410_21.docx @ 581851 @ @ 1 The EnOcean Gateway is equipped with two LEDs. The LEDs serve installation and service purposes and can only be seen when the enclosure is open.

  • Page 22: Operating Elements

    Pos: 30 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Bedienelemente - Überschrift 2 @ 4\mod_1239191655456_21.docx @ 30439 @ 2 @ 1 Operating Elements Pos: 31 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Bedienelemente/Bedienelemente I/O-Modul 750-0940 @ 36\mod_1589033816486_21.docx @ 581847 @ 3 @ 1 The EnOcean Gateway is configured with two DIP switch panels.

  • Page 23: Dip Switch Settings

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 3.4.1 DIP Switch Settings The EnOcean Gateway hardware properties are set with the four-position DIP switch (“DIP2”). Figure 10: Four-Position DIP Switch (“DIP2”) for Configuring the EnOcean Functions...

  • Page 24: Table 12: "Bit-Coded Modbus Address

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Table 12: “Bit-Coded Modbus Address” DIP Switch Positions Modbus address Invalid address * Valid address (1) Valid address (2) Valid address (3) Valid address (4) Valid address (5)

  • Page 25: Schematic Diagram

    Pos: 33 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Schematisches Schaltbild - Überschrift 2 @ 4\mod_1240984441312_21.docx @ 31967 @ 2 @ 1 Schematic Diagram Pos: 34 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Schematische Schaltbilder/FT&K/Schematisches Schaltbild 750-0940 @ 36\mod_1588777695127_21.docx @ 581746 @ @ 1 Figure 12: Schematic Circuit Diagram Pos: 35 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1...

  • Page 26: Technical Data

    Pos: 36 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Technische Daten - Überschrift 2 @ 3\mod_1232967587687_21.docx @ 26924 @ 2 @ 1 Technical Data Pos: 37 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Technische Daten/FT&K/Technische Daten 750-0940 @ 36\mod_1588777753133_21.docx @ 581750 @ 222222 @ 1 Device Data Table 14: Technical Data –...

  • Page 27: Connection Technology

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 3.10 Connection Technology Table 17: Technical Data – Connection Technology Connection technology 2-Conductor Compact PCB Connectors with PUSH WIRE ® Conductor cross-section: solid 0.4 mm² … 0.8 mm² / AWG 26 … 20 Strip length 6 mm …...

  • Page 28: Approvals

    3.13 Approvals Pos: 40 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Zulassungen/Allgemein/Zulassungen I/O-Modul 750-xxxx Allgemein, ohne Variantenangabe - Einleitung @ 4\mod_1237460656921_21.docx @ 28643 @ @ 1 The following approvals have been granted to 750-940 I/O modules: Pos: 41 /Alle Serien (Allgemeine Module)/Zulassungen/Standardzulassungen/CE (Konformitätskennzeichnung) @ 3\mod_1224494777421_21.docx @ 24276 @ @ 1 Conformity Marking Pos: 42 /Alle Serien (Allgemeine Module)/Zulassungen/Standardzulassungen/cULus (UL61010-2-201) @ 25\mod_1456305700986_0.docx @ 202311 @ @ 1...

  • Page 29: Standards And Guidelines

    3.14 Standards and Guidelines Pos: 51 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Normen und Richtlinien/EMV-Normen I/O-Modul 750-xxxx, ohne Variantenangabe - Einleitung @ 4\mod_1242803944015_21.docx @ 33642 @ @ 1 750-940 I/O modules meet the following requirements on emission and immunity of interference: Pos: 52 /Alle Serien (Allgemeine Module)/Normen und Richtlinien/EMV-Normen - Standard/EMV CE-Störfestigkeit EN 61000-6-2 @ 4\mod_1242797655625_21.docx @ 33591 @ @ 1...

  • Page 30: Function Description

    Pos: 57 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 1/Funktionsbeschreibung - Überschrift 1 @ 4\mod_1239025975389_21.docx @ 30003 @ 1 @ 1 Function Description Pos: 58 /Serie 750 (WAGO I/O SYSTEM)/Funktionsbeschreibung/Funktionsbeschreibung 750-0940 - Betriebsarten @ 36\mod_1588779092039_21.docx @ 581782 @ 2332333333322 @ 1 The EnOcean Gateway can be configured for different applications via DIP switches: •...

  • Page 31: Use As Enocean Gateway In Esp3 Mode

    The module uses the ESP3 protocol for communication and supports the EnOcean profile EEP 2.1. The native ESP3 telegrams are exchanged between the EnOcean Gateway and a serial remote station (e.g., a WAGO 750-652 I/O Module) in a 1:1 connection. Communication is through an RS-485 interface.

  • Page 32: Esp3 Protocol

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Specific FEEEED mode parameters: • Activation telegram: [0xFE, 0xEE, 0xED] • Timeout for deactivation: 350 milliseconds • Buffer size for ESP3 telegrams: 6 ESP3 telegrams 4.1.2 ESP3 Protocol...

  • Page 33: Use As Enocean Gateway In Modbus Mode

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz Use as EnOcean Gateway in Modbus Mode In Modbus mode, the EnOcean Gateway serves as the Modbus slave and establishes a connection between the protocol types EnOcean ESP3 and Modbus.

  • Page 34: Register Layout

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz 4.2.1 Register Layout Table 20: Register Layout Reg. Byte Write Default Description Access Value Modbus address Value range = 1 ... 247 Reset device Value range: 1 (reset) Reset ESP3 report buffer.

  • Page 35: Modbus Address

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 4.2.2 Modbus Address The Modbus address is a value between 1 and 247 and is set with the DIP switches; see also Section “DIP Switches.” Note To accept configuration changes, restart EnOcean Gateway.

  • Page 36: Resetting The Device

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz 4.2.3 Resetting the Device If register 1 is written with a “1,” the EnOcean Gateway generates a response report and then automatically initiates a software-controlled restart. E.g., if a new Modbus address is filed on the module via the register communication, the module must be restarted before the new Modbus address can be used for Modbus communication.

  • Page 37: Process Output Data

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 4.2.6 Process Output Data The Modbus master sends an ESP3 report by writing in the EnOcean Gateway process output register. Next, the Modbus master receives a response with a message indicating whether the ESP3 report was received.

  • Page 38: Use As A Repeater In An Enocean Network

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Use as a Repeater in an EnOcean Network In repeater mode, the EnOcean Gateway works in single-level mode. Radio telegrams received by the EnOcean devices are immediately forwarded once.

  • Page 39: Connect Devices

    Pos: 60 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 1/Geräte anschließen - Überschrift 1 @ 3\mod_1234172889468_21.docx @ 27460 @ 1 @ 1 Connect Devices Pos: 61 /Serie 750 (WAGO I/O SYSTEM)/Anschließen/Gerät anschließen 750-940 @ 36\mod_1588779391523_21.docx @ 581790 @ 22222333333 @ 1 The EnOcean Gateway is connected according to the desired operating mode.

  • Page 40: Connection Of The Enocean Gateway In Esp3 Mode

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz To release the line, press the connector lock downward: For the position of the two-wire modular PCB connector on the board, see Section “View.” Connection of the EnOcean Gateway in ESP3 Mode The EnOcean Gateway is connected with the RS-485 interface of the higher-level controller via a data cable.
  • Page 41 WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz Figure 14: Connection of the EnOcean Gateway to a Higher-Level Controller with ESP3 Mode To connect the EnOcean Gateway as a gateway in ESP3 mode, proceed as...

  • Page 42: Connection Of The Enocean Gateway In Modbus Mode

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz mounting surface is non-conductive to avoid negatively influencing the antenna performance. Attach the mounted cable to the strain relief. Set the enclosure cover with the printed circuit board onto the enclosure bottom of the EnOcean Gateway and close it by turning gently to the left.
  • Page 43 WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz Figure 15: Connection of the EnOcean Gateway in a Modbus System with External Power Supply through a Modbus Master Figure 16: Connection of the EnOcean Gateway in a Modbus System with Power Supply through a...
  • Page 44 List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz To connect the EnOcean Gateway as a gateway in Modbus mode, proceed as follows: To open the EnOcean Gateway, disengage the enclosure cover by turning gently to the right.

  • Page 45: Connection As A Repeater In An Enocean Network

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz DIN-rail mounting is also possible when the Gateway is closed. As an alternative, the EnOcean Gateway can be completely prepared before mounting and then mounted to a DIN-rail when closed.

  • Page 46: External Antenna Connection

    Section “Operating Elements”. Only use the Magnetic-Mount Antennas from WAGO. Only use the WAGO Magnetic-Mount Antenna GSM 850/2100 (Art. No.: 758-911) as external antenna for the EnOcean Gateway. The technical properties and compliance with the EMC and R&TTE Directives are only ensured when these antennas are used.

  • Page 47: Installing The External Antennal

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 5.5.3 Installing the External Antennal To mount the external antenna to the EnOcean Gateway, proceed as follows: To open the EnOcean Gateway, disengage the enclosure cover by turning gently to the right.

  • Page 48: Restrictions On Range

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz 5.5.5 Restrictions on Range The following factors can restrict the radio signal range: • Hollow lightweight walls with foil-faced mineral wool • Suspended ceilings with metal or carbon fiber panels •...

  • Page 49: Fresnel Zone

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz 5.5.6 Fresnel Zone Just having a direct line of connection between transmitter and receiver without any obstacles is not enough to ensure the maximum radio range (open air) is reached.

  • Page 50: Enocean Performance Characteristics

    WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz Pos: 63 /Serie 750 (WAGO I/O SYSTEM)/Funktionsbeschreibung/Funktionsbeschreibung 750-0940 - Leistungsmerkmale @ 36\mod_1588780652159_21.docx @ 581803 @ 12 @ 1 EnOcean Performance Characteristics The radio standard “EnOcean” was developed for automation solutions in the building technology area.

  • Page 51: Enocean Characteristic Data

    WAGO I/O System 750 List of Figures 750-940 EnOcean RS-485 Gateway; 868 MHz EnOcean Characteristic Data Table 21: EnOcean Characteristic Data Conventional energy Push of a button, vibration, motion, heat, light, etc. Frequency band 868.3 MHz Transmission power 10 mW EIRP max.

  • Page 52: Appendix

    Appendix Pos: 66 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Zubehör - Überschrift 2 @ 25\mod_1459942208263_21.docx @ 206238 @ 2 @ 1 Accessories Pos: 67 /Serie 750 (WAGO I/O SYSTEM)/Zubehör/Zubehör für 750-0940 @ 36\mod_1588781179134_21.docx @ 581811 @ @ 1 Table 22: Accessories Accessories...

  • Page 53: Dimension Drawing

    Pos: 68 /Alle Serien (Allgemeine Module)/Überschriften/Ebene 2/Maßzeichnung - Überschrift 2 @ 38\mod_1619443330493_21.docx @ 609163 @ 2 @ 1 Dimension drawing Pos: 69 /Serie 750 (WAGO I/O SYSTEM)/Gerätebeschreibung (alte Struktur)/Technische Daten/Abmessungen/Abmessungen EnOcean-Modul @ 38\mod_1619525006143_21.docx @ 609329 @ @ 1 Figure 20: Dimension drawing Manual Version 1.3.0, valid from FW/HW Version 01/01...

  • Page 54: List Of Figures

    List of Figures WAGO I/O System 750 750-940 EnOcean RS-485 Gateway; 868 MHz === Ende der Liste für Textmarke Inhalt_mitte === Pos: 71 /Dokumentation allgemein/Verzeichnisse/Abbildungsverzeichnis - Überschrift oG und Verzeichnis @ 3\mod_1219222916765_21.docx @ 21080 @ @ 1 List of Figures Figure 1: View of Closed EnOcean Gateway ............

  • Page 55: List Of Tables

    WAGO I/O System 750 List of Tables 750-940 EnOcean RS-485 Gateway; 868 MHz Pos: 73 /Dokumentation allgemein/Verzeichnisse/Tabellenverzeichnis - Überschrift oG und Verzeichnis @ 3\mod_1219222958703_21.docx @ 21084 @ @ 1 List of Tables Table 1: Number Notation ..................7 Table 2: Font Conventions ..................7 Table 3: Legend for Figure “View of Closed EnOcean Gateway”...
