INDEX 1 - GATE OPERATOR CLASSIFICATIONS ........4 15 - GATE SYSTEM LOGIC FUNCTION ...........20 15.1 - First operation after a frequency 2 - SAFETY ACCESSORY SELECTION ..........4 inverter is installed on the operator (Gate travel recognition) ................20 3 - ENTRAPMENT PROTECTION TYPES ......... 4 15.2 - From the second activation on, when the control board is disconnected from the power 4 - IMPORTANT SAFETY INSTRUCTIONS ........
2 - SAFETY ACCESSORY SELECTION All UL325 PPA compliant gate operators will accept external entrapment protection devices to protect people from motorized gate systems. UL325 requires that the type of entrapment protection correctly matches each gate application.
4 - IMPORTANT SAFETY INSTRUCTIONS WARNING This equipment is to be installed and serviced by a professional gate operator technician only. It is important that the specialized installer follow all instructions given in this manual. To Reduce the Risk of Severe Injury or Death: READ AND FOLLOW ALL INSTRUCTIONS Never let children operate or play with door controls.

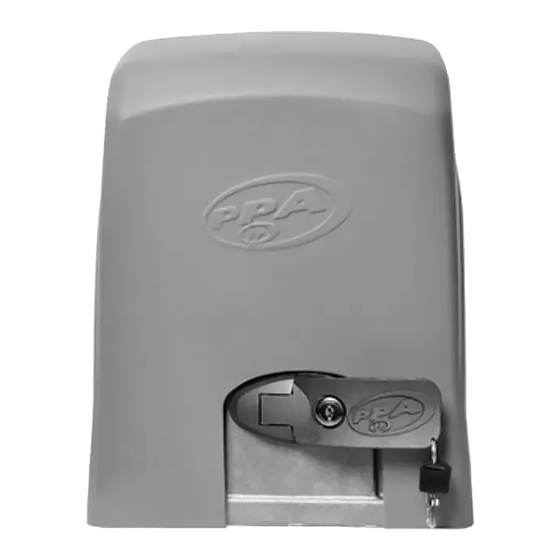

One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm). 5 - TECHNICAL SPECIFICATION DZ PREDIAL JET FLEX DZ CONDOMINIUM DZ 1500 JET FLEX Model 60HZ U JET FLEX 60HZ U 60HZ (Z12) U...
This equipment must be wired with 120V as specified in the table below (assuming max current consumption). Wire Size (American Wire Gauge) / Max Distance in Feet DZ PREDIAL DZ CONDOMINIUM DZ 1500 AC power 14 AWG 12 AWG 14 AWG...
The conduit may be limited to 1/2 "in diameter for external devices like pushbuttons or sensors. All conduits must be UL approved. 9 - INSTALLING AND FIXING THE OPERATOR Equipment dimensions: Model DZ PREDIAL Models DZ CONDOMINIUM and DZ 1500 12.28 in 6.18 in 7.99 in 11.57 in...
Page 9
The perfect operation of this equipment depends on the instructions in this manual. To fix the equipment, follow these steps: Step 1: Make sure the floor is firm enough so it can be screwed the equipment so that it is on the level. If it not meet the requirement, provide a concrete pad, following the guidelines below: 5.90 in 9.84 in...
Page 10
Step 4: Make the pre-alignment from operator to the gate, positioning the rack on the gear and leaning the set the gate. Then, mark the fixing holes in the floor or concrete pad. Step 5: Make the hole for fixing, positioning of the aligned operator to the gate and enter the anchor bolts ½ "x 4" without tightening them.
Page 11
Step 7: Set the rack to the fullest extent of the gate leaf with solder or screw every 11.81 or 15.75 inches. Step 8: If the gate leaf this warped, provide shims to ensure alignment of the rack. In some cases that the rack must pass the length of the sheet.
10 - LIMIT SWITCH INSTALLATION Step 1: With the gate closed, place the magnet support on the rack, positioned in front with Reed's operator. This magnet will trigger the close limit switch. Step 2: Open the gate completely and place the other magnet support on the rack, in front of the operator REED. This magnet will trigger the open limit switch.
It is endowed with an EEProm2 memory which stores the acquired remote controls’ codes in a encripted way. This memory can be removed to be used in another compatible PPA product, such as PPA’s loose receiver ‘Alcance’ and vice versa. The control board is also compatible to rolling code remote controls, with PPA’s protocol.
12.2 - Power Supply The power supply must be connected to the ‘R’ and ‘S’ inputs on the power terminal blocks, the CN7 Connector. WARNING Be sure that the circuit breaker in the electrical panel is in the OFF position before attempting to connect any wiring to the control board.
12.5 - ‘TRAVA’ Audio Alarm connection It is used to connect, through a “PPA Relay Module”, the buzzer for audio alarm. This “electronic piezo” will sound when an alarm condition occurred. The operation of this output will be explained in “Inherent Entrapment Protection System”.
13 - ENTRAPMENT PROTECTION SYSTEMS 13.1 - Internal Entrapment Protection System (Type A) This operator contains an inherent entrapment protection system (position sensor and current sensor) that allows the equipment to detect the presence of obstacles during either the opening or closing cycle. The gate will reverse direction if an obstruction is detected.
13.3 - ‘FOT’ closing cycle photoelectric sensor WARNING The control board only starts the closing movement when this sensor is already working properly. IMPORTANT Use only Miller Edge 4-wire pulsed sensors to comply with UL325 For proper operation it is important to connect the enclosure of the sensors (photoelectric receiver side) to the chassis ground of the operator.
13.5 - Miller Edge reflexi Gard Connection PREPARING PHOTOEYE Reassemble the photoeye. To align the photoeye assemble the hood on then reflector. Place the photocell directed at the reflector and check the green light below the photocell lens (it will turn solid green when properly aligned).
13.6 - ‘ABR’ audio alarm reset connection Connection for an external reset button. This button is used to turn off the audio alarm and to reset the operator after a Hard Shutdown has occurred. Terminal block 1: GND (-); Terminal block 5: ABR (N.O. Contact). 14 - FORCE ADJUSTMENT IMPORTANT To reduce the risk of SEVERE INJURY or DEATH:...
14.2 - ‘FME’ Low Speed Force Adjustment Before starting the adjustment of the operating force, the gate operator must be recorded with the limit and operating normally, for more information see topics "10" and "15". In this condition sets the Dip Switch 1 and 6 (FME) to the ON position and press the (-) button until the blue LED (OSC) flashes. Return the Dip 1 and 6 to the OFF position and give a command to move the gate, see if the gate can reach the closing and opening gate catch post.
16 - INVERTER PARAMETERS PROGRAMMING 16.1 - Operator model selection The control board can operate, by using the same firmware, in both gates / doors and barriers. To select the model, just remove the TST jumper and close the pines C/P (Cancel/Gate). When the function is selected the led “OSC” flashes fast for a certain period of time and then indicates its value, The following table shows the number of flashes for each function: Numbers of flashes...
Page 22
Programming functions chart: Function Description Function selector. It selects the underlined functions and selects the function to add and erase transmitters (TX). Function: Add and erase transmitters (TX) 1 – Add: When this only switch is on 'ON" position, the control board is ready to add or erase transmitters (TX).
Page 23
ENABLING FOLLOWER (MIRRORED) PHOTOCELL. In some facilities, such as gated communities, it is necessary to the gate to close automatically as soon as the vehicle gets out from the gate path. In order to do so, one must install one photocell and enable the 'follower' (AKA mirrored) function.
328 transmitters can be added. 19.1 – Remote control functions Depending on the model, PPA remote controls have two or three buttons. Thus, a single control may open two or three different gates. Below, the functions of the remote controls are described:...
19.2 - The remote control battery WARNING To prevent possible SERIOUS INJURY or DEATH: • NEVER allow small children near batteries. • If battery is swallowed, immediately notify a doctor. To reduce risk of fire, explosion or chemical burn: • Replace ONLY with 3V CR2032 coin batteries.
22 - USER OPERATION To activate your operator, press for 1 second, the PPA remote button with the machine. If the remote control is operated while the gate is opening, the gate operator will stop and will remain that way until the remote control...
If the remote control is activated while the gate is closing, for security reasons, the gate will stop and automatically open. 22.1 - Unlocking (manual release and operation) In case of power failure, the equipment has an unlocking system to open and close the gate manually. 1) To operate the gate in manual mode, turn the key counter-clockwise;...
23.2 - Flashing lights Alert the pedestrian exit or driveway in a particular location. The flag comes into operation when the gate is activated to open and off so that it is fully closed and off (this accessory not included). 24 - EVENT / FAILURE INDICATION 24.1 - Microcontroller functioning indication The main function of the 'OSC' LED is to indicate if the board's microcontroller is properly running (it blinks with a stable frequency...
24.6 - Open end-of-stroke indication 'FC' LED blinks when the gate is on an open end-of-stroke area. 24.7 - Close end-of-stroke indication 'FC' LED keeps lit when the gate is on a closed end-of-stroke area. 24.8 - Capacitor load indication 'BUS' LED indicates that the high voltages capacitors are charged.
