Technical Manual

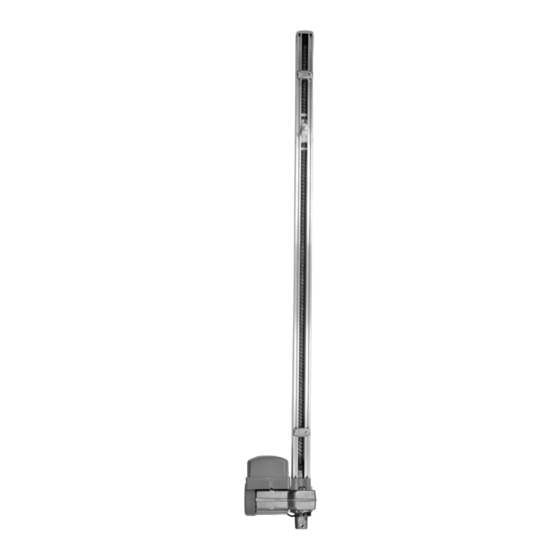

BV POTENZA
PREDIAL
WARNING:
Do
not
operate
the
Made by: Motoppar Indústria e Comércio de Automatizadores Ltda
equipment without first
Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - Garça - SP - CEP 17406-200 - Brasil
reading the instruction
CNPJ: 52.605.821/0001-55
P30705 - 05/2022
Rev. 1
manual.
www.ppa.com.br | +55 14 3407 1000
Advertisement
Table of Contents
Related Manuals for PPA BV POTENZA PREDIAL CUSTOM
Summary of Contents for PPA BV POTENZA PREDIAL CUSTOM
- Page 1 Made by: Motoppar Indústria e Comércio de Automatizadores Ltda equipment without first Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - Garça - SP - CEP 17406-200 - Brasil reading the instruction CNPJ: 52.605.821/0001-55 P30705 - 05/2022 Rev. 1 manual. www.ppa.com.br | +55 14 3407 1000...
- Page 2 INDEX IMPORTANT SECURITY INSTRUCTIONS Recommendation: For the installation of the equipment, it is important that a PPA specialist installer follow all instructions given in this technical manual and in the user manual. IMPORTANT SECURITY INSTRUCTIONS ................... 3 With the user’s manual, the installer must TECHNICAL CHARACTERISTICS ....................
- Page 3 TECHNICAL CHARACTERISTICS TOOLS REQUIRED FOR INSTALLATION Here are some tools required to install the automation: Lara Charantola – Tradutora Traduções e Versões Técnicas POTENZA POTENZA POTENZA PREDIAL POTENZA PREDIAL CUSTOM PREDIAL CUSTOM SP PREDIAL SP OPERATOR OVERHEAD OVERHEAD OVERHEAD OVERHEAD MODEL Single phase Single phase...
- Page 4 PRECAUTIONS WITH THE GATE BEFORE - The cable for the fixed wiring must comply with NBR NM 247-3; INSTALLATION - The power conductor of a product for internal use must be a flexible cable 3 x 0.75 mm²; 500 V, according to the norm NBR NM 247-5;...
- Page 5 Step 3: Insert the closing stop with the rubber facing the drive nut. To install the equipment, follow the steps below: Step 1: The gate axis shall be between 100 mm and 300 mm below the central point of the gate leaf. ARTICULATING GATE LEAF HALF OF...
- Page 6 Step 6: Position the automation vertically on the door column and weld the mounting Step 9: With the gate closed, maintain a 50 mm tilt on the drive lever, respecting brackets on the column, respecting the measurements in the figure below. a distance from the center of the turning point of the drive lever and the center of the drive nut pin.
- Page 7 Assembly: that is available for download at www. Fairing: Gear: ppa.com.br and make all connections and configurations. MAINTENANCE In the table below, we will mention some PROBLEMS - DEFECTS, PROBABLE CAUSES AND CORRECTIONS - which may occur in your operator. Before any maintenance, it is necessary to completely disconnect the electricity.
