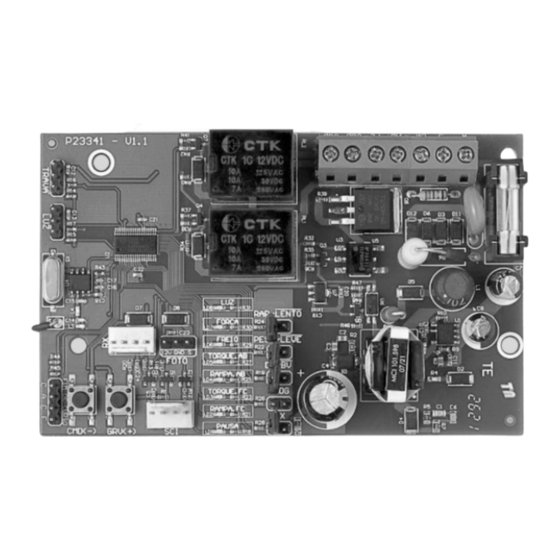

- Page 1 CENTRAL AGILITY POP CONNECT TECHNICAL MANUAL ATTENTION Do not use the equipment without first reading instruction manual. P09852 - 12/2021 Rev. 0...
-
Page 2: Technical Characteristics
TECHNICAL CHARACTERISTICS • 433.92MHz Receiver Module; • 164 fixed code controls; • 82 PPA standard rolling code controls; • Output for garage lock and light modules; • Analog limit switch; • Photocell input; • Electronic clutch adjustment; • Entry to pushbutton;... - Page 3 DELETE TRANSMITTERS Clears memory to record new transmitters. 1. With the gate stopped, close jumper TX, LED1 starts flashing 2x until any button is pressed. 2. Press CMD button for three seconds until LED2 flashes quickly, confirming the action. 3. Remove jumper to finish AUTOMATIC / SEMI –...
- Page 4 TORQUE ON RAMP The board will decrease the operating torque as soon as it reaches the programmed ramp. Torque is set separately for opening and closing. 1. With gate stopped, close JPROG jumper, LED1 starts flashing 2x until any button is pressed. 2.
- Page 5 REVERSAL closing limit switch of the gate to reversal. Select the type of transmitter protocol (TX): CODE TYPE • Rolling Code (PPA); • Fixed Code 9 levels • 0 (Disabled) OPENING DELAY • 1 minimum • 8 Maximum...
- Page 6 FCF: FCA: FOT: ST – STATUS: Signals the opening or closing state. FCF: Identifies the position between reed and drive nut magnet FCA: Identifies the position between reed and drive nut magnet FOT: Identifies the photocell pulse RF: Identifies radio frequency signal FACTORY PATTERN FACTORY PATTERN: In this screen press (-) until you reach factory pattern done, press the keys (-) and (+) for 5...
- Page 7 BRAKE To increase the brake level, just press the (+) key and to decrease it, just press the (-) key. STRENGTH The force leaves the factory at the maximum level, to decrease it just press the (-) key to the desired level, to increase it just press the (+) key.
- Page 8 SETTINGS COMMAND TABLE Parameters Select function Enter the function Increment Decrement Automatic Time Press 1 x CMD (-) 1 x GRV (+) GRV (+) CMD (-) Closing Ramp Press 2 x CMD (-) 1 x GRV (+) GRV (+) CMD (-) Closing Torque Press 3 x CMD (-) 1 x GRV (+)
- Page 9 Due to the credibility and trust placed on PPA products, we will add 275 more days to the period mentioned above, reaching a warranty period of one year, likewise counted from the time of acquisition proven by consumer through proof of purchase (Customer Receipt).
