Technical Manual

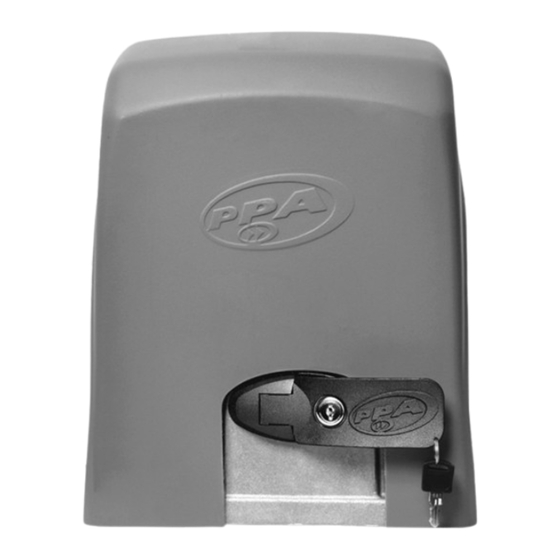

DZ FORT
WARNING:
Do not use the equipment
Made by: Motoppar Indústria e Comércio de Automatizadores Ltda
without first reading the
Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - Garça - SP - CEP 17406-200 - Brasil
instruction manual.
CNPJ: 52.605.821/0001-55
P30456 - 03/2022
Rev. 0
www.ppa.com.br | +55 14 3407 1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DZ FORT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PPA DZ FORT

  • Page 1 Made by: Motoppar Indústria e Comércio de Automatizadores Ltda without first reading the Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - Garça - SP - CEP 17406-200 - Brasil instruction manual. CNPJ: 52.605.821/0001-55 P30456 - 03/2022 Rev. 0 www.ppa.com.br | +55 14 3407 1000...
  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS INDEX Recommendation: For the installation of the equipment, it is important that the PPA specialized installer follow all the instructions mentioned in IMPORTANT SAFETY INSTRUCTIONS ..................3 this TECHNICAL MANUAL and in the USER MANUAL. TECHNICAL CHARACTERISTICS ....................4 Equipped with the USER MANUAL, the TOOLS REQUIRED FOR INSTALLATION ..................
  • Page 3: Technical Characteristics

    TOOLS REQUIRED FOR INSTALLATION NOTE: This product is manufactured with a straight M6 grease fitting that allows for easy greasing of the internal crown, as the gearmotor Below are some tools needed to install the operator: does not need to be disassembled for maintenance to be carried out, providing speed and convenience for installers.
  • Page 4: Care With The Electrical Installation

    GATE CARE BEFORE AUTOMATION CARE WITH THE ELECTRICAL INSTALLATION Before adapting the machine to the gate, check the slip, following the instructions below: To avoid damage to the wiring, it is important that all conductors are correctly 1st Step: Before installing the operator, check if the gate is in good mechanical attached to the operator.
  • Page 5: Installation And Fixing Of The Operator

    3rd Step: Check that the gate leaf does not get stuck in the opening and closing 2nd Step: The dimensions of the base must be appropriate for the dimensions of movement. The gate’s sliding rail must be perfectly straight, level, periodically free the operator.
  • Page 6 4th Step: Pre-align the operator to the gate, positioning the rack over the gear and 6th Step: With the operator unlocked, position the rack bar over the gear and leaning the set against the gate. Then mark the fixing holes in the floor or concrete aligned with the gate.
  • Page 7: Analog Limit Switch Installation

    ANALOG LIMIT SWITCH INSTALLATION 8th Step: If the gate leaf is warped, provide wedges to ensure rack alignment. There are cases where the rack will need to extend the length of the sheet. In this case, provide a French hand so that you do not jump your teeth when starting the machine.
  • Page 8 2nd Step: Fully open the gate and place the other magnet support on the rack, 3rd Step: Start the engine and observe if the REED’s are shutting down correctly. facing the operator’s REED. This magnet will act as the opening limit switch. If necessary, invert the board connector.
  • Page 9 Board: Size: which is available for download at Mounting: Fairing: www.ppa.com.br, and carry out all the Gear: DEFECTS PROBABLE CAUSES CORRECTIONS connections and configurations. A) Make sure the electrical network...
