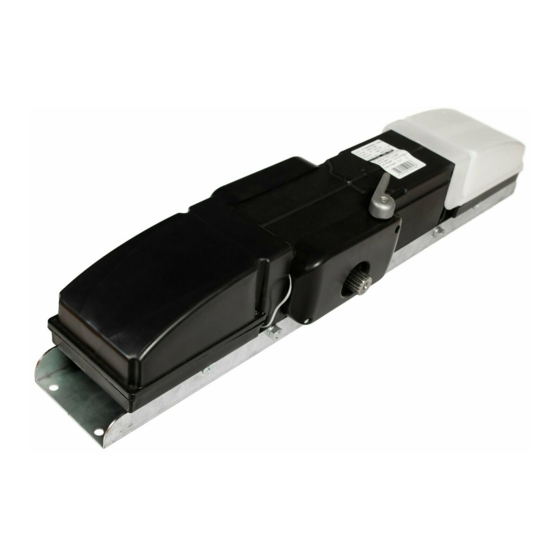

Summary of Contents for PPA TORSION
-
Page 3: Table Of Contents
INDEX Important safety instructions ..................3 Technical specifications ....................4 Tools required for installation ..................5 Electrical installation ....................5 Caring for the gate before operator ................6 Installing and fixing the operator ................6 Maintenance ......................11... -
Page 4: Important Safety Instructions
With the USER MANUAL, the installer must provide all the information, uses and safety items of the equipment to the user. Before using the TORSION OPERATOR, read and follow all instructions contained in this manual carefully. - Before installing the operator, make sure that the local power supply is compatible with the requirement of the equipment identification label;... -
Page 5: Technical Specifications
TECHNICAL CHARACTERISTICS PARAMETER AND TECHNICAL CHARACTERISTICS OPERATOR TYPE SWING RATED VOLTAGE 230 V LEAF MASS (MAX.) 400 Kg NOMINAL FREQUENCY 50 Hz RATED POWER 300 W MOTOR ROTATION 4600 rpm NOMINAL CHAIN 2,5 A LINEAR SPEED 11m/min REDUCTION 1:800 MANEUVERS 60 cycles/hours DEGREE OF PROTECTION IPX 0... -
Page 6: Tools Required For Installation
TOOLS REQUIRED FOR INSTALLATION Here are some tools required to install the operator: PLIERS SAWING BOW SOCKET WRENCH SCREWDRIVER NUT WRENCH LADDER FRAME DRILL PENCIL SANDER WELDING MACHINE HAMMER LEVEL TAPE MEASURE ELECTRICAL INSTALLATION For electrical installation, the network shall contain the following characteristics: - Electrical network 230V;... -
Page 7: Caring For The Gate Before Operator
CARE WITH THE GATE BEFORE OPERATOR Before applying the automation to the gate, some procedures should be taken: - Check the mechanical conditions, whether the balancing is correct and whether the opening and closing are suitable. Remove any equipment not necessary for the operation of the apparatus, such as locks, ropes, chains, tools, among others - The unlocking (manual release) must be installed at a height of less than 1,8 m;... - Page 8 460,16 mm 477,36 mm 520,8 mm 1º Step: Position the operator system on the gate leaf, taking as a reference the distance of 110 mm between the central axis of the operator system and the axis of the gate leaf. 110 mm...
- Page 9 Step 2: Check that the tip of the operator shaft is positioned 10 mm off the line of the gate connecting. Step 3: It is necessary to weld or fasten the base structure of the operator directly to the gate leaf. FIXATION BASE OF OPERATOR...
- Page 10 Step 4: Fix the gate operator at the base of the gate with screws. FIX THE OPERATOR Step 5: Position the sheath assembly support on the top of the gate and install it through the screw, obeying the distance of 110 mm between the end of the gate leaf and the sheath assembly.
- Page 11 (according to the model on the side) which is the Reduction: Technology: Voltage: board part of the operator. After doing this, refer Board: Size: to the PBX manual that is available for download Assembly: Fairing: at www.ppa.com and make all connections and Gear: configurations...
-
Page 12: Maintenance
MAINTENANCE In the table below, we will mention some PROBLEMS - DEFECTS, PROBABLE CAUSES AND CORRECTIONS - which may occur in your operator. Before any maintenance, it is necessary to completely disconnect the power grid. DEFECTS PROBABLE CAUSES CORRECTIONS A) Power off A) Make sure the mains power is turned on correctly B) Open/ burned fuse...
