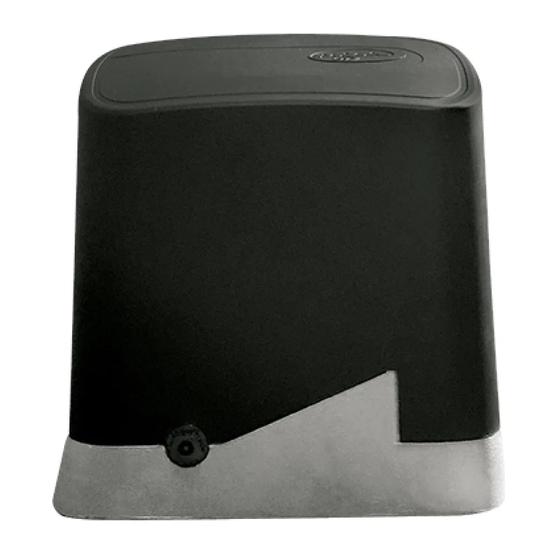

PPA DZ HOME Technical Manual

Hide thumbs

Advertisement

Table of Contents

MOTOPPAR INDÚSTRIA E COMÉRCIO DE AUTOMATIZADORES LTDA.
A
v. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial
CEP 17400-000 - Garça - SP - Brasil
Fone / Fax: (14) 3407-1100
www.ppa.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DZ HOME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PPA DZ HOME

Summary of Contents for PPA DZ HOME

  • Page 1 MOTOPPAR INDÚSTRIA E COMÉRCIO DE AUTOMATIZADORES LTDA. v. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial CEP 17400-000 - Garça - SP - Brasil Fone / Fax: (14) 3407-1100 www.ppa.com.br...
  • Page 2 TECHNICAL MANUAL DZ HOME Warning: Do not use the product without first reading the instruction...

  • Page 3: Table Of Contents

    INDEX Important safety instructions ................3 Technical characteristics ................... 4 Tools required for installation ................5 Electrical installation ..................5 Care with the electrical installation ..............6 Care with the gate before operator ..............7 Installing and fixing the operator ............... 8 Equipment dimensions ..................

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTION Recommendation: For the installation of the equipment, it is important that the specialized installer follow all the instructions quoted in this TECHNICAL MANUAL and in the USER MANUAL. With the USER MANUAL, the installer must present all information, uses and safety items of the equipment to the user.

  • Page 5: Technical Characteristics

    Class B, 130 ° C Class B, 130 ° C LIMIT SWITCH ANALOG ANALOG ANALOG DZ HOME JET FLEX / DZ HOME BLDC OPERATOR TYPE BLDC SLIDING JET FLEX SLIDING RATED VOLTAGE 220 V / 127 V 220 V / 127 V...

  • Page 6: Tools Required For Installation

    TOOLS REQUIRED FOR INSTALLATION Here are some tools required to install the operator: PLIERS SAWING BOW SOCKET WRENCH SCREWDRIVER NUT WRENCH LADDER FRAME DRILL PENCIL SANDER WELDING MACHINE HAMMER LEVEL TAPE MEASURE ELECTRICAL INSTALLATION For electrical installation, the network shall contain the following characteristics: - Electric network 127V or 220V;...

  • Page 7: Care With The Electrical Installation

    CARE WITH ELECTRICAL INSTALLATION To avoid damage to the wiring, it is important that all conductors be properly attached to the operator. Wiring must be done through conduits, passing internally through the base of the floor, ensuring that none of the wiring conductors are trapped and damaged.

  • Page 8: Care With The Gate Before Operator

    CARE WITH THE GATE BEFORE OPERATOR Before adapting the machine to the gate, check the slide by following the instructions below: 1º Step: Before Installing the operator, check that the gate is in good mechanical condition, ie opening and closing properly. Open the gate manually and observe the effort required.

  • Page 9: Installing And Fixing The Operator

    3º Step. Make sure that the gate leaf does not jam in the opening and closing movement. The slide rail of the gate must be perfectly rectilinear, level, unobstructed periodically from any element or dirt that makes it difficult to slide the pulleys all the way, as shown in the figure below.
  • Page 10 The correct operation of this equipment depends on the instructions in this manual. To secure the equipment, proceed as follows: 1º Step: Make sure that the floor is firm enough so that the equipment can be screwed so that it is level. If it does not comply with the requirement, provide a concrete base, following the guidelines below: 150 mm 250 mm...
  • Page 11 3º Step: Once the conditions have been fulfilled, open the gate completely and position the operator system near the face of the gate leaf, obeying the 50 mm measurement between the leaf end and the operator. GATE LEAF 4º Step: Pre-align the operator to the gate, positioning the rack over the gear and pushing the assembly against the gate.
  • Page 12 5º Step: Make the hole for the fixing, positioning the operator aligned to the gate. Before tightening the S ¼ "x 2 ½" bolts, move the gate, making sure that it does not lean against the operator in the course of its course. If this occurs, back off the operator.
  • Page 13 7º Step: Fix the rack to the entire length of the gate leaf with solder or screw every 300 or 400 mm. 300 or 400 mm 300 or 400 mm 8º Step: If the door leaf is warped, provide shims to ensure the alignment of the rack.

  • Page 14: Analog Limit Switch Installation

    9º Step: After fixing the rack, definitely fix the operator on the floor or concrete base, definitely tightening the screws. TIGHTEN THE 2 SCREWS S ¼ "X 2 ½" FOR FIXATION TIGHTEN THE 2 SCREWS S ¼ "X 2 ½" FOR FIXATION ANALOG LIMIT SWITCH INSTALLATION 1º...
  • Page 15 MAGNET SUPORT REED SUPORT UPPER VIEW 2º Step: Fully open the gate and place the other magnet holder on the rack, facing the REED operator. This will act as a magnet to opening limit switch. OPENING GATE MAGNET SUPORT RACK...
  • Page 16 MAGNET SUPORT REED SUPORT UPPER VIEW 3º Step: Start the engine and see if the REED's are shutting off properly. If necessary, invert the connector on the board. After attaching the magnet holders, make final BRACKET BRACKET adjustments by moving to ADJUSTMENT ADJUSTMENT the right or left, depending...

  • Page 17: Maintenance

    Assembly: to the board manual that is available Fairing: Gear: for download at www.ppa.com and make all connections and settings. MAINTENANCE In the table below, we will mention some PROBLEMS - DEFECTS, PROBABLE CAUSES AND CORRECTIONS - which may occur in the operator. Before any maintenance, it is necessary to completely disconnect the mains.

This manual is also suitable for:

Dz home bldcDz home jet flex
