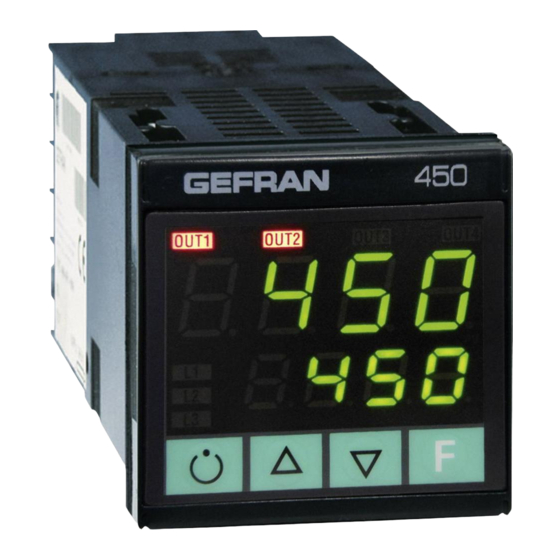

gefran 450-D-R-0 Installation And Operation Manual

PAUL-GOTHE-GmbH Bochum
Wittener Straße 82
D-44789 Bochum
for
Temperature controller (36.022 and 36.022-DUO)
Before use check the electrical condition of the appliance. For your safety: Don't connect with the power
supply if you can see any damage.
The temperature controller can be used in conjunction with the permissible temperature sensors
according to specification for controlling of heating elements / cartridges.
More information and the Declaration of Conformity can be found at service and support on:
www.paulgothe.com
How to use:
1 Connect the temperature couple to the NiCr-Ni port.
2 Connect the power supply from the heating cartridges / heating elements at the electric socket.
3 Connect the power supply from the controller and meet all necessary protective measures according
to local regulations. Use the power switch at the rear to turn the unit on.
4 Set the desired temperature with the arrows.
5 Heating modes are indicated by left LED (left LED indicates heating, right LED permanent light).
6 Device is provided with a breakage protection element. Should the temperature couple fail, no
output voltage is enabled.
7. If temperature more as 400 °C the alarm function will be activated and heating stopped (right LED
goes out.
Technical Data
Housing:
Operating conditions:
Supply voltage:
Operating range:
Output voltage:
Protection:
If at the power exit is no 220V ("not heating"):
Please disconnect controller from power and open the cover:
1. Please check the fuse at the main switch and the fuse inside the unit (DUO: fuses) and replace them
if necessary (5 A slow-blow, only the DUO-Version: fuse at the main switch: 10 A).
2. If fuse is OK, please replace relay (replacement relay is glued). Instructions for replacing the relay
can be found on our website under Service and Support.
If the controller continuously supplies 220V ("don't regulate but constant power"):
1. Exchange the relay (replacement relay is glued). Instructions for replacing the relay can be found
on our website under Service and Support.
More information and the Declaration of Conformity can be found at service and support on:
Manual
Material: Makrolon ® (thermoplast. polycarbonate plastic)
-10 ... +50°C
max. 230 V, 48 ... 62 Hz
depending on the temperature sensor NiCr-Ni: 20 ... 390 °C
2 x max. 250 V, max. 5 A, circuit via contactor for heating
IP 35
www.paulgothe.de 10/17
