TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

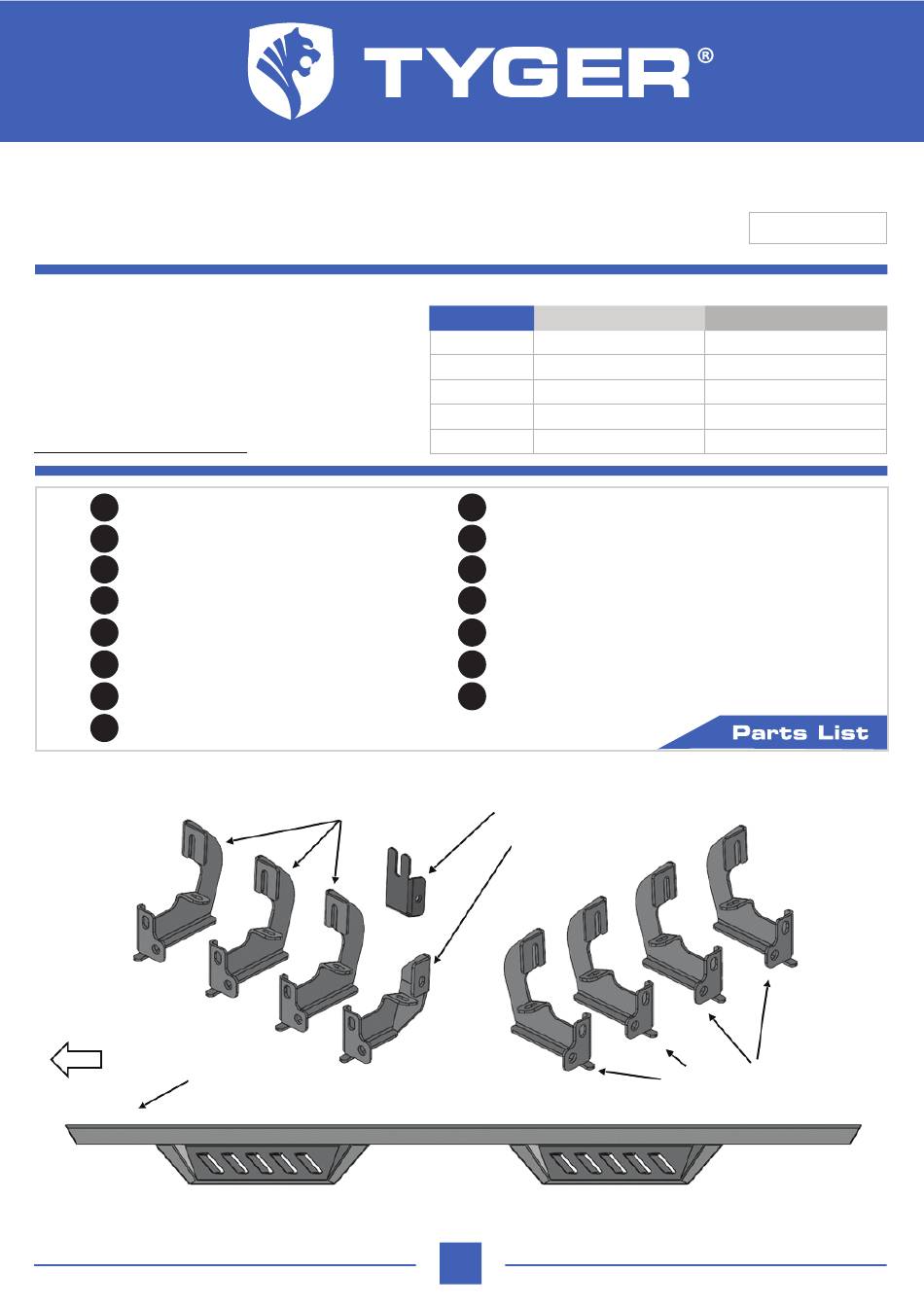

Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Passenger/Right Front Upper Support Bracket
x1
Passenger/Right Front Lower Mounting Bracket
x1
Passenger/Right Rear Mounting Brackets
x3
Driver/Left Mounting Brackets
x4
8mm x 35mm Bolt Plate
x1
8mm Lock Washers
x17
Front
Driver/Left TYGER LanderX
Customer Support: www.tygerauto.com/contact
(3) Passenger/Right
Rear Mounting Brackets
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
8mm x 24mm x 2mm Flat Washers
x17
8mm x 28mm x 3mm Flat Washers
x1
8mm Nylon Lock Nuts
x1
8mm-1.25mm x 25mm Hex Bolts
x16
8mm-1.25mm x 40mm Hex BoltsRear Mounting Brackets
x1
8mm Clip-On Nuts
x15
8mm x 25mm Combo Hex Bolts
x16
Passenger/Right Front
Upper & Lower Brackets
1/6
TG-LX3C82328
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
(4) Driver/Left
Mounting Brackets
6-7
V230511
Advertisement
Related Manuals for Tyger LanderX TG-LX3C82328
Summary of Contents for Tyger LanderX TG-LX3C82328
- Page 1 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left TYGER LanderX 8mm x 24mm x 2mm Flat Washers Passenger/Right TYGER LanderX 8mm x 28mm x 3mm Flat Washers Passenger/Right Front Upper Support Bracket 8mm Nylon Lock Nuts Passenger/Right Front Lower Mounting Bracket 8mm-1.25mm x 25mm Hex Bolts...
- Page 2 TYGER LanderX PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. Factory 8mm threaded ON MODELS WITH DEF TANK, SELECT A FLAT, LEVEL AREA FOR insert in body panel INSTALLATION. MAY REQUIRE CUTTING.
- Page 3 (3) hex bolts to remove cover Remove (2) factory bolts to remove tank straps STEP 5 Select the Driver/Left TYGER LanderX. Attach the Step to the Mounting Brackets with (8) 8mm Combo Bolts (Fig 6). DO NOT tighten hardware. Driver/Left Side Installation Pictured...
- Page 4 TYGER LanderX a.On models with plastic lower tray under the tank, remove the (1) 8mm x 25mm Hex Bolt (3) hex bolts attaching the tray to the frame (Fig 7), and (1) 8mm Lock Washer remove the tray. (1) 8mm x 24mm Flat Washer b.Release the tank filler hose.
- Page 5 (1) 8mm x 24mm Flat Washer Rear (Fig 15B) 2017-on Passenger DEF cut for example only STEP 12 (Fig 14) Secure the side of the Repeat STEP 5 to attach the Passenger/Right TYGER LanderX. Lower Bracket to the Upper Bracket...
- Page 6 TYGER LanderX STEP 13 Once the Sidebar has been attached and all hardware fully tightened, reinstall the DEF tank and cover, if equipped, as described in STEP 6. STEP 14 Do periodic inspections to the installation to make sure that all...
