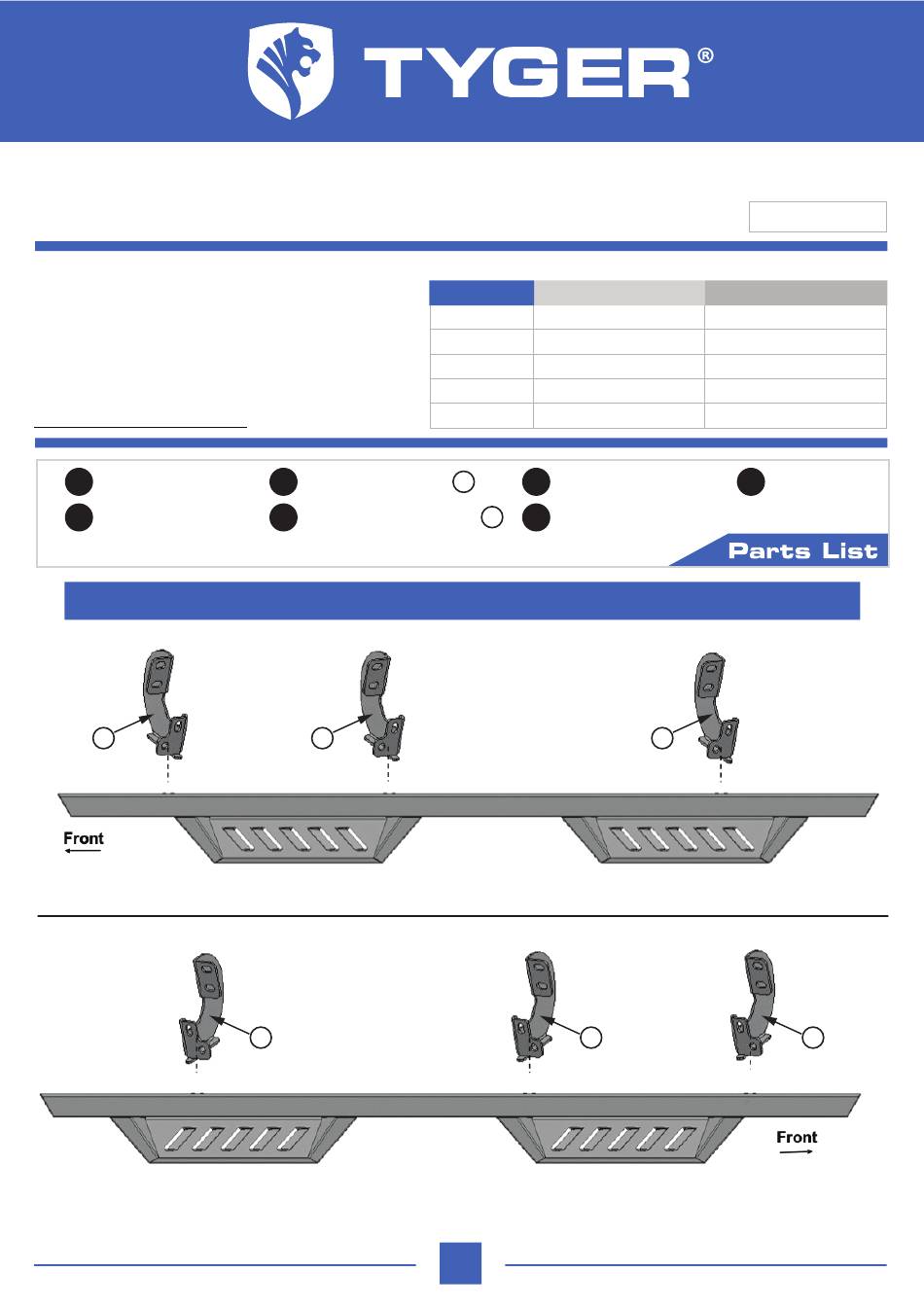

TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
Reference the letters printed on the brackets to determine mounting locations
A
Customer Support: www.tygerauto.com/contact
x3
Driver/Left Mounting Brackets
x3
Passenger/Right Mounting Brackets
A
Driver/Left TYGER LanderX
B
Passenger/Right TYGER LanderX
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
A
x12
8-1.25mm x 25mm Combo Bolts
B
x12
8mm x 24mm x 2mm Flat Washers
B
1/4
TG-LX3N82398
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
x12
8mm Flange Nuts
A
6-7
B
V230802
Advertisement
Related Manuals for Tyger LanderX TG-LX3N82398
Summary of Contents for Tyger LanderX TG-LX3N82398
- Page 1 78-79 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left TYGER LanderX Driver/Left Mounting Brackets 8-1.25mm x 25mm Combo Bolts 8mm Flange Nuts Passenger/Right TYGER LanderX Passenger/Right Mounting Brackets 8mm x 24mm x 2mm Flat Washers...
- Page 2 TYGER LanderX Bottom View ATTENTION: Refer to the D or P labelling on the tubes to determine the Driver or Passenger side steps. XX-D Front Driver/Left LanderX XX-P Front Passenger/Right LanderX PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 3 STEP 5 Carefully unwrap the TYGER LanderX. Select the Passenger/Right TYGER LanderX. Note “P” on back of tube. Carefully position the TYGER LanderX up to the (3) Brackets. IMPORTANT: DO NOT slide, (front to back or rotate), the TYGER LanderX against the Brackets or damage to the finish may result.
- Page 4 Rear Mounting Bracket (Fig 8) Passenger/Right Side TYGER LanderX attached to Front Mounting Bracket STEP 6 Level and adjust the TYGER LanderX and tighten all hardware. (4) 8mm x 25mm Combo Hex Bolt assemblies STEP 7 Repeat STEPS 1-6 for Driver/Left TYGER LanderX installation.
