Tyger LanderX Manual

TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

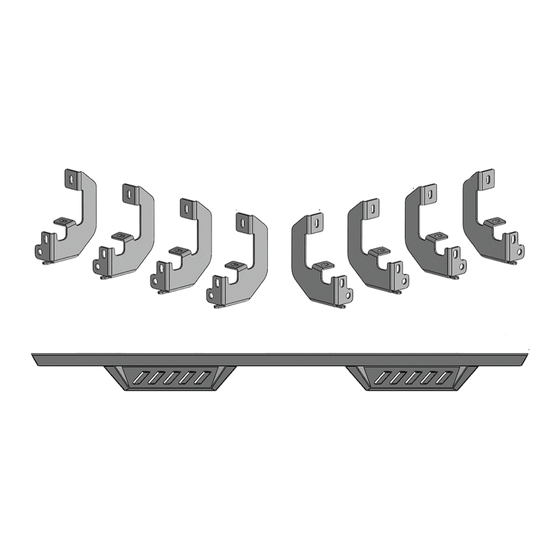

Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Front/Rear Upper Mounting Brackets
x4
Front/Rear Lower Mounting Brackets
x4
(2) Center Support Brackets
Driver/Left TYGER LanderX
Customer Support: www.tygerauto.com/contact
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
Center Mounting Brackets
x2
Center Support Brackets
x2
8mm x 25mm Hex Bolts
x8
8mm x 25mm Combo Bolts
x12
(2) Center Mounting Brackets
(4) Front/Rear Lower Mounting Brackets
1/3
Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
8mm x 24mm OD x 2mm Flat Washers
x20
8mm x 16mm OD x 1.6mm Flat Washers
x16
8mm Nylon Lock Nuts
x28
(4) Front/Rear Upper
Mounting Brackets
TG-LX3D82358
6-7
22-23
44-45
78-79
125-126
V230511
