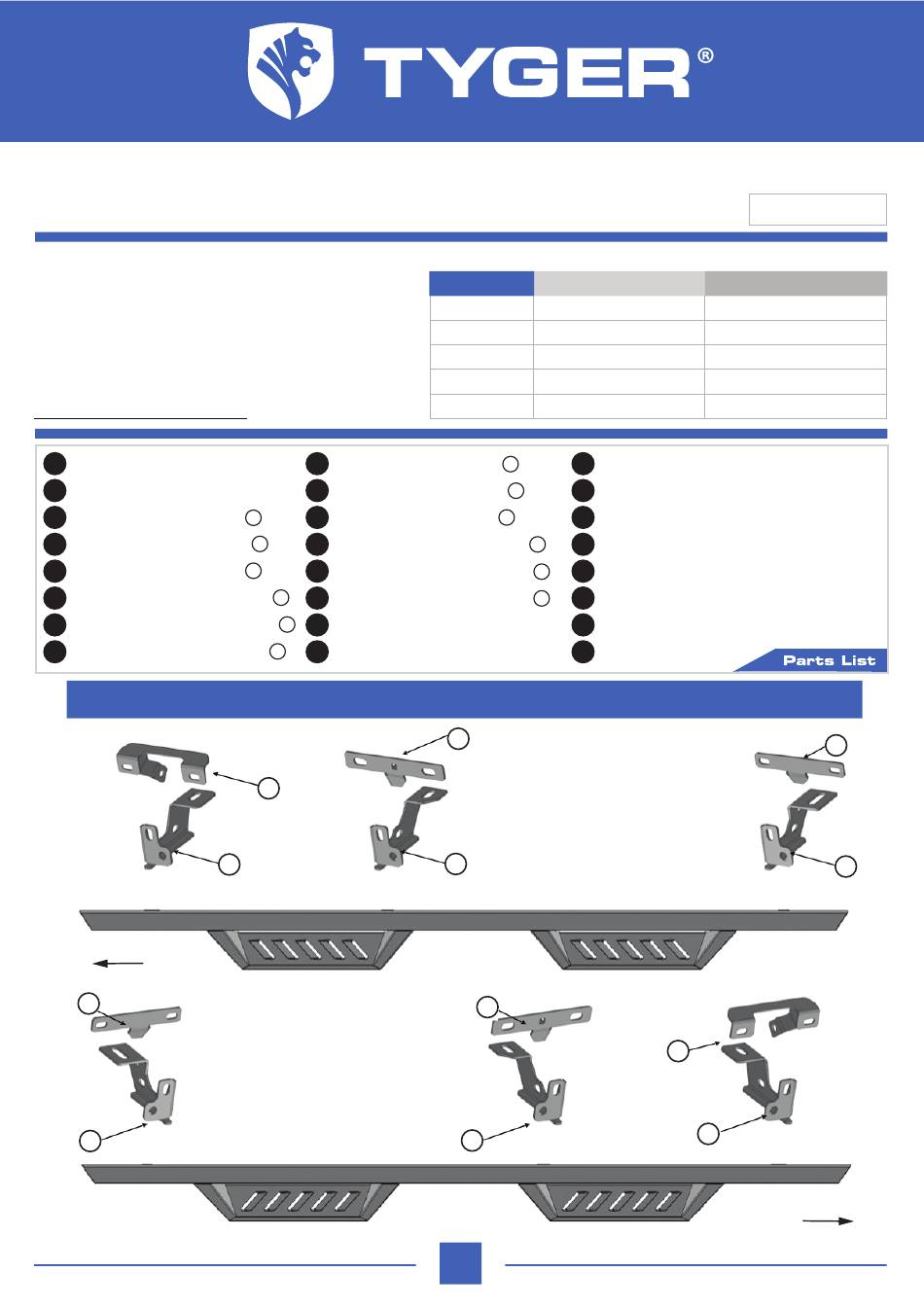

BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Driver/Left Front Mounting Bracket
x1
Driver/Left Center Mounting Bracket
x1
Driver/Left Rear Mounting Bracket
x1
Passenger/Right Front Mounting Bracket
x1
Passenger/Right Center Mounting Bracket
x1
Passenger/Right Rear Mounting Bracket
Reference the letters printed on the brackets to determine mounting locations
Front
L
F
Passenger/Right TYGER LanderX
Customer Support: www.tygerauto.com/contact
x1
Driver/Left Front Support Bracket
x1
Driver/Left Center Support Bracket
A
x1
Driver/Left Rear Support Bracket
B
x1
Passenger/Right Front Support Bracket
C
x1
Passenger/Right Center Support Bracket
D
x1
Passenger/Right Rear Support Bracket
E
x6
10-1.5mm x 30mm Hex Bolts
F
x12
10mm x 24mm x 2.2mm Flat Washers
G
A
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
G
x6
10mm Nylon Lock Nuts
H
x12
8-1.25mm x 25mm Combo Hex Bolts
I
x6
8-1.25mm x 35mm Hex Bolts
J
x6
8mm x 28mm x 3mm Flat Washers
x6
K
8mm Lock Washers
L
x12
6-1.0mm x 25mm Hex Bolts
x24
6mm x 22mm x 2mm Flat Washers
x12
6mm Nylon Lock Nuts
H
B
Driver/Left TYGER LanderX
K
E
1/5
TG-LX3J82378
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
J
D
6-7
I
C
Front
V230630
