TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x3
Driver/Left Mounting Brackets
x1
Passenger/Right Front Upper Mounting Bracket
x1
Passenger/Right Front Lower Mounting Bracket
x2
Passenger/Right Center/Rear Mounting Brackets
x1
8mm x 35mm Bolt Plate
Reference the letters printed on the brackets to determine mounting locations
Customer Support: www.tygerauto.com/contact
x11
8mm Clip Nuts
x12
8-1.25mm x 25mm Combination Hex Bolts
A
x1
8-1.25mm x 40mm Hex Bolt
D
x12
8-1.25mm x 25mm Hex Bolts
B
x1
8mm x 28mm x 3mm Large Flat Washers
C
x12
8mm x 24mm x 2mm STD Flat Washers
x13
8mm Lock Washers
A
Driver/Left TYGER LanderX
C
Passenger/Right TYGER LanderX
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
x1
A
C
1/8
TG-LX3C82438
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
8mm Nylon Lock Nut
A
D
B
6-7
V230914
Advertisement
Related Manuals for Tyger LanderX TG-LX3C82438
Summary of Contents for Tyger LanderX TG-LX3C82438

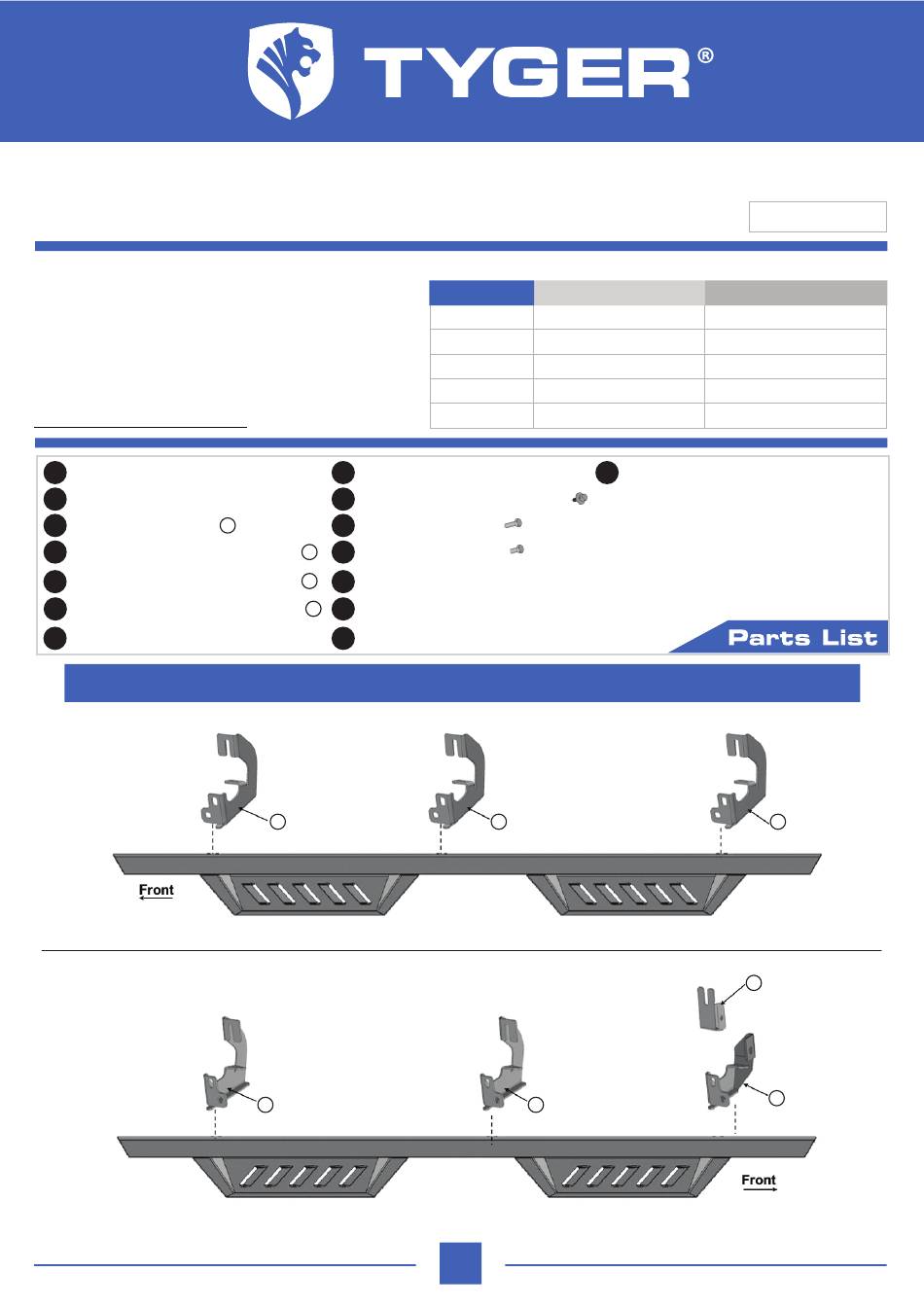

- Page 1 78-79 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left TYGER LanderX 8mm Clip Nuts 8mm Nylon Lock Nut Passenger/Right TYGER LanderX 8-1.25mm x 25mm Combination Hex Bolts Driver/Left Mounting Brackets 8-1.25mm x 40mm Hex Bolt Passenger/Right Front Upper Mounting Bracket 8-1.25mm x 25mm Hex Bolts...
-
Page 2: Bottom View
TYGER LanderX Bottom View ATTENTION: Refer to the D or P labelling on the tubes to determine the Driver or Passenger side steps. XX-D Front Driver/Left LanderX XX-P Front Passenger/Right LanderX PROCEDURE: STEP 2 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. - Page 3 TYGER LanderX For the top mounting location on the side of the body panel. Models with factory installed threaded insert in body panel: Thread 8mm Hex Bolt into threaded insert to clear paint as Factory 8mm threaded required (Figs 2 & 3).
- Page 4 LanderX. Note “D” on back of tube (Fig 8). Carefully position the TYGER LanderX up to the (3) Brackets. IMPORTANT: DO NOT slide, (front to back or rotate), the TYGER LanderX against the Brackets or damage to the finish may result. Attach the TYGER LanderX to the Brackets with (6) 8mm x 25mm Combo Hex Bolt assemblies (Figs 8-12).
- Page 5 TYGER LanderX Passenger/Right Side Installation Pictured Remove the (2) bolts securing the tank straps to the vehicle (Fig 14). Tilt the straps to release straps from the brackets. Slowly lower the tank until the top of the tank is almost visible. Use blocks...
- Page 6 TYGER LanderX (1) 8mm x 40mm Hex Bolt Passenger/Right Side Installation Pictured (1) 8mm Lock Washer (1) 8mm x 28mm Large Flat Washer (Fig 17) Passenger/right side mounting (Fig 19) Models with welded nut on pinch weld, locations from back of body panel...
- Page 7 STEP 14 (1) 8mm x 25mm Hex Bolt (1) 8mm Lock Washer (1) 8mm x 24mm STD Repeat STEPS 6 & 7 to attach the Passenger/Right TYGER LanderX Flat Washer (Figs 24-28). Passenger/Right Side Installation Pictured Passenger/Right Side Installation Pictured...
- Page 8 (Fig 29). Use a sharp knife or hacksaw blade to carefully cut a slot in the plastic cover to clear the 2nd Bracket (Fig 30). mark pictured is (Fig 26) Attach the Passenger/Right TYGER approximately LanderX to the center and rear Brackets...
